| Prod Model: |

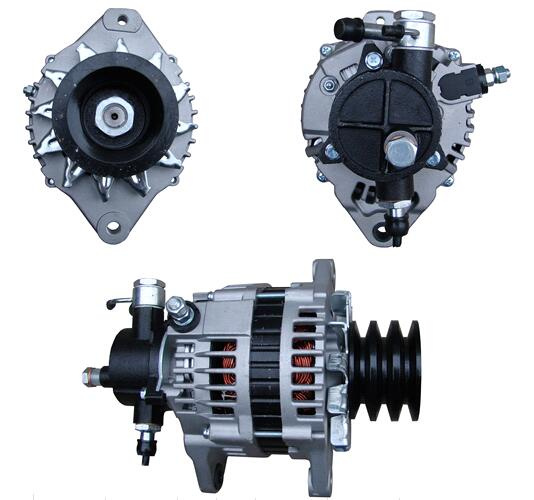

Lester 12536 LR1110501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Alternator: |
12V 100A |
| Rotation: |
Cw |
| Output Tested: |
12.8V |
| Regulator Voltage Set Point: |
14.5 ± 0.3 V |
| Net Weight: |
8.6 Kg |
| Rectifier Structure: |
Six Tubes |
| Current Level: |
9(',≥90A) |
| Bonding Type Of Magnetic Field Winding: |
Inner Bonding |
| Brushless Alternator Type: |
Magnetizing Type |
| Voltage Adjuster Type: |
Electromagnetic Vibratory |
| Voltage: |
12V |
| Head Cover Position: |
Front |
| Brand: |
Mitsubishi |
| Structure: |
Cw |
| Type: |
Alternator |
Product Description
| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 110 |
| Pulley Class | V3 |
| Regulator | IR |
| Fan Type | EF |
| Manufacturer | HITACHI |
| Brief | CHEVROLET/GMC W3500, W4500 2003-06 w/4.8L 4HE1
CHEVROLET/GMC W3500, W4500 2005-06 w/5.2L 4HK1
ISUZU NPR 2003-06 4.8L 4HE1
ISUZU NPR 2005-06 5.2L 4HK1
ISUZU NQR 2003-04 4.8L 4HE1
ISUZU NQR 2005-06 5.2L 4HK1
ISUZU NRR 2005-06 5.2L 4HK1
3-V PULLEY 82mm OD |
| MFG# | MFG NAME |
|---|
| AHI0145 | ARROWHEAD |
| LR1110-501BAM | ARROWHEAD (OEM) |
| LR1110-501BR | ARROWHEAD (OEM) (OLD) |
| 12536 | LESTER |
| 204-226 | PIC |
| A-80176 | DIXIE |
| 97729118 | GENERAL MOTORS |
| LR1110-501 | HITACHI |
| 2902768400 | ISUZU |
| 8972482970 | ISUZU |
| 8972482971 | ISUZU |
| 400-44066 | J & N |
| 12536N | WAI |
| 90-25-1148 | WILSON |
| 90-25-1148 | WILSON HD |
| MAKE | TYPE | MODEL | YEAR | ENGINE |
|---|
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W3500 Tiltmaster | 2003 | Isuzu 4.8L - 4HE1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W3500 Tiltmaster | 2004 | Isuzu 4.8L - 4HE1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W3500 Tiltmaster | 2005 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W3500 Tiltmaster | 2006 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W4500 Tiltmaster | 2003 | Isuzu 4.8L - 4HE1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W4500 Tiltmaster | 2004 | Isuzu 4.8L - 4HE1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W4500 Tiltmaster | 2005 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W4500 Tiltmaster | 2006 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W4500 Tiltmaster | 2007 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500 Tiltmaster | 2003 | Isuzu 4.8L - 4HE1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500 Tiltmaster | 2004 | Isuzu 4.8L - 4HE1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500 Tiltmaster | 2005 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500 Tiltmaster | 2006 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500 Tiltmaster | 2007 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500HD Tiltmaster | 2004 | Isuzu 4.8L - 4HE1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500HD Tiltmaster | 2005 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500HD Tiltmaster | 2006 | Isuzu 5.2L - 4HK1 Engine |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | W5500HD Tiltmaster | 2007 | Isuzu 5.2L - 4HK1 Engine |
| ISUZU | Medium-Duty Trucks | NPR | 2003 | Isuzu 4.8L - 4HE1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR | 2004 | Isuzu 4.8L - 4HE1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR | 2005 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR | 2006 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR-HD | 2003 | Isuzu 4.8L - 4HE1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR-HD | 2004 | Isuzu 4.8L - 4HE1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR-HD | 2005 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR-HD | 2006 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NPR-HD | 2007 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NQR | 2003 | Isuzu 4.8L - 4HE1 Diesel |
| ISUZU | Medium-Duty Trucks | NQR | 2004 | Isuzu 4.8L - 4HE1 Diesel |
| ISUZU | Medium-Duty Trucks | NQR | 2005 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NQR | 2006 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NQR | 2007 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NRR | 2005 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NRR | 2006 | Isuzu 5.2L - 4HK1 Diesel |
| ISUZU | Medium-Duty Trucks | NRR | 2007 | Isuzu 5.2L - 4HK1 Diesel |
| AEP Number | AEP (OEM) | PART TYPE |
|---|
| BRG0014 | ND949100-2790 | BEARING - ROLLER |
| BRG0025 | 35-5200E | BEARING - ROLLER |
|
| COVER - MISC. ALT. |
| AHI1605 |
| INSULATOR - ALT. B+ STUD |
| AHI1292 |
| RECTIFIER |
| AHI6082 |
| REGULATOR w/BRUSHES |
| AHI2600 |
| SEAL - S.R.E. FRAME |
| AHI3502 |
| SLIP RING |
| AHI4014 |
| STATOR |
|
| TEST LEAD |
We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.
Production Equipment:
The armature and stator are produced by automatic equipment.
Inspection equipment:
We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.
Armature, stator, solenoid switch and the starter assembly are all 100% inspected.
Whole set laboratory equipment:
We have whole set laboratory equipment for the starter performance test.
Market share:
We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.
Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.
9. After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------
Over 90% parts produced by our own factory
Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product
Major product family:
Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
Market (%):
North America 60%; Middle East 15%; Europe 15%; Local 10%.
We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.
Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949
Ningbo Hi-Tech Altering Motor Co., Ltd.
Factory established 1996.
Specialized in Heavy Duty diesel alternator and starter motor.
Warranty is one year after operation.
Delivery is 45 days after confirming the order.
NingBo Hi-Tech Altering Tech. Co., Ltd. Locates in Ningbo Hi-tech Zone, east of China and we are having specialized in alternator and starter motor industry since 2000. We have a full set of advanced equipments for production, inspection and testing. Now its annual production capacity is one million auto alternators and half a million auto starters. The company has a powerful R&D capability, which ensures it lead position of the manufacturing profession in the speed & quality of new products development.
The main products of ALTERING currently have over 50 series ( over 500 part numbers ) of auto alternators and auto starters, such as, PMGR, LUCAS, MARELLI, BOSCH, VALEO and so on, which are sold to America, Europe, Middle East, Southeast Asia, etc...We turnover ranks high in the manufacturing profession. The company is making efforts to expand business of aftermarket and OEM as well. Up to now, We have been a supplier of several domestic vehicle manufacturers.
We pursues the corporate philosophy of "quality first, prestige first" all the time, and keeps developing more and more new products. We welcome peoples of all circles to visit or call for business cooperation.
