12psdw Mini Diesel Pump Test Bench 6 Cylinder

Name: 12psdw Mini Diesel Pump Test Bench 6 Cylinder
Brand: ibuyautoparts.com
SKU: 708239242
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

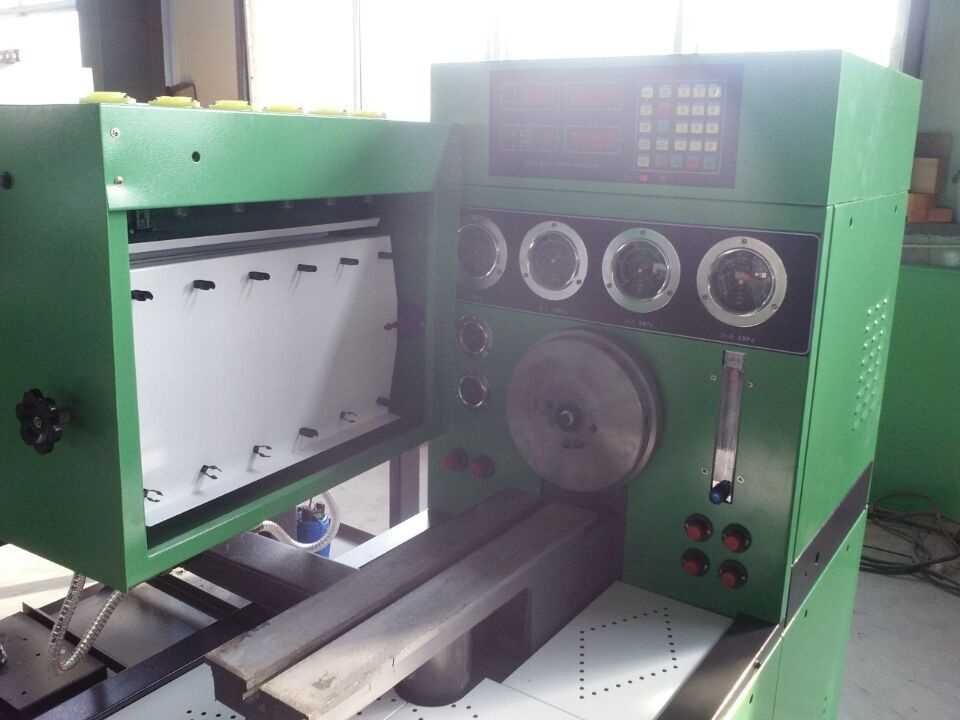

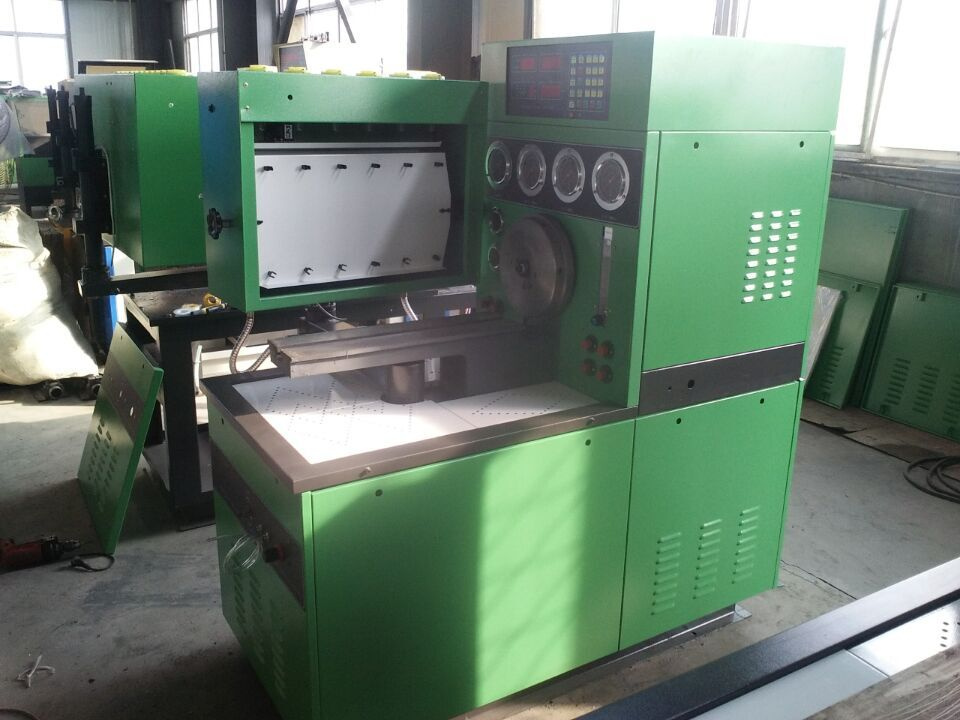

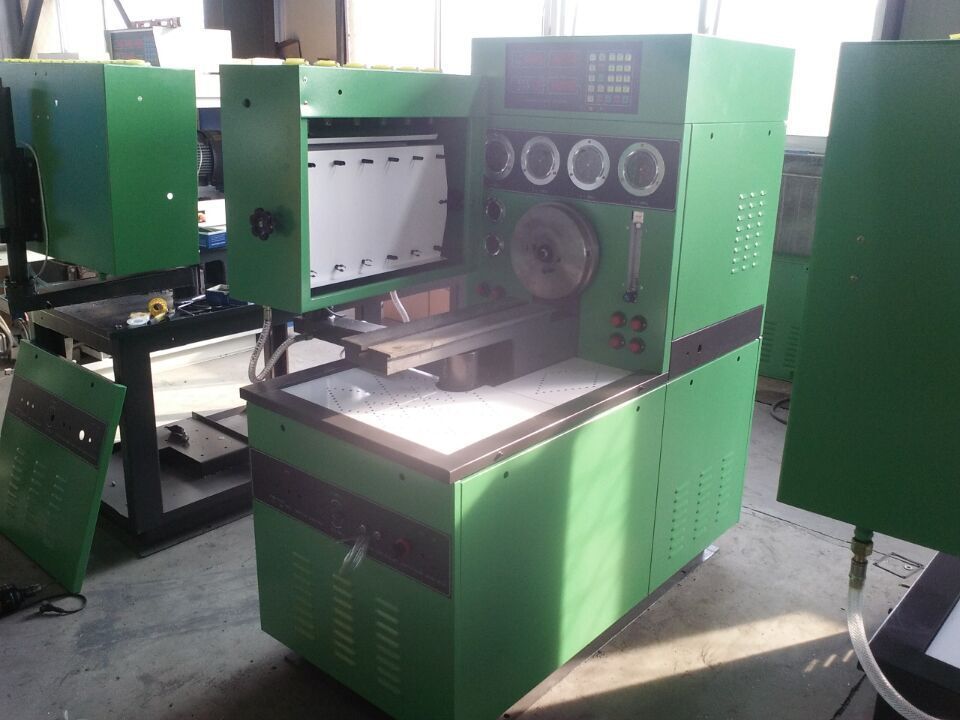

12PSDW Mini Diesel Pump Test Bench, 6 Cylinders

l Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump
12. Checking the travel of stroke (on request)
13. 17' LCD computer monitor two operating systems
14. Touch screen (based on request)

l II.3Technical Parameters

Specifications
No.	Items	Data
1	Main motor output power(kw)	7.5,11,15,18.5
2	Frequency Converter	Delta
3	Stroke Counting (Rpm)	50-9999
4	Standard injectors	ZS12SJ1
5	Power of fuel pump motor (kw)	0.75
6	Scope of rotate speed (r/m)	0~4000
7	Number of cylinders	12
8	Height of principal axis center (mm)	125
9	Filter oil precision of test bench(μ)	4.5~5.5
10	Volume of big and small volumetric cylinder(ml)	150 45
11	Volume of fuel tank(L)	40
12	DC power supply	12/24V
13	Low pressure of fuel oil pressure(Mpa)	0~0.6
14	High pressure of fuel oil pressure(Mpa)	0~6
15	Pressure Gauge for VE Pump (Mpa)	0-1.6
16	Pressure Gauge for VE Pump (Mpa)	0-0.16
17	Control temperature of fuel (°C)	40±2
18	Flywheel inertia(kg*m)	0.8~0.9
19	Scope of rack bar stroke(mm)	0~25
20	Measuring range of flow meter(L/m)	10~100
21	DC electrical source(V)	12 24
22	Positive pressure of air supply(Mpa)	0~0.3
23	Negative pressure of air supply(Mpa)	-0.03~0
24	Dimension of Packing ( LWH(m ))	2.421.141.73
25	Gross weight of Test bench( kg)	850-900
26	Color	GREEN, BLUE or any color

Prod Model:	12PSDW075C Mini
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test Equipment:	Common Rail Injector Tester Bench
Brand:	Fotma 12psdw
Function:	Testing Common Rail Injector, Bosch, Denso, Delphi
Color:	Blue, Yellow, Green
Warranty:	1 Year
Test Data:	More Than 1000PCS Test Data
Cylinder:	6 Cylinder
Certification:	ISO
Update Method:	by Email

Our company was established in 1978 as one of the oldest Chinese agricultural and construction equipment supplier in the overseas market and ISO9001 approved. Annual turn over is over 100 million US Dollars per year.

We supply 18HP-280HP tractor and tractor implements; construction equipment including LIUGONG wheel loader, XCMG wheel loader, truck crane, motor grader, skid steer loader, HC forklift, SD bulldozer, backhoe loader, reach stacker, etc. and its spare parts.

All products are not only well sold in China, but also to Southeast Asia, Middle East, Australia, Africa, Europe and America. In order to meet the requirement of international market, FOTMA will strive to upgrade our products and keep on innovation so as to provide perfect products and best service to the customers both from domestic and abroad.
