| Prod Model: |
12PSDW110A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Hubei, China (Mainland) |
| Brand Name: |
12psdw Pump Test Bench |
| Model Number: |
Advanced Type, 12psdw075A |
| Power: |
Electronic |
| Usage: |
Auto Testing Machine |
| Travel Type: |
Rack Travel |
| Color: |
Green, Blue, Red, Yellow or on Your Request |
| Test Bench Controller: |
by Computer |
| Certification: |
ISO |
| Update Method: |
by Hard Disk |
Product Description

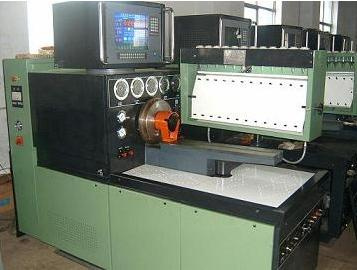

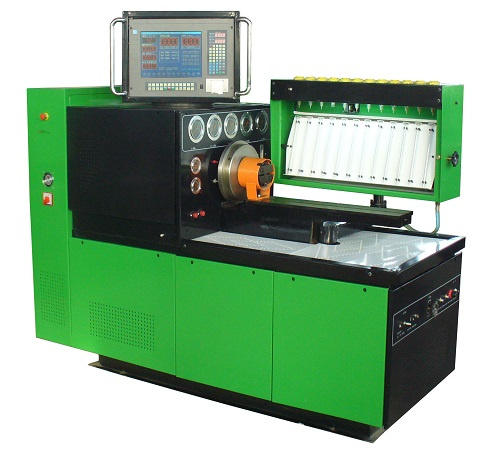

12PSDW DIESEL FUEL INJECTION PUMP TEST BENCH

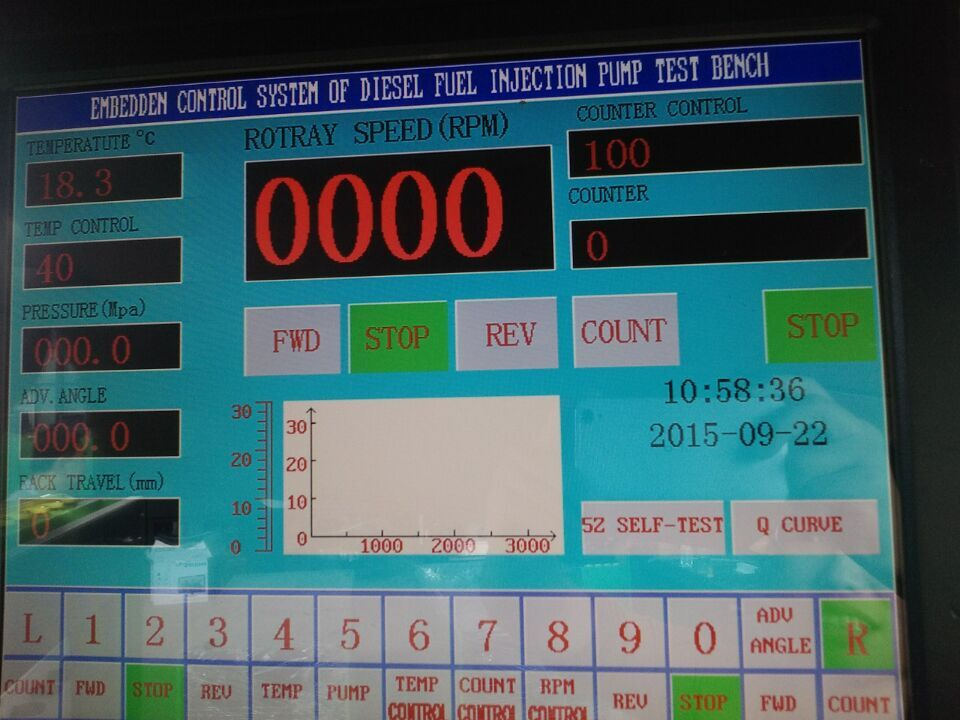

This Pump Test bench is digital displayed. And we also supply test bench with computer control.
This test bench Features:
| 1. Changing frequency changing rotation speed; |
| 2. Small fall of rotation speed and high output torque; |
| 3. High measurement precision, Ultra low noise; |
| 4. Over voltage, Overload and short circuit protection; |
| 5. Ten kinds of rotation speeds presetting; |
| 6. Constant temperature controlled; |
| 7. Rotation speed, count, advance angle and temperature are displayed in digits mode, and air pressure is displayed on the mechanical gauge; |
| 8. Built-in Air resource; |
| 9. Can be operated from both sides. |
Functions:
| 1. Measurement of each cylinder's delivery at various rotation speeds |
| 2. Checking each cylinder's injection starting position and delivery interval angle |
| 3. Checking and adjust the mechanical speed governor. |
| 4. Checking and adjusting the distributor pump. |
| 5. Checking and adjusting behavior of supercharging and compensatory device. |
| 6. Measurement of the reflux delivery of distributor pumps |
| 7. Checking the electromagnetic valve of distributor pumps. (12V/24V) |
| 8. Measurement of the distributor pump's body internal pressure. |
| 9. Checking the sealing of fuel injection pump body |
| 10. Install tube of auto-sucking oil supply can check on oil supply pump. (including VE pump. ) |
| 11. Measurement of advance angle |
Technical parameters:
| 1. Adjustable rotation speed range: 0~4000 RPM |
| 2. Test cylinders: 12. |
| 3. Rotation speed presetting: 10 kinds. |
| 4. Test Bench DC. Supply: 12/24V |
| 5. Test Bench Feeding pump motor: 1.1kw |
| 6. Series of graduate glass: 45cc, 150cc. The 260cc is optional |
| 7. Volume of oil tank: 60L |
| 8. Main shafts Center height: 125mm |
| 9. Flywheel inertia's moment: 0.8kg. M2, |
| 10. Stoke counting: 50-9999 |
| 11. Control temperature of fuel oil (): 40+2 |
| 12. Feed oil pressure: Low pressure 0-0.4MPa, high-pressure 0-4Mpa. |
| Internal pressure: 0-0.16MPa, 0-1.6MPa. |
| 13. Rotation direction of Main shafts: Clockwise or Anticlockwise |
| 14. Packing dimension: Approx. 4.5M3 CBM |
| 15. Packing weight: Approx. 900kg |
| 16. Test Bench Output power: 5.5kw, 7.5kw, 11kw and 15 kw or on request |
| 17. Test Bench 3-phase power supply: 380v/50hz or on request. |
| 18. Test Bench Color available: Green, blue, red, yellow or on request. |
In additon, we have test bench EXTRA COOLING SYSTEM, lubricating oil system for your optional choice.
If you are interested in such kind pump test bench, just contact us!
