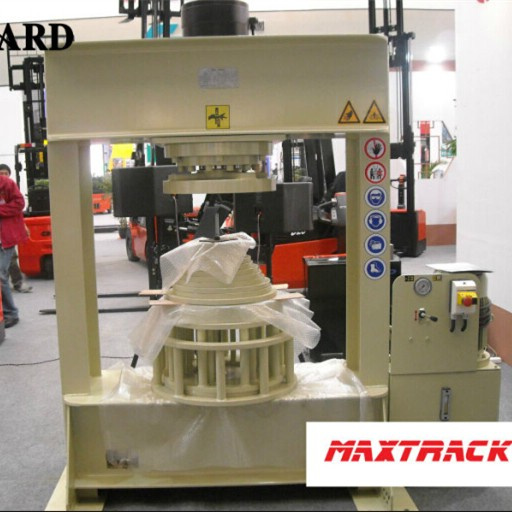

120ton Solid Forklift Tire Press Machine Wiith Arm Lifting

Solid tire press machine, forklift tire press machine. With CE certificate.

                                                                                 L-GUARD
L-Guard tires corp is a well-established rubber-product enterprise, combining the most advanced design, processing technology and complete quality guarantee system. We have already formed L-GUARD forklift tyres series as follows:
1. Standard solid tyre
2. Cushion solid
3. Click solid tyre for Linde forklift
4. Non-marking solid tyre
5. Pneumatic tyre
6. Forklift rim
7. Tyre press machine for forklift tyre

Our suppliers have extended the EUROPE, AUSTRALIA, AMERICA, AFRICA, ASIA, and CHINA mainland ect.

About us
Our factory specializes in producing solid tires. We have a history of more than 10 years with high quality and good service. We located in Qingdao, China. All our tyres are three stages with steel rings in it. We have exported to almost all of the world, such as Spain, Singapore, Japan, South Africa, Chile, Australia and so on. Our brand is "L-GUARD". If you're interested in our products, welcome to contact me and I will reply you as soon as possible. Looking forward to being your realiable and strategic parterner.


Our suppliers have extended the EUROPE, AUSTRALIA, AMERICA, AFRICA, ASIA, and CHINA mainland ect.

Model		TP80	TP120	TP160	TP200		TP80	TP120	TP160	TP200
Max Hydraulic Pressure	Ton	80	120	160	200	lb	176000	264000	352000	440000
Max Tyre Dimension	mm	381	508	508	508	inch	15	20	20	20
Total Length	mm	1640	2090	2090	2090	inch	64.6	82.3	82.3	82.3
Total Midth	mm	700	850	850	930	inch	27.6	33.5	33.5	36.6
Total Height	mm	2170	2210	2210	2210	inch	85.4	87	87	87
Operating Pressure	Mpa	21	25	33	33	Mpa	21	25	33	33
Cylinder Stroke	mm	400	400	400	400	inch	15.7	15.7	15.7	15.7
Oil Tank Capacity	L	30	30	30	30	L	30	30	30	30
Motor	kw	5.5	5.5	7.5	11	hp	7.37	7.37	10.1	14.7
Weight	kg	1100	1510	1610	2110	lb	2420	3322	3542	4642
Tyre Press
Item	Model	Description
1	TP80	Max. Capacity 80 Ton, W/O Toolings, Manual operation
2	TP120	Max. Capacity 120 Ton, W/O Toolings, Manual operation
3	TP160	Max. Capacity 160 Ton, W/O Toolings, Manual operation
4	TP200	Max. Capacity 200 Ton, W/O Toolings, Manual operation
Toolings
1	TOOL-I	Tooling suitable to II rims, Size 8" -15"
2	TOOL-II	Tooling suitable to II rims, Size 8" -20"
3	TOOL-III	Tooling suitable to IV rims, Size  8" -15"
4	TOOL-IV	Tooling suitable to IV rims, Size  8" -20"
