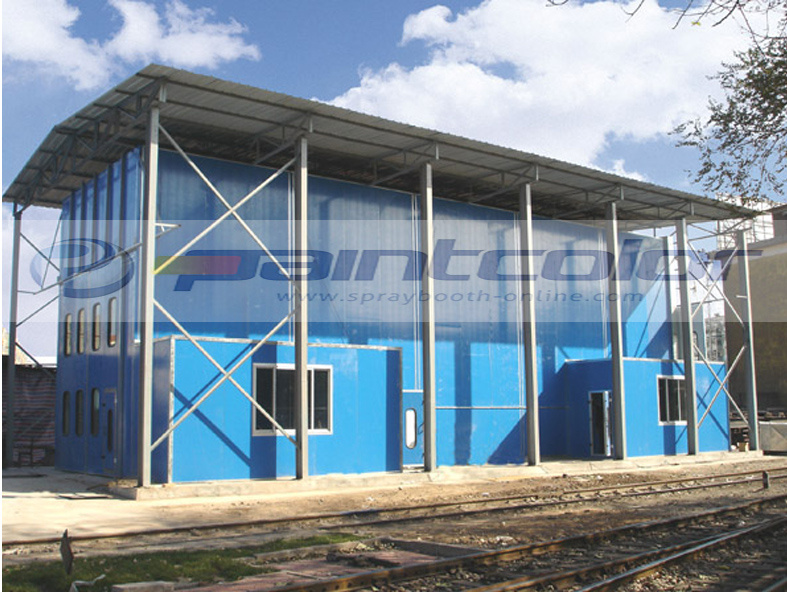

12.8m X 5.4m X 4.34m Paint Booth
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
PC-LSB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |
| Voltage Requires: |
380V/3p, 220V/3p Or220V/1p |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Diesel |
| Airflow Direction: |
Fully Undershot-type |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Large Spray Booth |
| Brand: |
Paintcolor |
Product Description
Paintcolor Spray Booth Paint Oven Booth 12.8m X 5.4m X 4.34mAny booth size request can be met!!!Paintcolor company quantifies the production of standard spray booth; at the same time, "one-to-one" service is our important and special sale method and service. For different countries and the special requirements of different customers, we make the design and produce the booth based on the size of the site, the workpiece, the type of paint and the budget level. It really 100% stands on your point to solve all the problems. Paintcolor is the one specialty spray booth manufacturer you can not miss.Specification1) Outside dimension: 13006*7456*5140mm(L*W*H);2) Inside dimension: 12800*5400*4340mm(L*W*H);3) Basement: no basement, but one side air ciuculation;4) Front main door: 4-fold( 4 leaf), 3600*3700 mm (W*H);Middle main door: electric rolling door, 5000*4000 mm (W*H);Back main door: 4-fold( 4 leaf), 3600*3700 mm (W*H);Personal door: 700*2000 mm (W*H);2pcs5) Wall Panels: thickness is 100mm, and insulation is rock wool panel;0.476mm double skinned sheet;Roof plate:thickness is 50 mm, and insulation is rock wool panel;0.476mm double skinned sheet;6) Lighting: Ceiling Lights: 16Groups*4Pcs=64Pcs *36W;Side Lights: 18Groupsx2Pcs=36Pcs x36W; Philip tube;7) Glass: all glass is toughened glass;8) Generator: back upper intake air, back upper extract air, quadrate steel frame, coated steel;9) One set intake and exhaust air system, totally 4 sets: Intake fans: YDW centrifugal fan, per capacity: 20000m3/h, motor: 7.5kw, totally 4 intake fans, The total intake air volume is 80000m3/h;Exhaust fan: 4-82-6.3E fan, per capacity: 30000m3/h, motor: 15kw, totally 2 exhaust fans, The total exhaust air volume is 60000m3/h;The total air exhaust pipe is 10m straight, 2 manual dampers and 2 elbows;The empty load air speed: ≥0.3m/s10) One set heating system, totally 2 sets: RIELLO FS20 gas burner (one stage), heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle, 20N actuator; 11) Filtering system: Maze paper filter, pre-filter, high efficiency filter (ceiling filter), floor filter, bag filter, active carbon filter;12) Control box: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, emergency stop, failure alarm, temperature control meter;The Voltage Require: 380V, 3PH, 50HzThe Total Power: 65KW
Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.
Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.
The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.
We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.
We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
