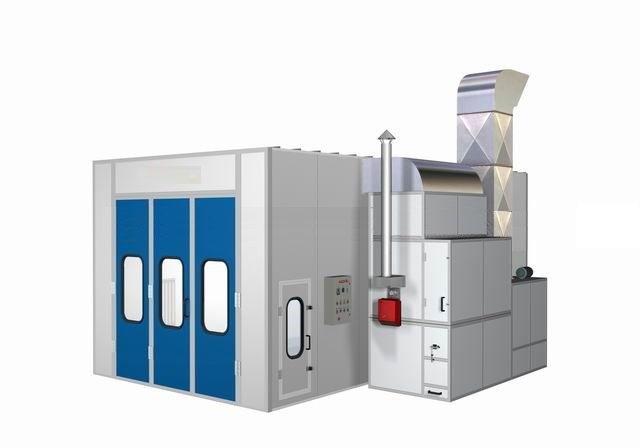

10m Mini Bus Spray Booth Paint Chamber Bake Paint Booth
| Price: |
US $ 9800-21800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
customized size |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size(Lxwxh): |
10000X4000X3500mm |
| External Size(Lxwxh): |
10150X5600X4100mm |
| Foundation And Floor: |
2 Rows Air Exhust Plenum Chamber |
| Wall: |
75mm EPS Panel with 0.5mm Steel |
| 3-Folded Entrance Door: |
1 Unit, 3500X3400 mm(Wxh) |
| Operator's Door: |
1unit, 650X2000 mm(Wxh) |
| Lighting System: |
48PCS Ceiling Lights, 28PCS Side Lights |
| Intake Air System: |
2X5.5kw Double-Intake Centrifugal Fans |
| Exhaust Air System: |
1X7.5kw Double-Intake Centrifugal Fans |
| Heating Type: |
Riello Rg5s |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Product Description
We are the professinal manufacturer of spray booth, and we can customize for you. Tag: Water Spray Booth, Spray Bake Paint Booth
| Booth Dimension |
| - Internal Size(L×B×H) | 10000x4000x3500mm |
| - External Size(L×B×H) | 10150x5600x4100mm |
| Foundation and Floor |
| - Grid | 2 rows air exhust plenum chamber |
| - Metal Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air, with galvanized grids made by twisted steel and flat bar above |
| Wall and Door |
| - Steel Wall | Double construction with insulationsEPS , thickness 75mm, 0.5mm steel thickness ;
width:950mm, tongue and groove interlock structure,
with Polystyrene(EPS) insulation inside |

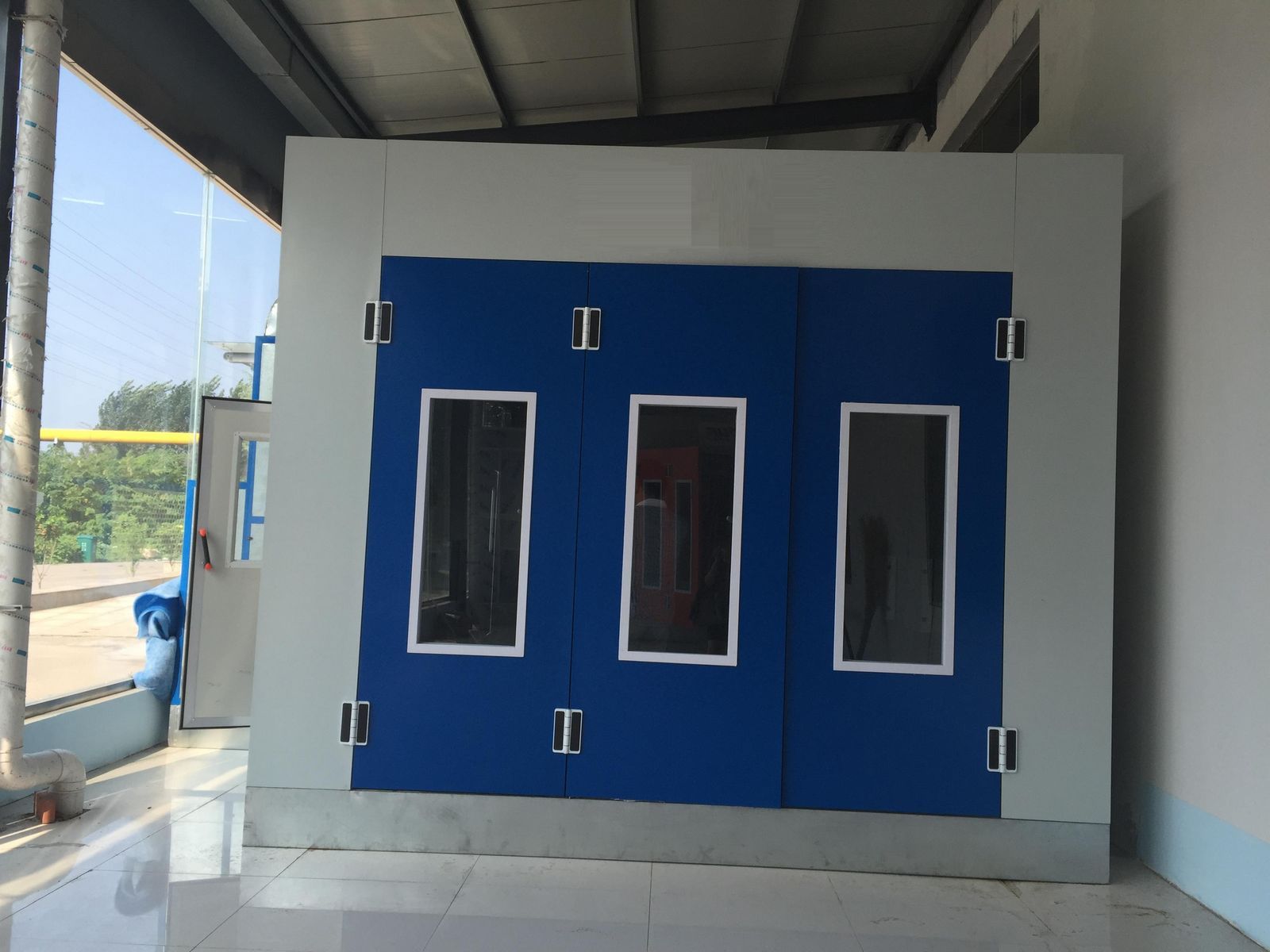

- 3-Folded Entrance Door
With Safety Glass Window | 1 Unit, 3500×3400 mm(WxH) , galvanized steel cover frame,
with polystyrene(EPS) insulation inside |
- Operator's Door With
Safety Glass Window | 1Unit, 650×2000 mm(W×H) |
| Lighting System |
| - Ceiling Lights | 12Units, each 4×36 W, with electronic ballasts. |
| - Side Lights | 14Units, each 2×30W, with electronic ballasts. |
| - Brightness | >1000LUX |
| Filter System |
| - Filter | 31M2 |
| Ventilation System |
- Intake air system
(Fresh Air) | 2x5.5KW double-intake centrifugal fans for intake air, model is YDW4.5M,
total air capacity is 30000m3/h |
- Exhaust
air system(Exhaust Air) | 1x7.5KW double-intake centrifugal fans for exhaust air, external motor, belt-drive, model TAE-710H, air capacity is 20000m3/h |
| - Damper actuates | Manual damper actuates from spraying to baking cycle, manual damper for exhaust air |
| Heating System |
| - Heating Exchange | Stainless Steel |
- Heating
Exchange Capacity | 260000Kcal/h |
- Max. Drying
Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60) by Drying Phase |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )1set |
| Control Box |
| - Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,
thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
hour meter, temperature limit controller, pressure gauge, exhaust reduction
voltage motor start |
| - Total power | 22KW |
