| Prod Model: |
SC60 |
| Product Name: |
Autel Autolink Al519 |
| Autel Al519 Language: |
English |
| Autel Al519 Update: |
Free Update Online |
| Autel Al519 Delivery Time: |
2 Working Days After Payment |
| Autel Al519 Warranty: |
One Year |
| Original: |
100% Original Autel Scanner |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
Product Description

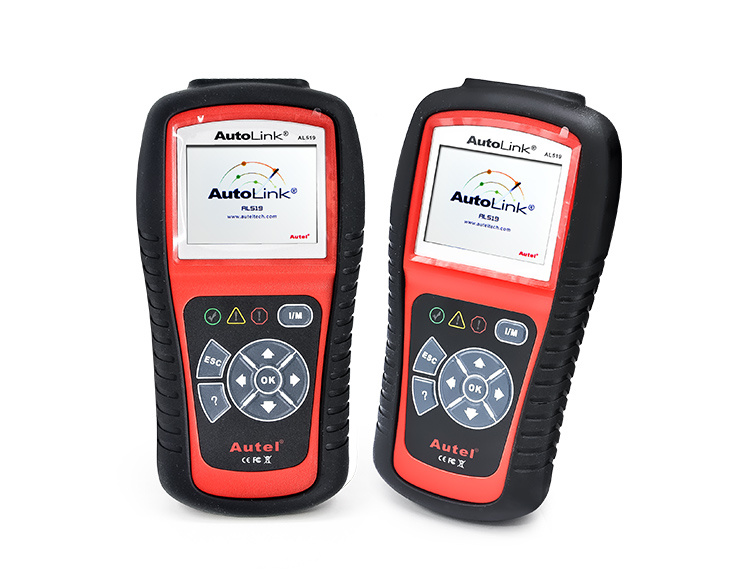

Autel AL519 with Color Screen OBDII/CAN Scan Tool Auto Code ScannerTop 7 Reasons To Get AUTEL AutoLink AL5191.Supported Language:(Basic Language:English, French and Spanish, Portuguese, German, Polish, Italian)
2.Works on ALL 1996 and newer vehicles (OBDII & CAN) - domestic and import
3.Internet updateable
4.Autel AutoLink AL519 featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, it is the best partner for your car repairing.
5.Easily determines the cause of the Check Engine Light(MIL)
6.Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
7.Multilingual menu and DTC definitions - English, Spanish and French, etc.
NEXT GENERATION OBDII&CAN SCAN TOOL AUTEL AutoLink AL519
The AutoLink AL519 OBDII/EOBD Scanner supports all 10 modes of OBDII test for a complete diagnosis.Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, the AutoLink AL519 is truly the ultimate in power and affordability, allowing users to do their jobs faster.In addition, thousands of troubleshooter code tips help technicians to save diagnosis and repair time.
AL519 Features:
1.Features the unique patented One-Click Readiness Key for quick State
2.Emissions readiness check and drive cycle verification
3.Bright color coded LEDs and built-in speaker provide both visual and
4.Audible tone for readiness verification
5.Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
6.Easily determines the cause of the Check Engine Light(MIL)
7.Turns off Check Engine Light (MIL), clears codes and resets monitors
8.Displays DTC definition on the TFT color screen
9.Views freeze frame data
10.Displays monitor and I/M readiness status (emissions)
11.Reads live PCM datastream
12.Displays live O2 sensor test data
13.Graphs data (1996 and newer vehicles)
14.Reads, stores and playbacks live sensor data
15.Enhanced OBDII Mode 6
16.Troubleshooter code tips guide technicians to the root cause of a 17.Trouble code faster, saving diagnosis and repair time
18.Retrieves vehicle information (VIN, CIN and CVN)
19.Multilingual menu and DTC definitions
Parameter| Display | TFT color display (320 x 240 dpi) |
| Operating Temperature | 0 to 60°C (32 to 140 °F) |
| Storage Temperature | -20 to 70°C (-4 to 158 °F) |
| External Power | 8.0 to 18.0 V power provided via vehicle battery |
| Length\Width\Height | 199 mm (7.83")\104.5 mm (4.11")\37.5 mm (1.48") |
| Weight | 0.28kg (0.75lb, without wire) or 0.484kg (1.3lb, with wire) |
Packing List
·1 x Auto Link® AL519
·1 x User's manual
·1 x CD
·1 x USB cable
·1 x OBDII Cable
·1 x Carry case
