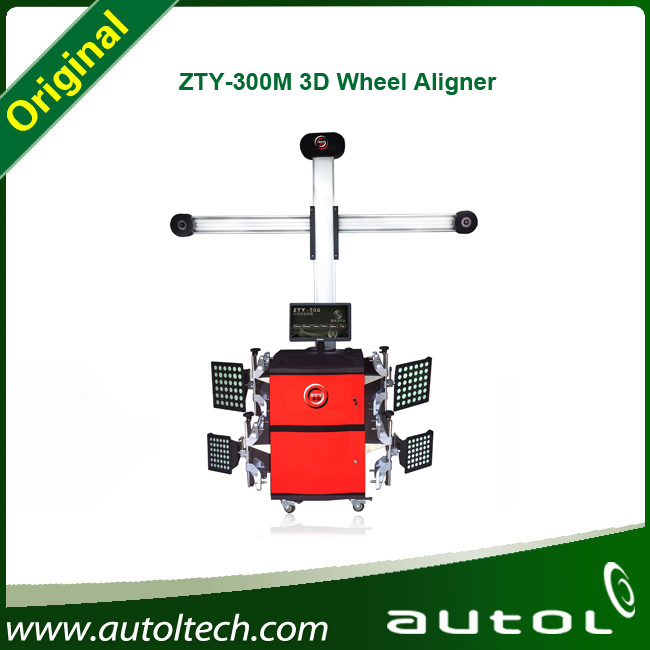

Zty-300m Wheel Alignment Automatic Tracking Deluxe Edition

ZTY-300M Automatic tracking Deluxe Edition

3D Wheel Alignment
Dynamic constitute coordinate, no affected by the inclination of lift
Automatic tracking Target, testing on all height

Product advantage:
1 Independent intellectual property rights, hold invention and utility patents
2 Superiority on technology, have more than 3 ten years specialist
3 Specializing 3D wheel alignment R & D, more reliable, more cost-effective
4 Dynamic constitute coordinate, no affected by the inclination of lift
5 Quick, select moderolling run-outcaster swingresult, quick one step.
6 None waiting during rolling or caster swing, save test time
7 Automatic calculate wheel diameter, no manual input.
8 Industry best camera and optical system.
9 A wide range of wheel clamp, clamp 10~23 inch rim
10High precision anti-throwing target, Reinforced plastic enclosure, Laser fabrication,
Unique L recognition motifs
11 Friendly interface, The unique manufacturer search function
12 Perfect additional measurement
13 Real-time check target picture

Technical data:

Measurement itemAccuracyAccuracy rangeMeasurement range
Camber± 2´ ± 2° ± 20°
Toe± 2´ ± 2° ± 20°
Caster± 4´ ± 10° ± 20°
SAI± 6´ ± 15° ± 20°
Thrust± 2´ ± 2° ± 10°

Display accuracy: 0.01 / 1' / 0.1mm / 0.1inch

Environmental requirements:
Ambient temperature: -10~50°
Relative hnmidity: ≤ 85%
