Prod Model: |
1/8 inch(3.2mm) |
Product Name: |
Hydraulic Hose |
Working Pressure: |
10 MPa |
Burst Pressure: |
55 MPa |
Temperature Range: |
-40 to 120 Degree |
OEM Services: |
Yes |
Delivery Time: |
15 Day After Payment |
Whip Test: |
35 Hours |
Standard: |
SAE J1401 |
Color: |
Black |
Surface: |
Stripe |
Type: |
Brake System |
Certification: |
DOT |
Position: |
Front and Rear |
Material: |
Rubber with Fittings |
Product Description

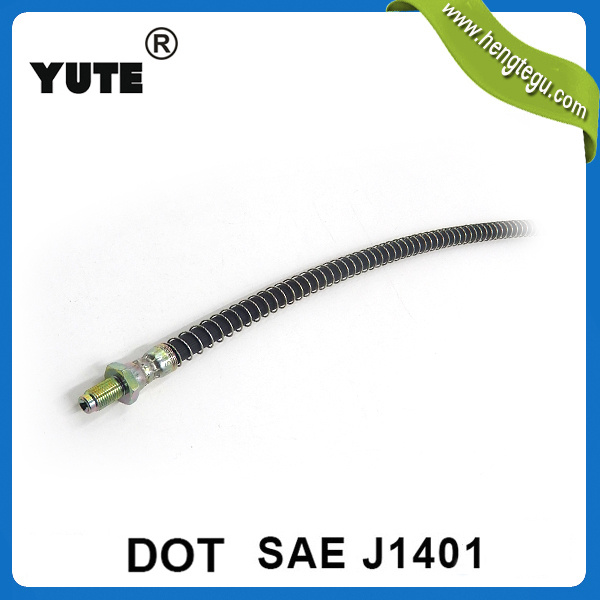

YUTE SAE j1401 Approved Hydraulic Hose Lines in Brake System
Size and technical parameters:
Application:
A flexible conduit manufactured for use in a brake system to transmit and contain the fluid pressure medium used to apply force to the vehicle's brakes.
Construction:
Tube:Special rubber formula with perfect brake fluid compatibility
Reinforcement: High tensile braided fiber.
Cover: Black weather-,aging-resistant synthetic rubber
Working Temperature:-40ºC~+120ºC, -40 ºF~ +248ºF
Standard: SAE J1401
No. | I.D | O.D | W.P | B.P |
inch | mm | Tolerance (mm) | inch | mm | Tolerance (mm) | Bar | PSI | Bar | PSI |
1 | 1/8 | 3.2 | ±0.2 | 13/32 | 10.5 | ±0.3 | 100 | 1450 | 490 | 7000 |
Features:
Tensile strength>=1600 N
Whip test>=35H
Low expansion meet"-HL"
Supper low expansion amount to meet:
6.9MPa<=0.33cm3/m
10.3MPa<=0.42cm3/m
Excellent performance,safe and reliable.
The surface of metal parts is treated with:
Electroplate with white zinc for salt spray test for 48h but no base metal corrosion.
Electroplate with zinc-nickel alloys for salt spray test for more than 1000h but no base metal corrosion.
The surface has been environmental treated,meet ROHS requirement.
Packing:
1.Every 50 or 100 in a cotton.
2.According to customer requirements.
Logistics:
Shipping and Air transport
Trade Shows:
Automechanika Shanghai
AAPEX Show
Automechanika Frankfurt
More information visit :
www.hengtegu.com
http://hengtegu.en.alibaba.com
http://auto-rubber-hose.com
Our Services
1. OEM Manufacturing
2. Accept sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Contact Us:
Tel: +86-0574-62056986
+86-0574-62056985
Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. It's located in Ningbo, Zhejiang Province. The transportation is convenient, 40 minutes away from the Hangzhou International Airport and one and a half hours away from Ningbo shipping port. As a manufacturing enterprise, we are engaged in the research and development of rubber hose's design, manufacturer and sales. We have been trying our best to invest in our people, technology and resources to make it easier for you to do business with us.
Now the factory owns sets of advanced cold rubber compound feed production lines and completed testing equipments. Our factory have passed the ISO/TS16949 quality management system certification, the products' quality meets SAE & DIN standard.
Main products: Fuel hose, air brake hose, hydraulic brake hose, power steering hose, rubber air hose, rubber air hose assembly and refrigerant charging hose, are widely used in the auto, engineering machinery, HAVC and other industries. Best quality and competitive price, we will try our best to provide you with good service. You are recognized for every dollar you spend with us.
Our business philosophy: Unitive and harmonious, hardworking and enterprising, regard technology as the core, offer cost-effective products to serve customers.
