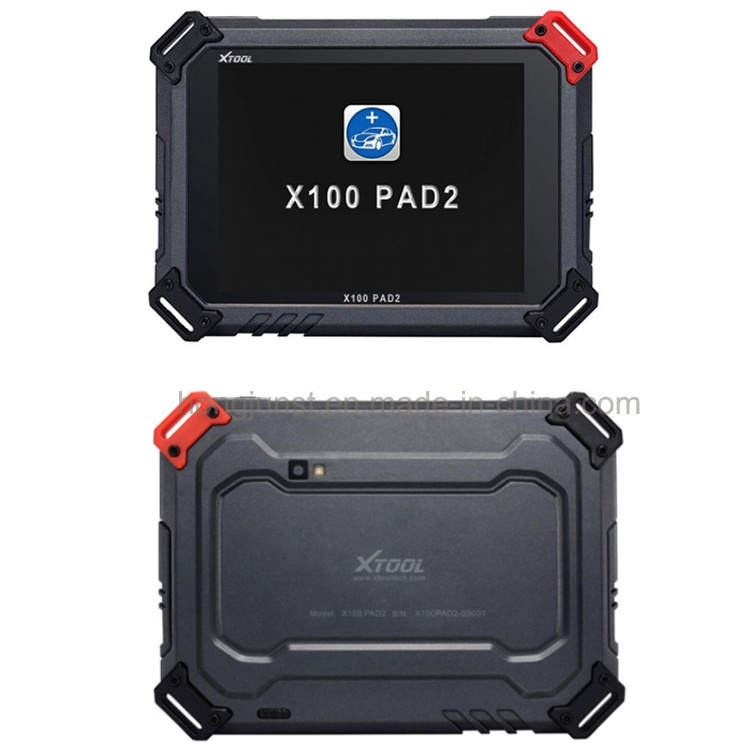

Xtool X-100 PAD2 Tablet Key Programmer
1. Brand: Hongjun
2. Part Name: tablet key programmer
3. Min. order: 1 set
4. Leading time:3~6working days
X-100 PAD2 Description:
is the first tablet key programmer in the world ! It not only provides customers with professional key programming, but also the most needed special functions for workshop. X-100 PAD 2 is a tablet with the latest technologies to performkey programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis.
Notice: Not Support Indian Cars.
Features:
Key Programming
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
DPF
PIN Code Reading
Hexadcimal editor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI (always equip your device with the latest software)
Specifications:
Operating System: | Android 4.4.4 |
Memory: | 1GB RAM,16GB Flash |
CPU | Quad Core, 1.6 GHz |
Display | 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
Sensors: | Gravity Sensor, Light Sensor |
Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
Battery: | 4000mAh, 7.4V |
WIFI | WIFI 2.4Ghz |
Bluetooth | 100 Meters |
Power Voltage: | 12V |
Power Consumption: | 29.6W |
Operating Temperature: | -20 to 50ºC(-4 to 126ºF) |
Humidity: | <90% |
Dimension: | (L*W*H): 240*177*30mm |
Each area will contain the all the brand this device can do, here is the list:
America:
For Buick, For Cadillac, For Chevrolet, For Dodge, For GM, For GMC, For Hummer, For Pontiac, For Saturn, For Ford
Asia:
For Acura, For Honda, For Hyundai, For Infiniti, For Isuzu, For KIA, For Lexus, For Mazda, For Mitsubishi, For Nissan, For Ssangyong, For Subaru, For Suzuki, For Toyota
China:
For BYD, For Great Wall Motor, For Brilliance, For JAC, For Geely Cars, For Lifan Cars, For Chery
Europe:
For Audi, For Benz, For Citroen, For Ford, For Fiat, For Jaguar, For Lancia, For Land Rover, For Opel, For Peugeot, For Porsche, For Renault, For Romeo, For Seat, For Skoda, For Smart, For VW
One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!
Remote access, which is perfect for training, demonstration and even remote diagnosis.
Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.
Key Programming Features:
1.New keys programming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
2.Reads keys from immobilizer's memory
3.New immobilizer programming
4.Vehicle Identification Number programming
5.Reset ECM & reset immobilizer
6.New remote controller programming
7.With full and strong database for the most important vehicle makes
Oil Reset Functions Features:
Innovative one-click oil reset for VW, for Audi, for BMW, for Mercedes Seat, for Skoda, for Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Support for Mercedes Benz new C Class, E Class models and for Mercedes Benz VITO/VIANO/SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
Support for Porsche Cayenne, Panamera till 2012
Support maintenance light reset for Volvo, for Land Rover.
EEPROM Adapter Features:
- 1. PIN Code Reading
- 2. ECU Initializing
- 3. Chip Programming
Four system diagnosis:
Packing list:
Type | Name | QTY |
Test Connectors | OBD II-16 | 1 |
for HONDA-3 | 1 |
for KIA-20 | 1 |
for MAZDA-17R | 1 |
for HYUNDAI/KIA-10 | 1 |
for Main Cable(DB15_Male To VGA_Male) | 1 |
Main Units | X-100 PAD 2 | 1 |
DC12V(AC100~240V) 3ACharger | 1 |
US Power Adapter | 1 |
EU Power Adapter | 1 |
EEPROM | 1 |
USB Type-C to Mini USB cable | 1 |
Type-C cable | 1 |
Accessories | Certificate of Quality | 1 |
Packing List | 1 |
User Manual | 1 |
