Product Description
ITEM | ITEM NO | PACKING | SIZE (CM) | CBM (M3) | G.W. (KGS) | DESCRIPTION | SPECIFICATION |
|
|
1 | CB-500 | CARTON | 1*0.74*1.24 | 0.918 | 147 | kinds of balancing,suitable for different wheel structure;many optional ways of tyre-positoning;self-calibration program;ounce/gram conversion;unbalance value displayed accurately and the postion to add the standard weights is indicated definitely.hood actuated auto-start | motor power: 110v/220v/380v 250w max.wheel weight: 65kg rim width: 1.5"-20" rim diameter: 10"-24" balancing accuracy: ±1g measuring time: 6-9s noise: <70dB |
|
2 | CB-530 | CARTON | 0.98*0.76*0.97 | 0.723 | 141 | kinds of balancing,suitable for different wheel structure;many optional ways of tyre-positoning;self-calibration program;ounce/gram conversion;unbalance value displayed accurately and the postion to add the standard weights is indicated definitely.hood actuated auto-start | motor power: 110v/220v/380v 250w max.wheel weight: 65kg rim width: 1.5"-20" rim diameter: 10"-24" balancing accuracy: ±1g measuring time: 6-9s noise: <70dB |
|
3 | CB-550 | CARTON | 0.98*0.76*0.97 | 0.723 | 130 | kinds of balancing,suitable for different wheel structure;many optional ways of tyre-positoning;self-calibration program;ounce/gram conversion;unbalance value displayed accurately and the postion to add the standard weights is indicated definitely.hood actuated auto-start | motor power: 110v/220v/380v 250w max.wheel weight: 70kg rim width: 1.5"-20" rim diameter: 10"-24" balancing accuracy: ±1g measuring time: 6-9s noise: <70dB |
|
4 | CB-580 | CARTON | 0.9*0.7*1.17 | 0.737 | 136 | kinds of balancing ways,suitable for different wheel structure;many optional ways of tyre-positoning;self-calibration program;ounce/gram conversion;unbalance value displayed accurately and the postion to add the standard weights is indicated definitely.hood actuated auto-start | motor power: 110v/220v/380v 250w max.wheel weight: 70kg rim width: 1.5"-20" rim diameter: 10"-24" balancing accuracy: ±1g measuring time: 6-9s noise: <70dB |
|
5 | CB-800 | CARTON | 0.98*0.7*1.12 | 0.768 | 159 | split weight indicator for hiding weights;automatic tyre diameter and distance measuring;many balancing ways for different structure;many optional wheel-positoning ways;self-calibration program to ensure a long service life;ounce/gram conversion;unbalance value displayed accurately and the postion to add the standard weights is indicated definitely;protective hood(optional) | motor power: 110v/220v/380v 250w max.wheel weight: 65kg rim width: 1.5"-20" rim diameter: 10"-24" balancing accuracy: ±1g measuring time: 6-9s noise: <70dB |
|
6 | CBL-860 | CARTON | 0.98*0.8*1.29 | 1.011 | 159 | dynamic and static balancing;standard ALU;ALU-S balancing;OPT function;hiding indicator;unit conversion mm/inch;automatic gauge;automatic putting sticker weight;automatic self-calibration and checking system;LCD figure direction;hood protector(optional) | motor power: 220v/50HZ 240w rim width: 1.5"-20" rim diameter: 10"-26" tyre diameter: <840mm balancing accuracy: ±1g measuring accuracy: ±1g measuring time: 6-9s noise: <70dB |
|
7 | CBL-890 | CARTON | 0.98*0.8*1.19 | 0.93296 | 166 | split weight indicator for hiding weights;LED monitor;operation menu in multi-languages(English,French,German and Italian);automatic gauge;self-calibration and full-automatic diagonosis applied;kinds of balancing ways for different wheel structures;multi optional positioning ways;optional unbalance value accuracy(1gram-10gram;with optimization function;ounce/gram conversion | motor power:110v/220v380v 250w max.wheel weight: 65kg rim width: 1.5"-20" rim diameter: 10"-24" balancing accuracy: ±1g measuring time: 6-9s noise: <70dB |
|
8 | CB-1200 | CARTON | 1.22*0.98*1.27 | 1.399 | 368 | suitable for different small,medium,and large tyres;self-calibration program;ounce/gram conversion;unbalance value displayed accurately and the postion to add the standard weights is indicated definitely.hood actuated auto-start,full automatic pneumatic lift for lifing the big size wheel;automatic pneumatic brake working | motor power:380v/550w max.wheel weight: 160kg rim width: 3"-20" rim diameter: 10"-26" tyre diameter: 48" balancing accuracy: ±1g /±5g measuring time: 9-12s air supply: 0.4-0.8mpa noise: <70dB |
|
9 | CB-1280 | CARTON | 1.22*0.98*1.27 | 1.339 | 467 | suitable for different small,medium,and large tyres;no belt driving;self-calibration program;ounce/gram conversion;unbalance value displayed accurately and the postion to add the standard weights is indicated definitely.hood actuated auto-start,full automatic pneumatic lift for lifing the big size wheel;automatic pneumatic brake working performance;manual locks positioning to make opertion more convinient | motor power:380v/550w max.wheel weight: 200kg rim width: 3"-20" rim diameter: 10"-26" tyre diameter: 50" balancing accuracy: ±1g /±5g measuring time: 9-12s air supply: 0.4-0.8mpa noise: <70dB |
|

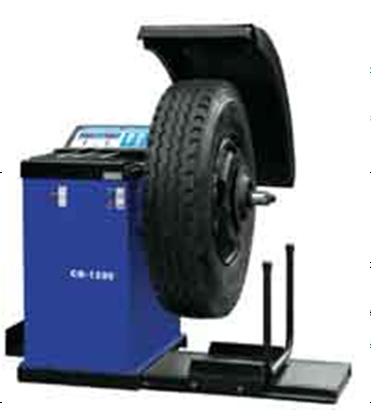

TYRE BALANCER CB1200 |
Use RANGE | Automotive repairing company |
Transportation company, motorcade |
Tyre specialized service station |
Rim width | 38.1~508mm |
Rim diameter | 330.2~609.6mm |
Max. wheel diameter | 1200mm |
Max. wheel weight | 150kg |
Balancing program | Dynamic, static and ALU program |
Testing time | 8s |
Protection cover | (optional) |
Pneumatic built-in lift | Supplied |
Overall dimensions (width X length) approx | 1500*2000mm |
Power supply | 380.220V (optional) |
Machine weight approx | 248kg |
Standard accessories (supplied) | International universal standard flange |
| tapering (diameter range 40-285mm) |
| Wheel width calipers, Lock nut |
| Wheel ballast weight pliers |
Trade terms
1.Brand :L-GUARD
2.Payment terms:30% T\T in advance, 70% banlance against copy of B\L
3.Delivery time: within 25 days
