WDM Security 3G GPS 4CH Vehicle Car DVR Support Remote record Motion DetectionFeature*OSD Menu ,Linux System operation
*4 Channel Video/Audio Input ,1 Channel RCA Video Output,1 Channel RCA Audio Output
*1CH/4CH Display
*PAL/NTSC
*H.264 Compression, CIF/HD1/D1 optioanl
*Built-in G-Sensor
*Support 1 SD Card up to 128G
*Support Real Time Video Monitor ,Real Time GPS Track
*Support 3G(GSM,WCDMA, CDMA2000, TD-SCDMA)
*Support GPS Track Record ,Speed Record
*Support PC and iPhone ,Android Phone Monitor
*Built-in WIFI B/G/N
*Support GPS Track Record ,Speed Record
*Video Playback ,Speed and GPS Track playback
*Support PC Playback and (MDVR) Video Playback
*Support Update
*8-36V Input ;12V/2A Output
*woking temperature -20ºC--60ºC
Specification| Specification |
| Product Name | 4CHS 3G/WIFI Car Mobile DVR |
| Model No. | WDM-8504BH |
| Video |
| Project | Specification | Feature |
System
| Host Processor | Hi3512 |
| Operate System | Linux |
| Language | Chinese/English |
| User Interface | GUI, Support USB Mouse |
| Password | User password, administrator password two management |
| Video | Video Standard | PAL(625TVL, 50F/S); NTSC(525TVL, 60F/S) |
| Image Coding | H.264(Main Profile) |
|
| Monitoring quality | D1 |
| Video Resolution | CIF/D1 |
|
| Coding | 4CH Real Time |
| Decoding | 2CH D1 Real Time |
| Video Input | 4 Channel Video Input |
| Video Output | 2 Channel Video Output |
| Display | Support 1/4; Support alarm screen automatically switches |
| Audio | Audio Comression | ADPCM |
| Audio Input | 4 Channel Audio Input |
| Audio Output | 1 Channel RCA Audio Output |
| Recording Mode | Sound and Video Recording Synchronously |
| Voice intercom | Support |
| Video and playback | Recording mode | Manual, time, alarm, loop recording |
| Video bit rate | 64Kbps~1.5Mbps, 6 level optional |
| Audio bit rate | 8KB/S |
| Storage | Support 1pcs SD Card up to 128G |
| Video Search | By channel, time, recording type |
| Local Playback | file playback; 4-channel playback |
| ON/OFF | Boot mode | ACC, TIME |
| Shutdown mode | ACC delay shutdown, time off, hard disk lock off |
| Software Upgrade | Upgrade Mode | Manual upgrade, powered automatic upgrade |
| Upgrade Method | SD Card; wireless network |

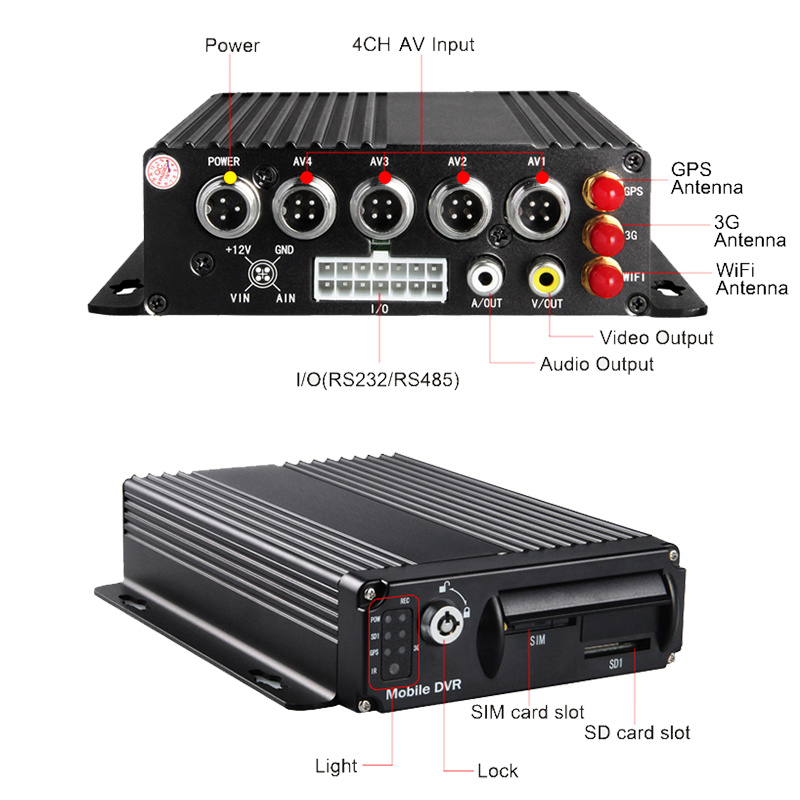

| Interface | Video Input | 4Channel Aviation |
| Video Output | 1Channel RCA |
| Audio Input | 4 Channel Aviation |
| Audio Output | 1 Channel RCA |
| Hard Disk Interface | 1pcs SATA Interface |
| USB Mouse | Support |
| Ignition signal | 1 |
| Alarm Input | 4 |
| Alarm Output | 1 |
| RS485 | 1 |
| RS232 | 1 |
| GPS | | GPS |
| 3G and WIFI | | 3G and WIFI |
| Supporting software | PC Playback Software | video files playing back on the PC side, parsing the video file IO signal superimposed, GPS information, etc |
| | CMS | Remote video preview through a wireless network, GPS upload, alarm and central command issued to upload, configuration parameters, and other functions |
| Others | Power Input | DC: 8V~36V |
| Power Output | +12V@2A; +5V@2A |
| Operating Temperature | -20ºC - 60ºC |
| Power consumption | Empty 3.6W, full 20W |

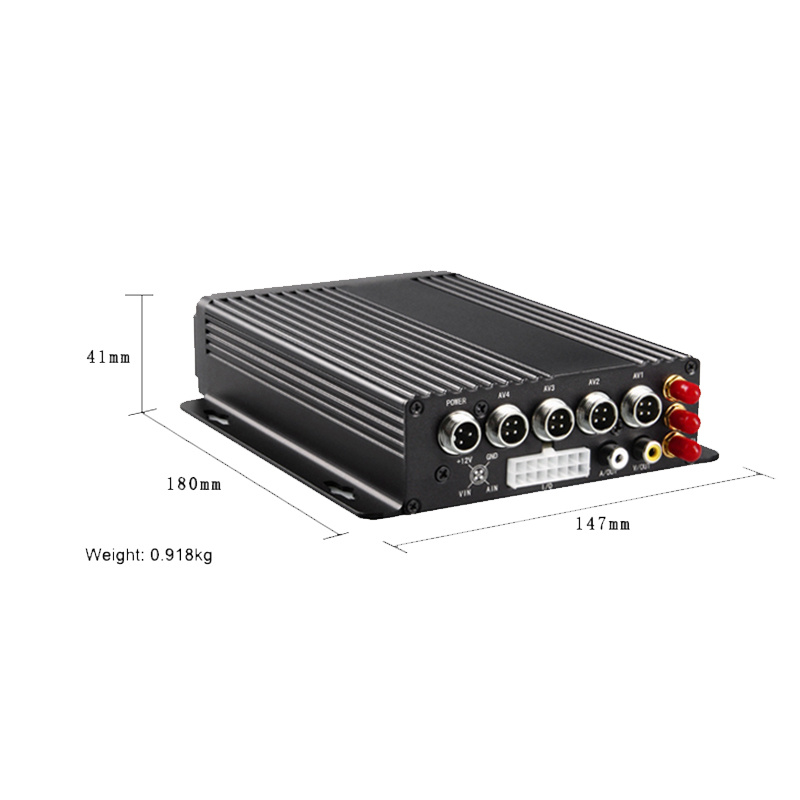

| Size | 180mm*147mm*41mm |
| Power Input | 8-36V | DC+8V~+36V, if lower than 8V, or higher than 36V, the MDVR will be shutdown, into protect status |
| Power Output | 12V | Output: 12v(+/-0.2v), max 2A |
| Key Signal | ≤4V | Key off |
| ≥5V | Key on |
| Video Input(Ω) | 75Ω | 75Ω/CH |
| Video Output | 2Vp-p | One 2Vp-p CVBS One 75Ω |
| I/O | 0-4V | Low voltage alarm |
| >4V | High voltage alarm |
| SD Card Slot | SD Card | 1,Support SD Card up to 128G |
| 2,Support upgrade |
| Temperature | -20ºC-60ºC | -20ºC-60ºC with good environment |
