Product features:

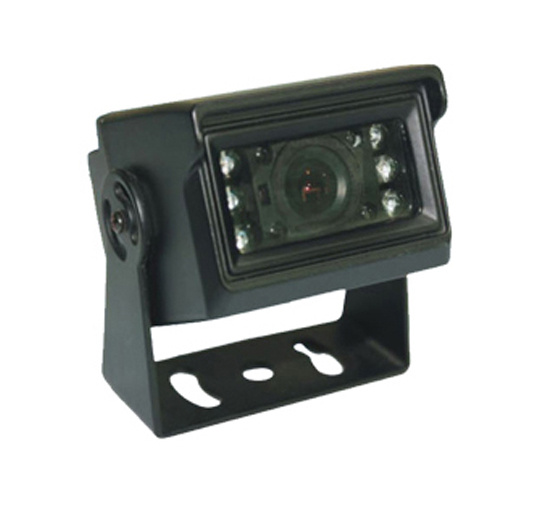

1. Standard rear view camera
2. PAL/NTSC, Normal/Mirror image optional
3. The automatic day/night sensor and infrared LEDs to provide clear image in dull condition.
Company brief introduction:
Shen Zhen Junson Security Technology Co. Ltd is a high-tech company who engaged in research & development, produce and sale. Our company devotes to design, produce and sale for many kinds of famous security systems such as access controller, electric bolt, electric-magnetic lock, power supply etc. All of the raw materials are imported, the craft of our products are excellent, and function steadily. We are also able to design the software for access controller management according to the customer's demands. Depending on the abundant technology and outstanding development staffs, the brand Junson has been established. Our products have been checked by National Public Security and Protection Department, we have got many certificates, such as CE, UL, FCC, etc.
Junson Security Technology Company paid much attention to the sale of the products in network. With the ingenious principle of management, the high quality of corporate culture, the justly manner of managerial style, we have achieved the brand of Junson today.
We promise that we will provide after sale service for all and we will regard honest management as the basis.
We can offer excellent technical supports and normative selling platform.
| Model | TV811N/P-D | TV833N/P-D | TV832N/P-D |
| CHIP BRAND | 1/4" SHARP CCD | 1/4" SONY CCD | 1/3" SONY CCD |
| EFFECTIVE PIXELS | PAL: 512× 582
NTSC: 512× 492 | PAL: 500× 582
NTSC: 510× 492 | PAL: 500× 582
NTSC: 510× 492 |
| RESOLUTION | 380TVL | 380TVL | 420TVL |
| SYSTEM | PAL / NTSC |
| SYNC. SYSTEM | INTERNAL |
| MINIMUM ILLUMINATION | 0LUX (IR LED ON) |
| S/N RATIO (AGC OFF) | 46 dB | 48 dB | 48 dB |
| WHITE BALANCE | ATW |
| GAMMA CORRECTION | 0.45 |
| EXPOSURE | PAL: 1/50-1/100, 000sec; NTSC: 1/60-1/100, 000 |
| GAIN CONTROL | AUTO |
| BACK LIGHT COMPENSATION | ON |
| IR LED(RANGE) | 6Pcs Wavelength λ =850nm (5M) |
| LENS TYPE | 2.6mmBoard Lens | 2.9mmBoard Lens |
| LENS ANGLE | 110° | 110° | 117° |
| VIDEO OUTPUT | 1 Vpp, 75 Ohms |
| WATERPROOF RATE | IP68 |
| OPERATION TEMP. | -20-60º C |
| SUPPLY VOLTAGE | DC9-16V | DC8-16V | DC8-16V |
| POWER CONSUMPTION | 1.5W(max) | 1.5W(max) | 1.5W(max) |
| DIMENSION | 76mm(L)*73mm(W)*65mm(H) |
| WEIGHT (g) | 280g |
