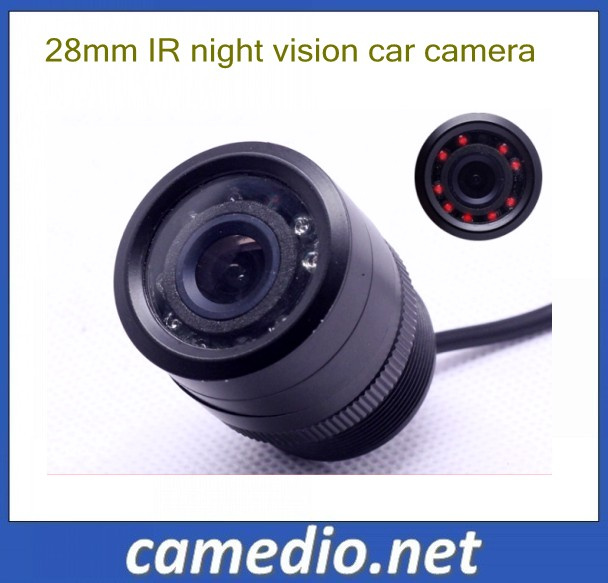

Waterproof Night Vision Bullet Car Camera for Car Reversing CMOS/CCD

Name: Waterproof Night Vision Bullet Car Camera for Car Reversing CMOS/CCD
Brand: ibuyautoparts.com
SKU: 690041482
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	US $ 6.2-6.8/Piece
Trade Terms:	FOB,EXW
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

*High-definition and wide degree viewing angle

*8pcs Infrared IR LED'S night vision

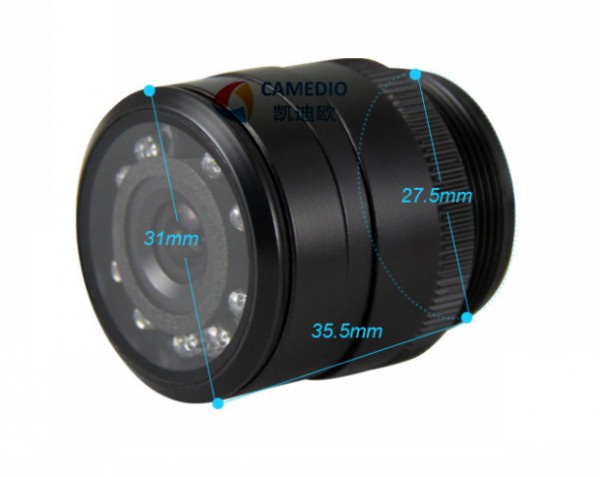

* Hole saw camera ,diammeter :28mm

*Versatile compatibility can be connected to most type of monitor

*Suitable for safety and security

*With good waterproof function

*Easy installation and can be installed in several ways

*Connected with your in-Car DVD Player or Rear View Mirror or GPS

*Parking distance on/off can be switched

Specification:

Image sensor:Color CMOS
TV system:NTSC/PAL
Effective pixels:658 x 462 Pixels/628 x 586 Pixels
Sensing area:5.961 x 4.276mm
Horizontal resolution:420TVL
Shutter speed:1/60-20us
Minimum illumination:0.2Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle:170°
White balance:Auto
Color:Black
Waterproof:IP67-IP68
Video output:1.0Vp-p, 75ohm
Current Consumption:No More 300mA
Power supply:DC 12V
Operating Temperature:-20°C~ 60°C, RH95% Max.
Storage temperature:-30°C ~ 60°C, RH95% Max.
Video cable length:6m
Power supply cable length:1.5m

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030/PC7070	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	720(H)*540(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto

Prod Model:	CM-328
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor Available:	PC7070/PC1089
Camera Degree:	170 Degree
Waterproof:	Yes
TV System:	PAL/NTSC
Minimum Illumination:	0.1lux
Pixels:	628X582
Resolution:	420tvl/480 Tvl/520tvl Optional
IR Lights:	8PCS
Warranty:	13 Months
Interface:	RCA
Chip:	CMOS
Waterproof Grade:	IP68
Definition:	480TV Lines
Probe Diameter:	28mm
