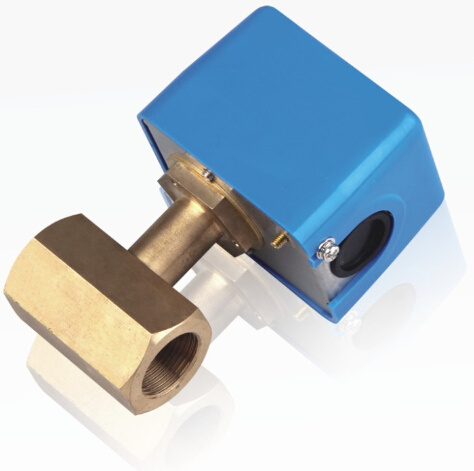

Water Pressure Measurement Transmitter Flow Switch(HTW-LKB-01D)
can be installed on the water pipe and in the liquid that is not corrosive to brass.It can be typically used to the location that have linkage function or liquid break protection. 1.Technical Sheet | Work pressure | 1.0 Mpa | Contact life | 1000K Cyc |
| Pressure | 1.75Mpa | Bellows life | 50K Cyc |
| Insulation resistane | >100W.DC500VM | Liquid Temp | Max 100 dgree |
| Voltage with stand | AC1500v/1 min | | |
2.Liquid Control Range | Type | Liquid Range(LPM) |
| (Inch) | Flow Direction piece | Min | Max |
| Open | Closed | Open | Closed |
| 1 | 1 | 15 | 8 | 45 | 41 |
| 1-1/4 | 1 | 26 | 13 | 75 | 68 |
| 1-1/2 | 1 | 29 | 20 | 105 | 94 |
| 2 | 2 | 34 | 17 | 120 | 105 |
| 2-1/2 | 2 | 60 | 34 | 210 | 188 |
| 3 | 2 | 68 | 30 | 288 | 275 |
| 4 | 3 | 128 | 64 | 412 | 360 |
| 5 | 3 | 225 | 113 | 750 | 652 |
| 6 | 3 | 345 | 172 | 1125 | 975 |
3.Design drawing

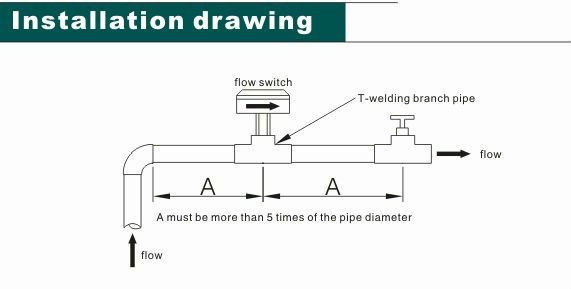

4.Installation drawing.

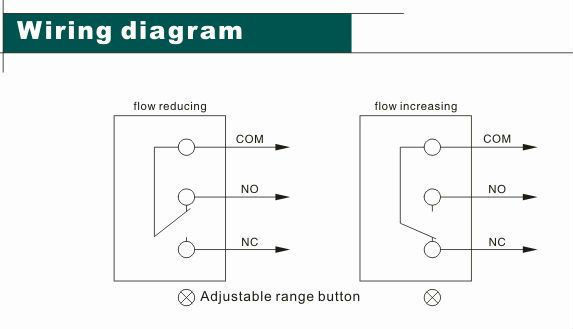

5.Wiring Diagram
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
