| Prod Model: |
GT1241Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
K18 Shaft and Wheel &Aluminium Alloy |
| Bearing Housing: |
Oil Cooled |
| Capacity: |
1000 CCM |
| Chra: |
Va860021 |
| Fuel: |
Diesel |
| Gross Weight: |
5 Kg/PC |
| Packing Size: |
20*20*20cm |
| Displacement: |
1.0L |
| Main Market: |
North America |
| Horse Power: |
82/101/130 Kw |
| Certification: |
SGS |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Brand: |
Refone |
Product Description

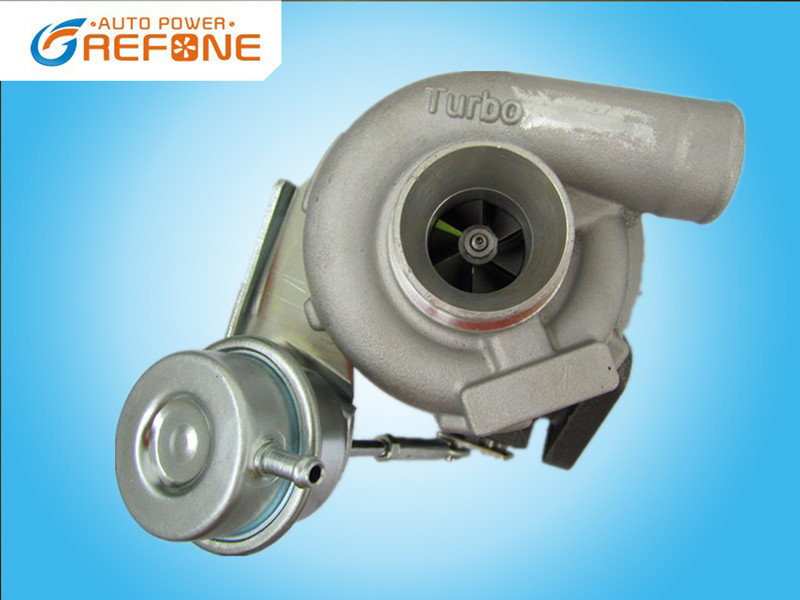

Δ GT1241Z turbocharger specs
| Part Number |
756068-5001S
|
| Previous Version |
708001-0001, 756068-0001, 708001-1, 756068-1
|
| OE Number |
036145701, 36145701
|
| Year |
2001-
|
| CHRA |
708247-0007 (757864-0001, 708247-0002)
|
| Turbo Model |
GT1241SZ, GT1241Z
|
| Engine Model |
EA111
|
| Displacement |
1.0L, 1000 ccm, 16V, 4 Cylinders
|
| KW |
82/101/130 HP
|
| RPM Max |
5500
|
| Fuel |
Gas
|
| Angle α (compressor housing) |
276
|
| Angle β (turbine housing) |
201
|
| Bearing Housing |
757865-0001
|
| Turbine Wheel |
703145-0002
|
| Comp. Wheel |
708205-0002
|
| Turbine Housing |
711404-0002/711404-0008
|
| Compressor Cover |
710395-0002/756072-0001
|
| Actuator |
712738-0002
|
| Settings Waste gate (pressure) |
0.455-0.515 bar
|
| Settings Waste gate (lift shaft) |
1.00 mm
|
| Gasket (turbine inlet) |
210505
|
| Gasket (turbine outlet) |
210694
|
| Gasket (oil inlet and outlet) |
210382
|
Δ Application:
2001- Volkswagen Golf, Parati with EA111 Engine
Δ What We Do
Refone is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends.
Δ Why Choose Us
1.Fast response and good service
2.Sample order acceptable
3.ODM&OEM service available
4.1year warranty
5.All turbochargers and chras performance balanced.
Δ VW turbochagrers
Model
| P/N | OEM No. | Application |
GT1241Z
|
708001-0001
756068-0001
756068-5001S
| 036145701
36145701 | 2001- Volkswagen Golf, Parati |
| BV39 |
54399880022
54399880011
54399880020
| 038253014G, 038253010D, 038253056E |
04-07 Audi A3 TDI
2007 Seat Altea , Leon, Toledo
2007 Skoda Octavia, Fabia
Volkswagen Touran
Volkswagen Golf V TDI
2007- Volkswagen Caddy
|
| K03 |
53039880029
|
058145703J, 058145703JX, 058145703JV, 058145703N
|
1998-99 Audi A4 1.8T (B5)
2002-05 Audi A4 1.8T (B6)
1998- Audi A6 1.8T (C5)
Volkswagen Passat B5 1.8T
2000-05 Volkswagen Passat |
GT1749V |
712077-0001, 716215-0001, 717858-0001, 717858-0002, 717858-0003, 717858-0004, 717858-0005, 717858-0006, 717858-0007, 717858-0008, 717858-5007S, 717858-5008S, 717858-0009
| 038145702E, 038145702EV110, 038145702G, 038145702GV105, 038145702GV500, 038145702GV505, 038145702GV550, 038145702, 038145702N, 038145702J |
2000-08 Audi A4, A6
2000-08 Skoda Superb Tdi
2000-08 Volkswagen Passat TDI |
GT1544S |
454064-5001S
454064-0001
| 028145701L | 1995 Volkswagen Commercial T4 Bus |
| K03 |
53039880052
53039880094
|
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F
|
00-09 Audi A3
00-09 Audi TT
00-09 Seat Leon
00-05 Seat Leon Cupra
00-09 Skoda Octavia
VW Golf/Bora/Jetta
|
| K14 |
53149887018
|
074145701A, 074145701AX, 074145701AV
|
VW T4 Transporter 2.5L |
GT1749V |
756062-0001
756062-0002
756062-0003
756062-5003S
| 03G253019HV100
03G253014J
03G253010H | Volkswagen Golf 2.0 TDI
Mitsubishi Grandis/ Outlander |
GT1544S
|
454083-0001
454083-0002
454083-5002S
| 95VW6K682AA
1002829
028145701Q | Volkswagen Passat TDI
Volkswagen Sharan
Volkswagen Golf TDI |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
