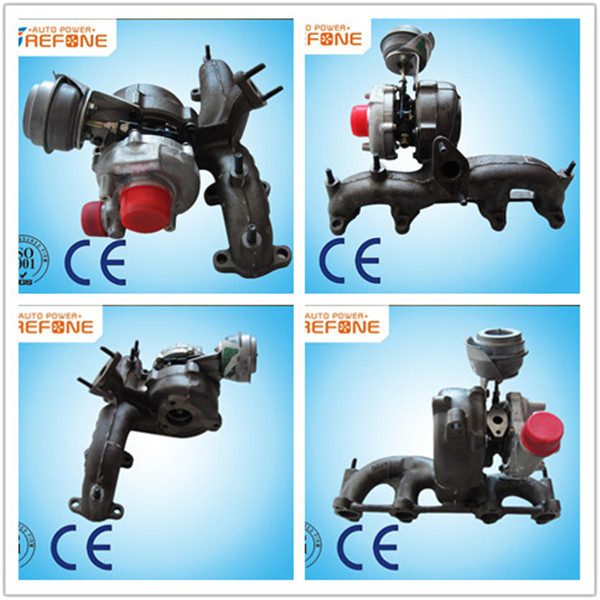

VNT Turbocharger GT1749V 713672-5006S for Audi Seat Volkswagen
Product Description
Part Number | 713672-5006S |
| Previous Version | 713672-0002, 713672-0003, 713672-0004, 713672-0005, 713672-5005S |
| OE number | 038253019C, 038253019CV500, 03G253016N, 038253019CV225 |
| Year | 2000-06 |
| Description | Audi A3, Seat Leon, Volkswagen Beetle, Golf IV |
| CHRA | 433395-0020 (433395-5020S, 433395-0040) |
| Turbo Model | GT1749V(S1) |
| Engine | PD UI, ALH, AHF, AJM, AUY |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 CYL |
| KW | 81/85 |
| RPM Max | 4000 |
| Angle α (compressor housing) | 177° |
| Angle β (turbine housing) | 90° |
| Bearing Housing | 433145-0005/722282-0002 |
| Turbine Wheel | 434533-0002/434533-0039 |
| Comp. Wheel | 434812-0001/434812-0002 |
| Back plate | 700593-0006 |
| Heat Shield | 433112-0001 |
| Thrust Kit | 732248-0003/732252-0001 |
| Service Kit, Major | 732248-003/732245-0001 |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0015 $114.19 |
| Settings Waste gate adjustment (pressure) | 0.224-0.229 bar |
| Settings Waste gate (lift shaft) | 0.5-4.0 mm |
| Gasket exhaust manifold | 210664 |
| Gasket (turbine outlet) | 210311 |
| Gasket (oil outlet) | 210243 |
| Gasket actuator EGR | 210313 |
Applications
2000-06 Audi A3 TDI with PD UI Engine
2000-06 Seat Leon TDI S with PD UI Engine
2000-06 Volkswagen Golf TDI with PD UI Engine
1996-03 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1997-01 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1999-05 Seat Leon 1.9 TDI Engine ALH, AHF
1999-03 Seat Toledo II 1.9 TDI Engine ALH
1999-04 Seat Toledo II 1.9 TDI Engine AHF
1997-07 Skoda Octavia I 1.9 TDI Engine ALH, AHF
1998-04 Volkswagen Beetle 1.9 TDI Engine ALH, AHF, AJM, AUY
1998-04 Volkswagen Bora 1.9 TDI Engine LH, AHF, AJM, AUY
1997-03 Volkswagen Golf IV 1.9 TDI Engine ALH, AHF
Company Description
Refone is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
Contact us
Gavin wang
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658726
Website: www.cnrefone.com
GT1852V | 709835-5002S | 6110960399/6110960799 | Mercedes-PKW E-Klasse 220 CDI (W210) |
| GT1852V | 709836-0004 | A6110960899 | Mercedes Sprinter OM611 |
| GT1852V | 717625-5001S/1 | 86005024445061 | Opel Astra G 2.2 DTI |
| GT1852V | 7176265001S/1/2/5002S | 860055-24443096
860051-24445062 | Opel Signum 2.2 DTI |
| GT1852V | 718089-5008S/5/6/5007S | 8200267138/7701475282
8200447624/7711134877
8200447624A | Renault Avantime 2.2 dCi |
| GT1852V | 726698-0001/2/3/5003S
778794-0001
709836-0001/5004S | A6110960899
A6110961699
A6110961599 | Mercedes Sprinter I 211/311/411CDI OM611 109HP 00-06 |
| GT2052V | 7246390002/5002S/5006S 705954-0009/0015/0017 | 14411-2X900 14411-VC100 | Nissan Terrano II 3.0L Di 229 |
| GT2052V | 454135-0001/2//5006S/5009S/5010S | 059145701G/GZ/GV/C/CX/CV | Audi A4 2.5 TDI (B5) |
| GT2052V | 454205-0006 | 074145701DV248 | VW LT II 2.5TDI |
| GT2052V | 710415-0001/5003S | 11657781434/5 7781436
/7780199D | BMW 525 d (E39) |
| GT2052S | 452301-0001 | 2674A326/391 | Perkins 4000 - T4.40(0.0) |
| GT2052S | 703389-0001 | 28230-41450 | Hyundai Mighty Truck |
| GT22 | 709838-5004/5S/3/1 | A6120960399 | Mercedes Sprinter I 216/316/416CDI |
| GT2252 | 452187-0006 | 1441169T00 | BD-30Ti |
| GT2252V | 454192-0001 | 074145703E | V.W. T4 Transporter 2.5L |
| GT2556V | 454191-0001/0003/5012S/5015S | 11652248906/11652248907/11652247691 | BMW 530 d (E39) |
| GT2256V | 704361-0004/5/5006S | 11652249950/11652248834 | 330 d (E46) |
| GT2256V | 709838-0001/3/4/5005S | 05104006AAA6120960399 | BENZ,DODGESprinter |
| GT2256V | 710811-5002S | 55191597 | ALFA ROMEO |
| GT2256V | 751758-0001/5001S 707114-0001 | 5001855042/500379251 | Iveco |
