Prod Model: |
V8-3188KC |
Camera Diameter: |
23mm |
Sensor: |
CMOS |
LED Lighting: |
12 PCS White LEDs |
Special Features: |
Waterproof / Weatherproof |
Lens: |
Sapphire Glass |
Camera Material: |
Stainless Steel |
Viewing Angle: |
90 Degree |
Cable Lenth: |
20m / 30m / 40m / 50m |
Cable Material: |
Fibreglass |
Battery: |
6600mA |
Certification: |
RoHS |
Testing Equipment Type: |
Pipe Sewer Inspection Camera |
Product Description

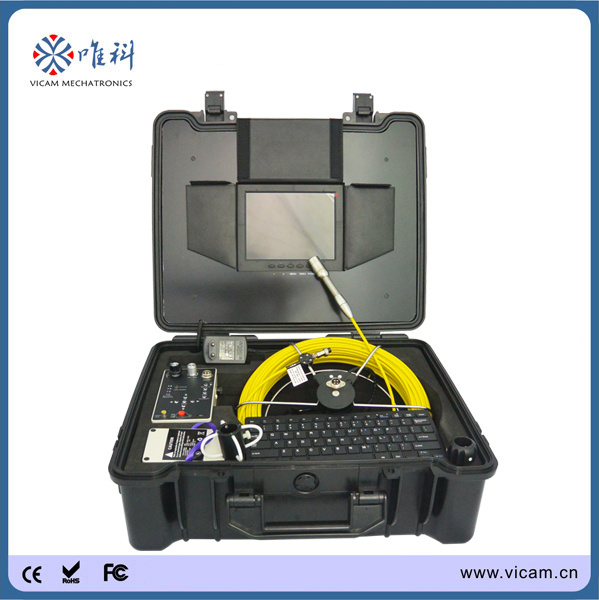

Vicam color video chimney borehole inspection camera system (V8-3188KC)
V8-3188KC with meter counter |
|

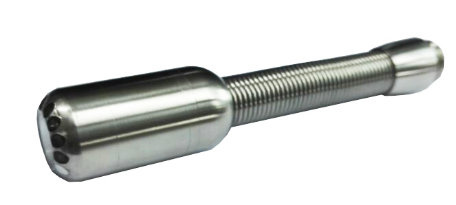

camera head | size | diameter 23 X 45mm |
material | stainless steel |
lens window material | sapphire glass |
sensor | 1/4 inch CMOS |
pixels | PAL: 720 X 576 NTSC: 720 X 480 |
field of view | 120 degree |
waterpoof | IP68 |
Illumination | 12 pcs intensity LEDs |
|

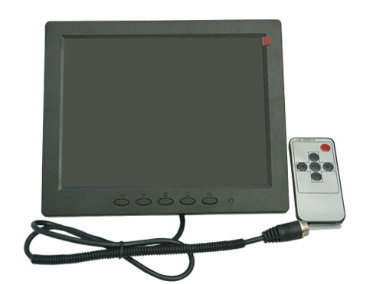

monitor | size | 8 inch |
brightness | 400 cd/ m2 |
display model | 4:3 / 16:9 |
resolution | 800 x 600 |
|

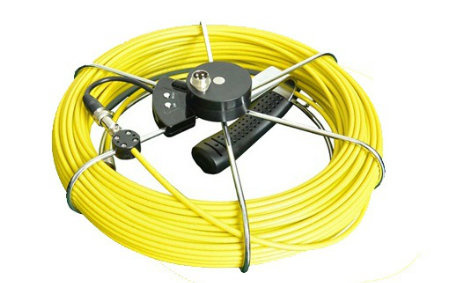

cable reel | material | fibreglass push rod with meter counter |
diameter | 5.2mm |
length | 20m to 50m optional |
reel size | Φ320 x 110mm |
|

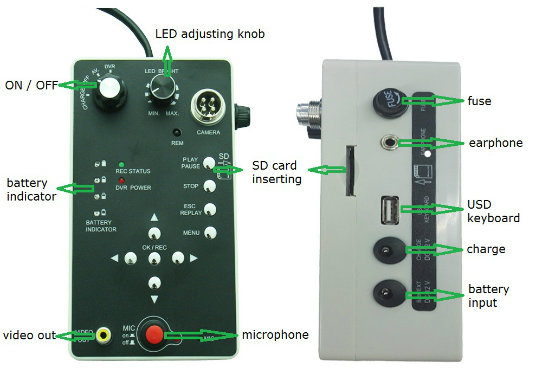

DVR control unit | DVR control buttons |
SD card (max 64G) jack,keyboard jack |
LED brightness adjusting knob |
A / V & photo selection available |
On/off microphone control button |
Battery level indicator lights |
|
|
Carrying case | size | 52 x 43.5 x 20cm |
unit condition | -10 to 50 degree Celsius, RH 95% maximum |
stroage condition | -20 to 70 degree Celsius, RH 95% maximum |
Option | 512Hz transmitter |
Packing & Shipping:
* Durable ABS carrying case 520 x 440 x 200mm
* 2 pieces cases in one carton
* All products will be tested & inspected before delivery
* Tracking No. Will be sent after delivery
About Vicam
Vicam Mechatronics Co., Ltd is located at Shangxue Industrial Park in Shenzhen, South of China. Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras. Most of our products sold to Europe, America, Australia, Middle East, South Africa and South America market. In the process of Vicam growing up, we have got very important technical support from CYBERIA SAS, and Shenzhen Institutes of Advanced Technology.
Our main product range include portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environment.
The Vicam tenet is to rely on the advanced technology, meet the global market demand, provide good quality products and good service to all our customers!
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
