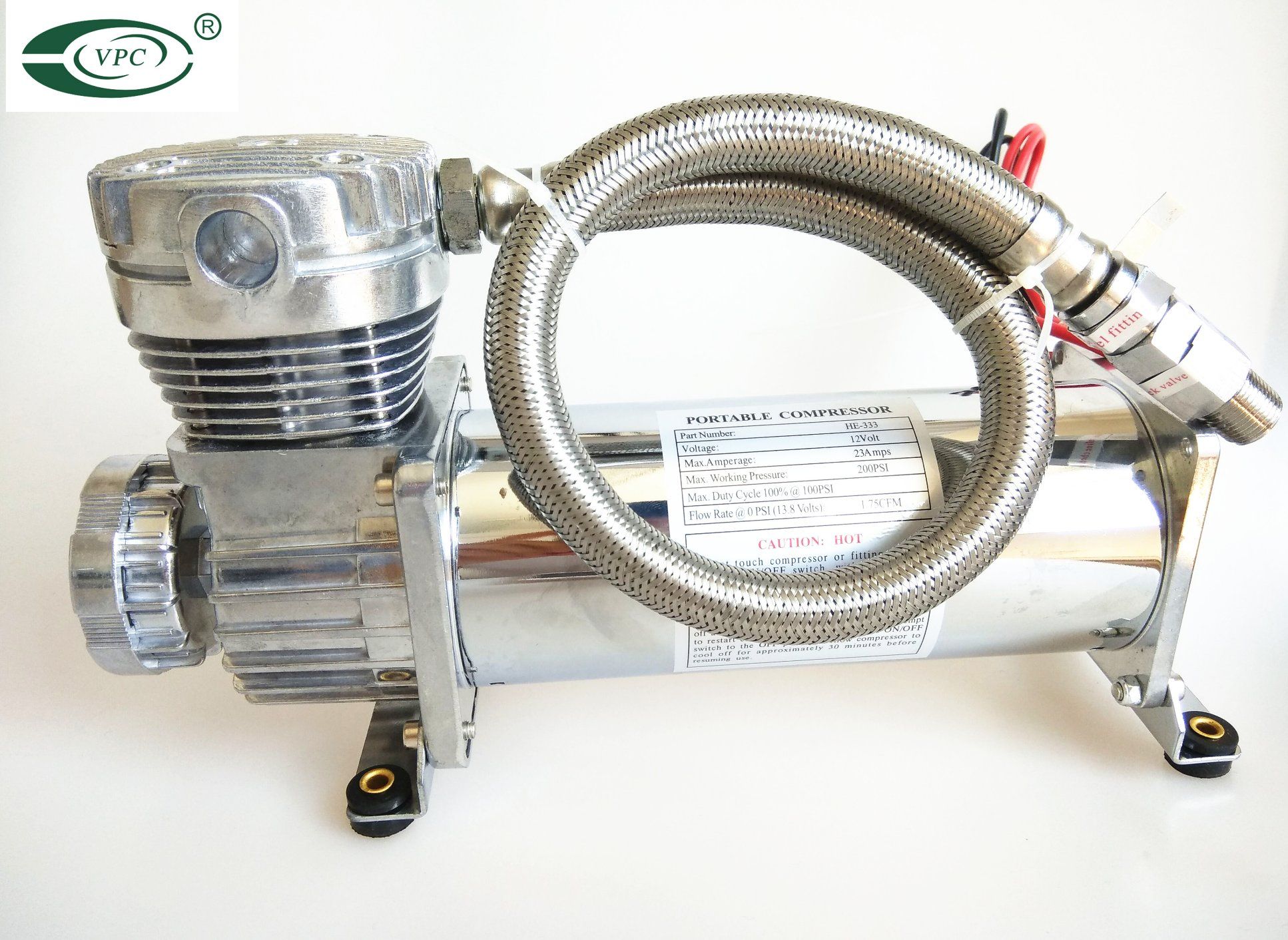

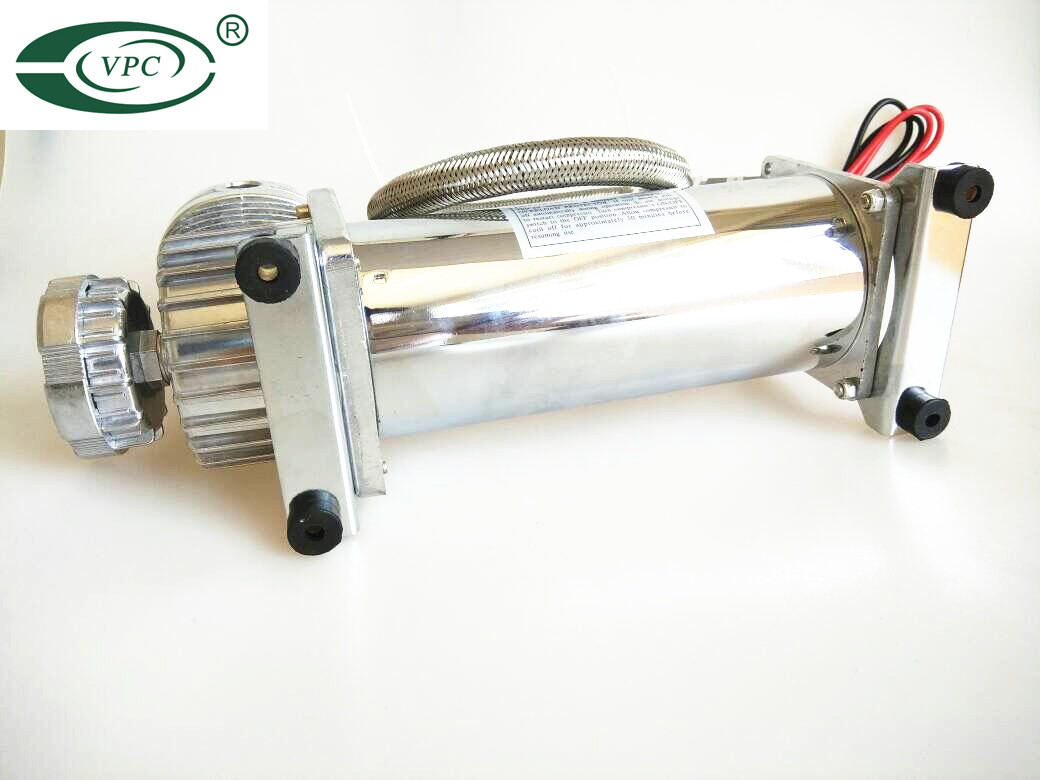

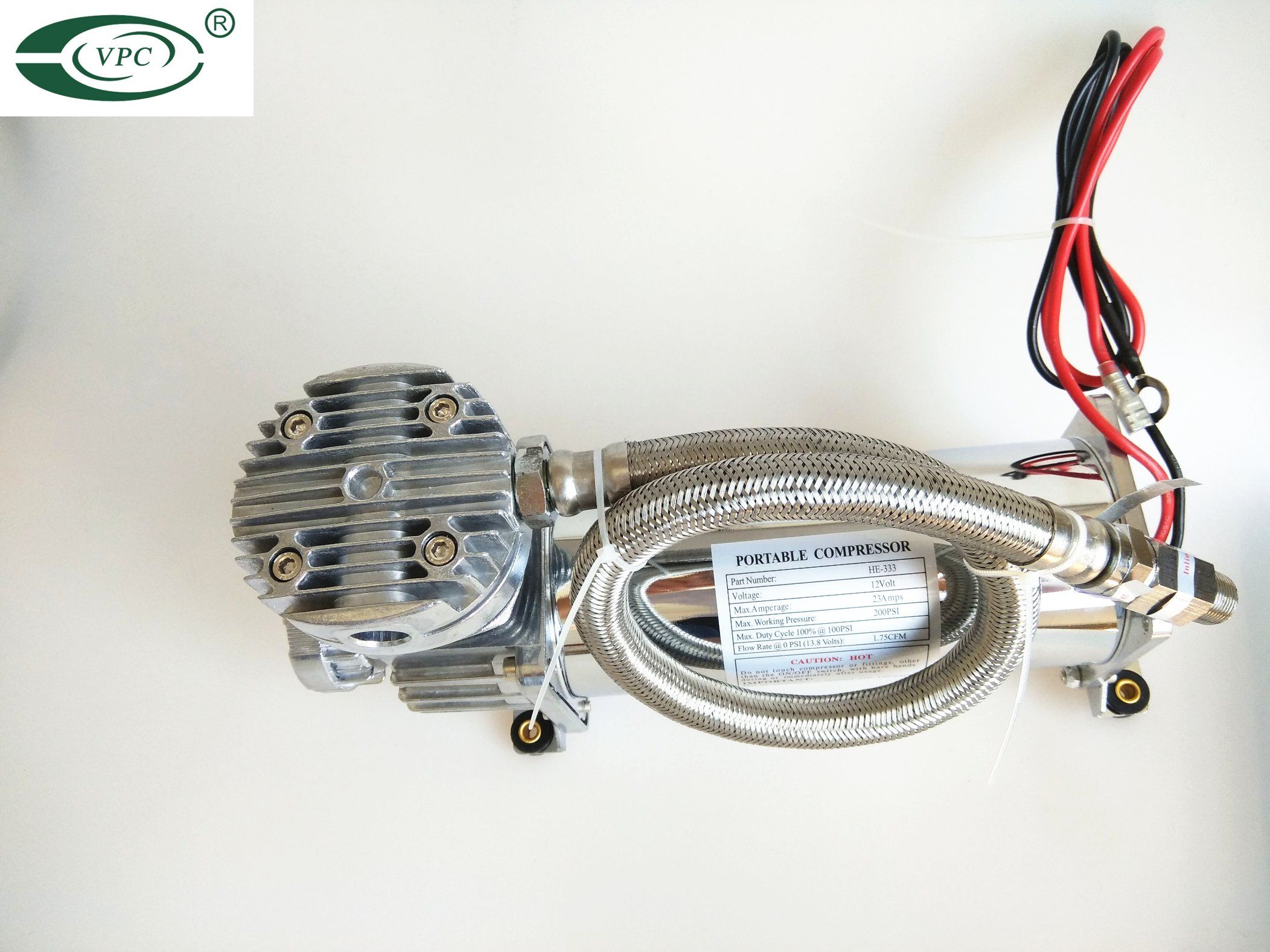

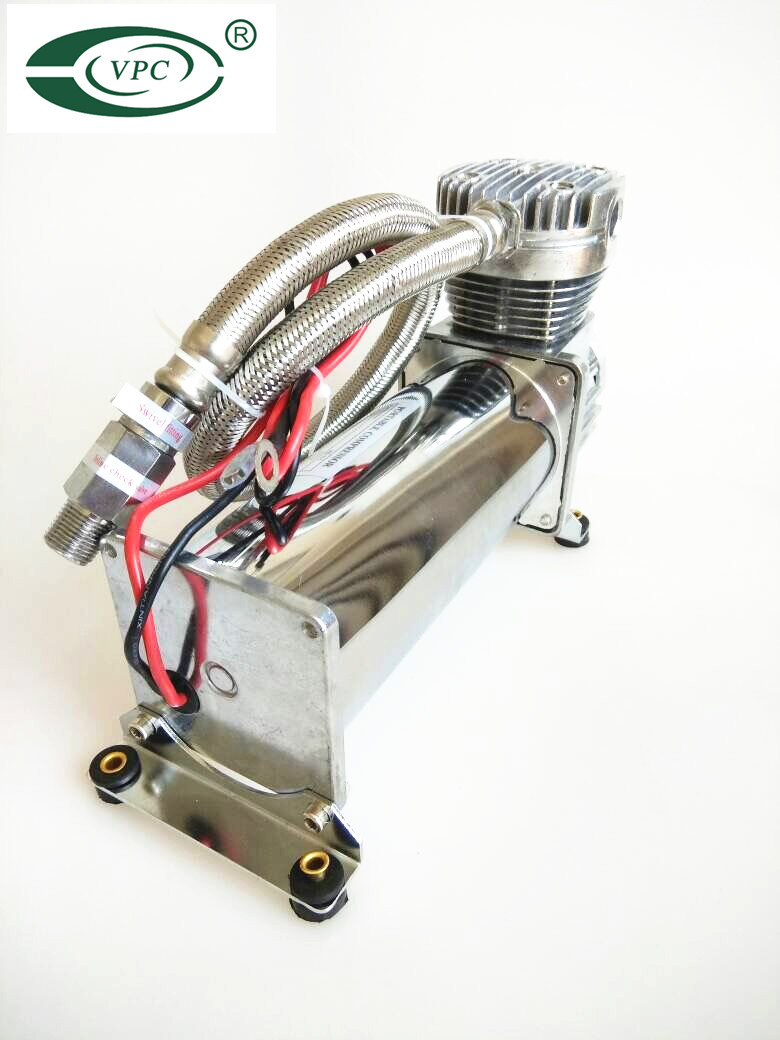

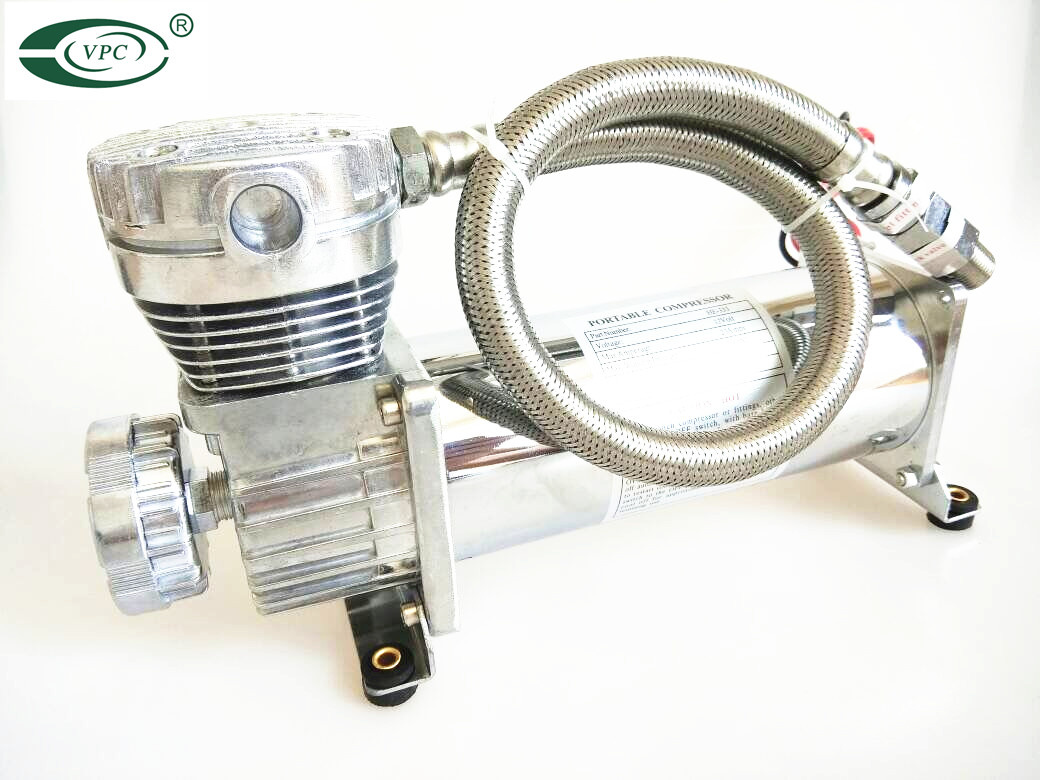

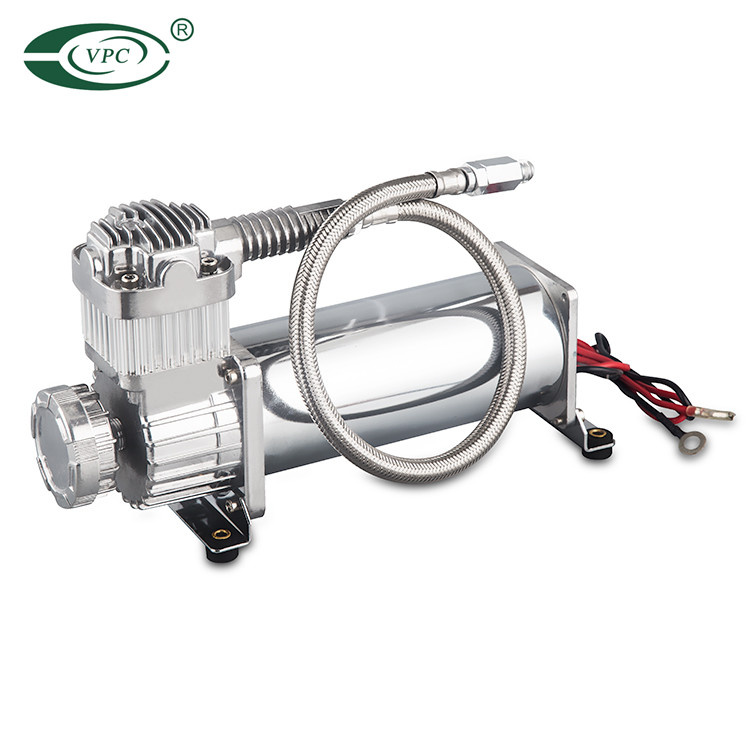

Viair 92c Chrome Utility Air Compressor for Air Suspension Air Horns

Name: Viair 92c Chrome Utility Air Compressor for Air Suspension Air Horns
Brand: ibuyautoparts.com
SKU: 823610165
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

VIAIR's 90 Series compressors offer a light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank.

FEATURES:

- Check Valve

- Vibration Isolators

- Mounting Hardware

- Direct Mount Air Filter Assembly

- Installation Instructions

SPECIFICATIONS:

- 12-Volt

- Permanent Magnetic Motor

- Duty Cycle: 9% @ 100 PSI

- Max. Working Pressure: 120 PSI

- Max. Air Tank Size: 1.0 Gallon

- Max. Amp Draw: 10 Amps

- Ingress Protection Rating: IP54

- Dimensions: 7.6″L x 2.0″W x 4.6″H

- Net Weight: 2.45 lbs

FILL RATES:

0.5 GALLON TANK FILL RATE

0 to 105 PSI 1 min. 08 sec. (± 05 sec.)

85 to 105 PSI 16 sec. (± 03 sec.)

0 to 120 PSI 1 min. 23 sec. (± 05 sec.)

90 to 120 PSI 27 sec. (± 03 sec.)

1.0 GALLON TANK FILL RATE

0 to 105 PSI 2 min. 20 sec. (± 10 sec.)

85 to 105 PSI 35 sec. (± 05 sec.)

0 to 120 PSI 3 min. 04 sec. (± 10 sec.)

90 to 120 PSI 54 sec. (± 05 sec.)

Prod Model:	Viair 92C
