Fine Cylinder Boring Machine: |
Vertical Cylinder Boring Machine |
Product Description
*** Vertical Boring Machine: T170S, and T170A, T200A, T250A;
*** Vertical Boring Milling Machine: TX170A, TX200A, TX250A;
*** Vertical Boring Milling Grinding Machine: TXM170A, TXM200A, TXM250A;
This serial machines can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors,as well as various high precision holes boring, and extra surface milling grinding of other workpieces.

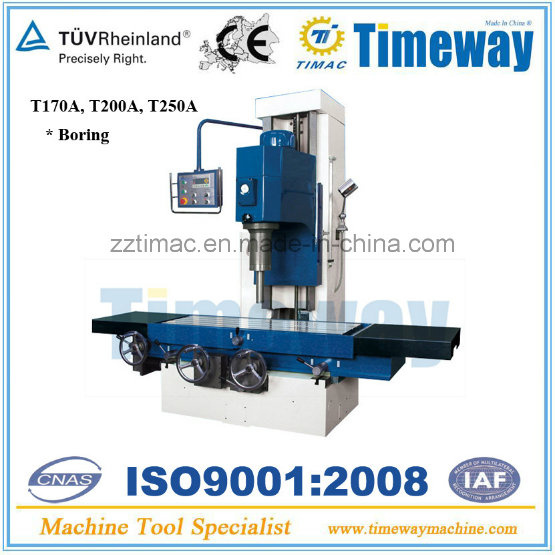

Vertical Fine Boring Machine T170A T200A T250A
Features:
1. Stepless of spindle turning, feeding.
2. Rotating speed and feed of spindle is free-setup, automatical returning of spindle can be realized.
3. Longitudinal and cross movement of table.
4. Completer set of boring, drilling & reaming accessories and easy exchange.
5. Spindle fast centering device.
6. Tool measuring device.
7. Boring depth control device.
8. Table with digitable readout for jig borer machine.
Specification | Unit | T170S | T170A | T200A | T250A | TX170A | TX200A | TX250A | TXM170A | TXM200A | TXM250A |
Max. boring diameter | mm | Φ170 | Φ170 | Φ200 | Φ250 | Φ170 | Φ200 | Φ250 | Φ170 | Φ200 | Φ250 |
Max. boring depth | mm | 400 | 400 | 500 | 500 | 400 | 500 | 500 | 400 | 500 | 500 |
Max. grinding area | mm | - | - | - | 400x1000 |
Max. milling area | mm | - | - | 400x1000 | 400x1000 |
Max. drilling & reaming diameter | mm | Φ30 | Φ30 | Φ30 | Φ30 |
Spindle speed | rpm | 80-860 | 120-860 | 120-860 | 120-1200 |
Feeding of the spindle | mm/min | 14-810 | 14-900 | 14-900 | 14-900 |
Rapid moving speed of the spindle | mm/min | 810 | 1000 | 1000 | 1000 |
Spindle travel | mm | 500 | 700 | 700 | 700 |
Distance between spindle end face and table | mm | 0-500 | 0-700 | 0-700 | 0-700 |
Distance between spindle axis and carriage vertical plane | mm | 330 | 350 | 365 | 375 |
Longitudinal feeding of work table | mm/min | - | - | 32-1350 | 32-1350 |
Longitudinal rapid moving of work table | mm/min | - | - | 1350 | 1350 |
Max. longitudinal travel of working table | mm | 1100 | 1500 | 1500 | 1500 |
Max. cross travel of the working table | mm | 80 | 200 | 200 | 200 |
Working table size (W×L) | mm | 400x1250 | 500x1250 | 500x1500 | 500x1250 | 500x1500 | 500x1250 | 500x1500 |
Quantity of "T" Slot | qty. | 3 | 5 | - | - |
Main motor | kw | 3 | 3 | 5.5 | 5.5 |
Boring holes precision |
| H7 | H7 | H7 | H7 |
Working accuracy | Roundness | mm | 0.005 | 0.005 | 0.005 | 0.005 |
Cylidricity | 0.01/300 | 0.01/300 | 0.01/300 | 0.01/300 |
Milling flatness | - | - | 0.10 | 0.10 |
Grinding flatness | - | - | - | 0.08 |
Working surface roughness | Boring | μm | Ra2.5 | Ra2.5 | Ra2.5 | Ra 2.5 |
Milling | - | - | Ra3.2 | Ra 3.2 |
Grinding | - | - | - | Ra 0.8 |
Overall dimensions (L×W×H) | mm | 2100x1430x2010 | 2600x1630x2300 | 2600x1630x2300 | 2600x1630x2300 |
Packing dimensions (L×W×H) | mm | 1820x1770x2190 | 2250x1900x2270 | 2250x1900x2280 | 2250x1900x2280 |
N.W./G.W. | kg | 2500/2800 | 3300/3600 | 3500/3800 | 3300/3600 | 3500/3800 | 3300/3600 | 3500/3800 |
