Vehicle Speedometer Tester /Vehicle Test Line

Name: Vehicle Speedometer Tester /Vehicle Test Line
Brand: ibuyautoparts.com
SKU: 814426795
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

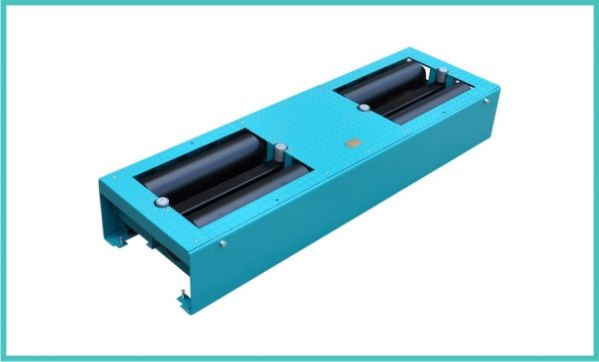

Vehicle speedometer Tester /Vehicle test line

KCS Speedometer is designed to inspect the speed exactitude of a vehicle. Vehicle is able to running up to 120km/h on the roller of the tester, simulating the road condition without a real road test.

Description of product
1.Using of reinforced steel, strengthen and durable structure body
2.High adhesion coating paint for long working life
3.High precision sensor and high roundness of roller to ensurethe exactitude of result
4.Air-lifter and roller brake system make sure the exit of vehicle
5.0-120km/h measurement range, using wireless remote control
6.Standard RS-232 connection por

Technical Data

Model	KCS-3	KCS-10	KCS-15
Max. Axle Load (kg)	3000	10000	15000
Measurement Range (km/h)	0-120	0-120	0-120
Roller Dimensions (mm)	Φ190x700	Φ190x1100	Φ190x1200
Roller Axle Separation (mm)	380	380	405
Air Supply (MPa)	0.5-0.6	0.7-0.8	0.7-0.8
Power Supply	AC 220V, 50Hz, ground

Prod Model:	KCS
Max. Axle Load:	3000kg or 10000kg or 15000kg
Measurement Range:	0-120km/H
Roller Dimension:	Φ190X700mm/Φ190X1100mm/Φ190X1200mm
Air Supply:	5-6bar/7-8bar
Power Supply:	220V 50Hz
Certification:	CE
Update Method:	by Email
Testing Equipment Type:	Test Line
