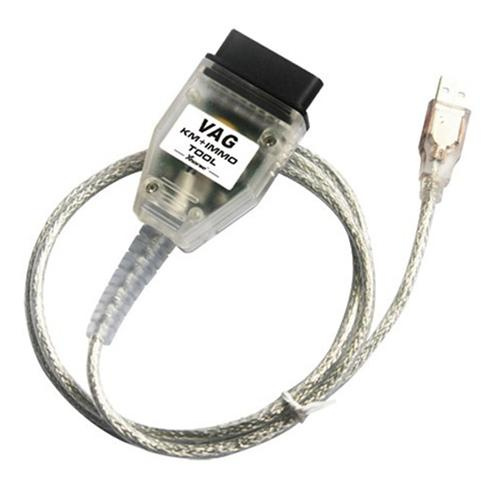

VAG KM+IMMO TOOL latest version V1.8.2
New version update: V1.7.3
Fixed the problem of can't change km with A5,Q5,A4
Notice
There is a problem in HID driver code of original VAG IMMO K+CAN TOOL and CDC32xx cables, when you upgrade the device,
may cause data loss to device,and resulting device not work. We have released a new version to solve this problem, we add 4th
generation key functions to show our regret. we suggest you to upgrade as soon as possible to solve this problem. If damage
occurs during the upgrade process,please send the product back to the original manufacturers for repair and send back to you,
but we do not bear the freight.
Newest added function: VAG KM+IMMO TOOL process of adding dealer key with Tango
1. Condition 1: At least one key can be used.
1) Connect "VAG KM+IMMO TOOL" to both PC and car.
2) Click "EEPROM" button, read EEPROM and save it for backup.

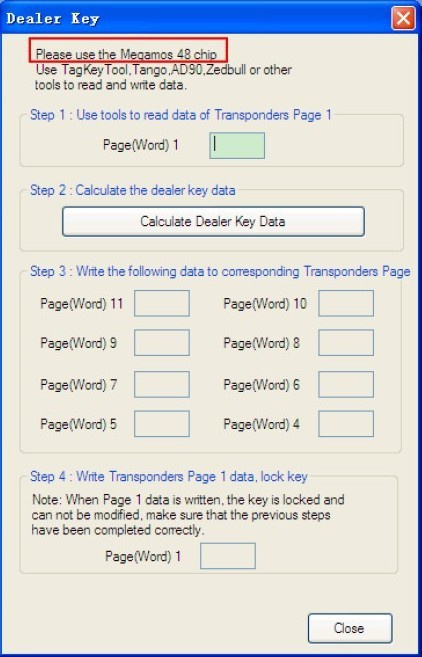

3) Click "Dealer Key" button ,opel "Dealer key" Dialog.
4) Use the prompt key chip to make key.
NEC24C32 and NEC24C64; Megamos 48
CDC VW: TP23
CDC AUDI: TP25
CDC SKODA: TP24
CDC SEAT: TP22

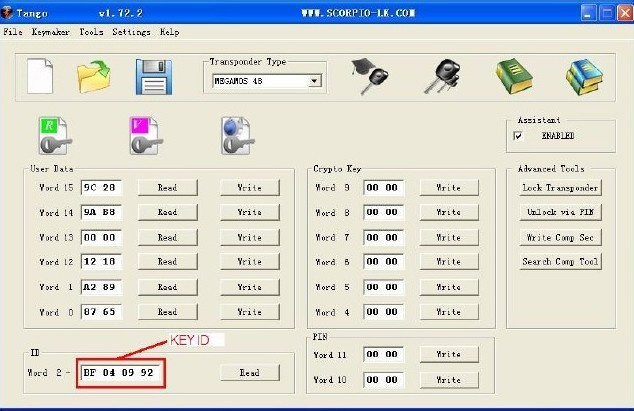

5) Switch to Tango, read "Word 1" data and "Key ID" data
CDC32xx Module Options
Supported cars:
Golf, Golf+ from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Passat B6 from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, EEPROM read/write;
Bora, Jetta from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Touran from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Caddy from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Tiguan, Eos from year 2008+: odometer correction, PIN code read, EEPROM read/write;
Octavia (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write
NEC 24C32 Module Options
Supported cars:
VW Golf 6 - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Passat , Passat CC - 2009+ with NEC and 24C32 EEPROM - odometer programming by OBDII;
VW Tiguan - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW T5 - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Polo - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Octavia 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda SuperB - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Roomster, Yeti - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Seat Ibiza - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Multivan - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW EOS - 2009+ with NEC and 24C32 EEPROM - odometer programming by OBDII;
VW Caddy - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Scirocco - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Bora - 2010+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
VW Jetta - 2010+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Fabia 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Altea - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Yeti - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Altea - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
Skoda Exeo - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read by OBDII;
GOLF6 MM7 Module Options
suppoted cars:
VW Golf 6 - 2010 with MM7 (9S12) EEPROM - odometer programming and immobiliser data read by OBDII;
VW Tiguan - 2010+ with MM7 (9S12) EEPROM - odometer programming and immobiliser data read by OBDII;

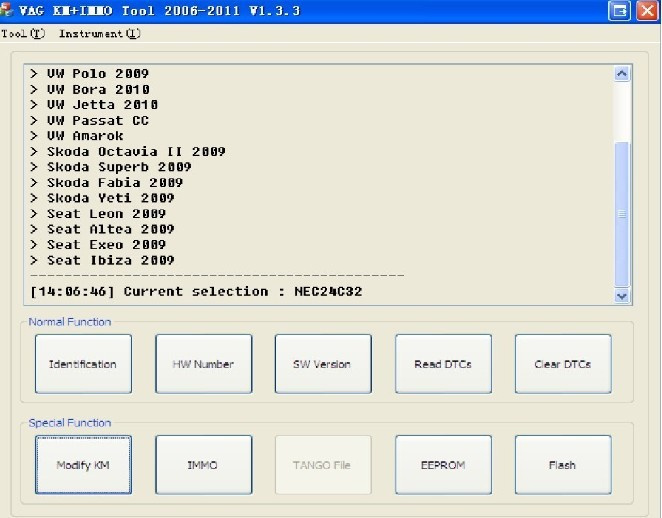

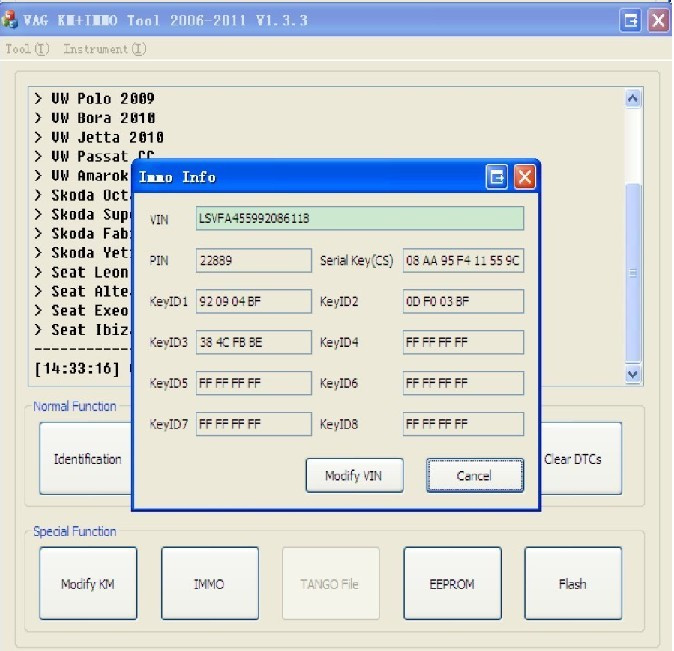

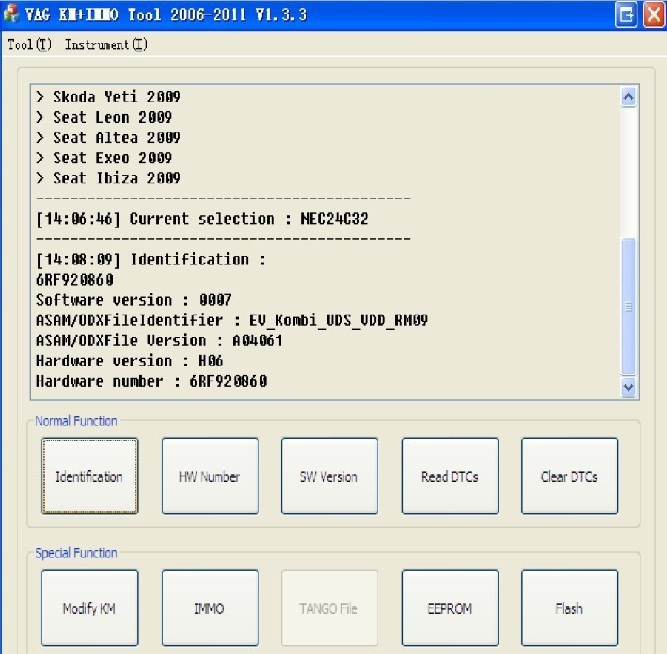

software display
