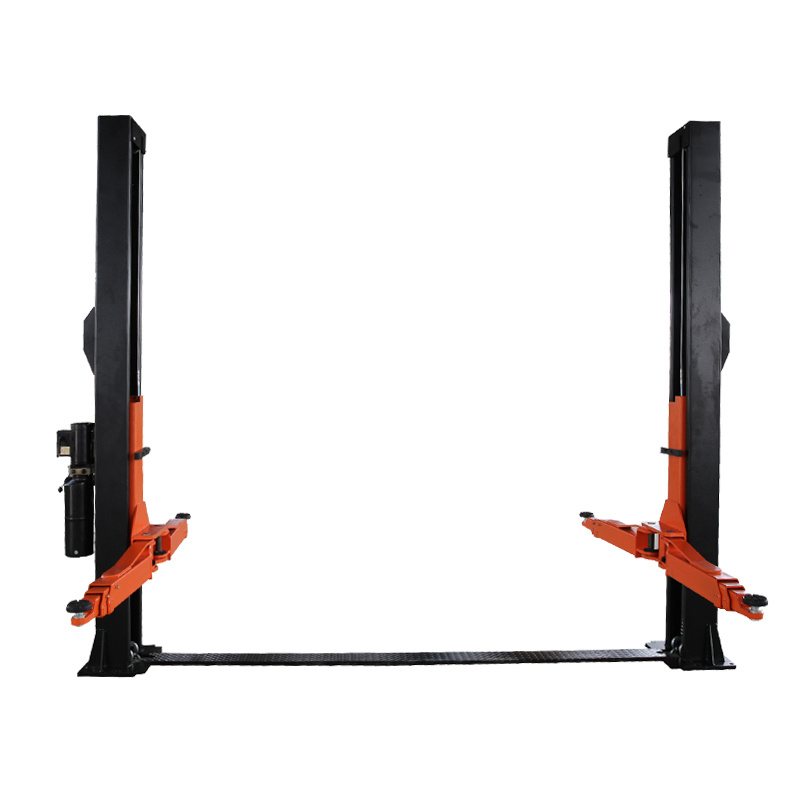

used hydraulic and manual relaease car lifts for sale
FEATURES:*Clear floor design makes easy working under beneath the vehicle.
*By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
*Hydraulic power unit configuration throttling device, can always djust the rate of decline.Manual locked release
from single sides.
*With 24V limit switch.Asymmetric column allows wider drive through clearance.
*Rubber support pad with spiral adujst the height and in stages adjust the height, optional.
*Rubber support pad door-opening protection.
**Toe protection
*Trucks adapters can optional.Have adopted 115% dynamic and 150%static loading tested.
*CE approved
Overall Dimensions:Lifting Capacity | 5000kg |
Lifting Height | 1819mm |
Minimum Height | 110mm |
Lifting Time | 40-45s |
Overall Height | 2884mm |
Overall Width | 3420mm |
Width Between Columns | 2400mm |
Motor Power | 2.2kw |
Power Supply | 220V/380V/415V |
short arm | 720mm-1110mm |
long arm | 770-1240mm |
Similar product:Model | Lifting capacity | Lifting height | width between posts | Overall height |
JH-4000F | 4000kgs | 1850mm | 3175mm | 2800mm |
JH-4000FS | 4000kgs | 1800mm | 2930mm | 2794mm |
JH-4000FE | 4000kgs | 1850mm | 3175mm | 2800mm |
JH-5000FS | 5000kgs | 1800mm | 3400mm | 2920mm |

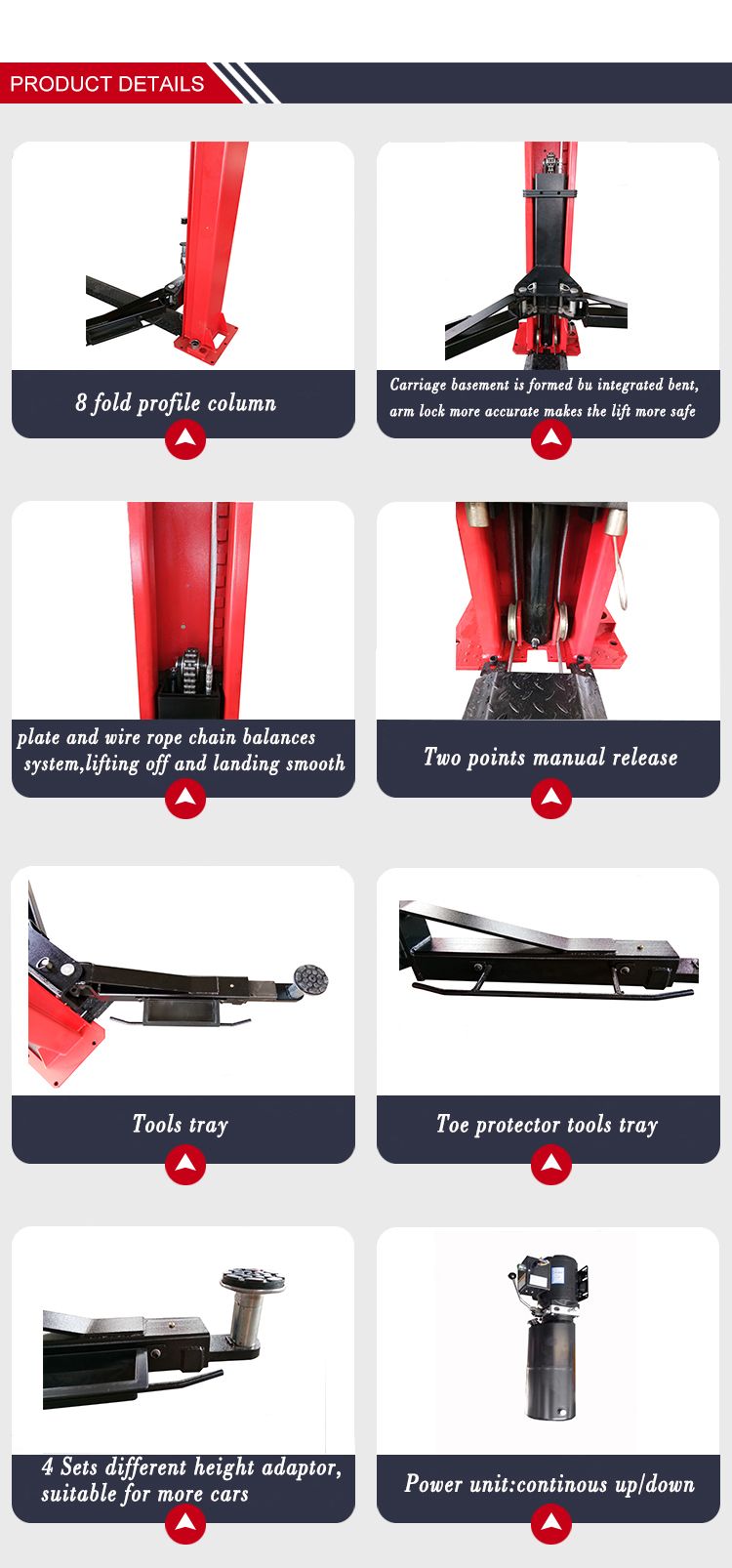

Detail picture:

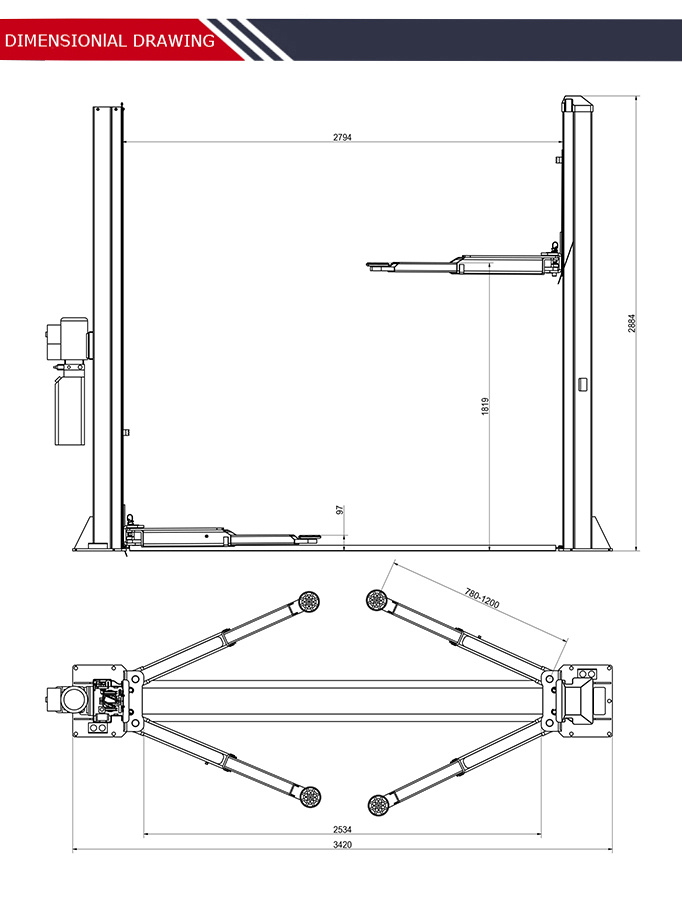

Technical dsign:
Package&shipping information:
Company information:Qingdao Junhv Industry and Trade Limited Company located at Huangdao District Qingdao City,with an area of 10000 sq meters.It takes 1 hour to Qingdao airport,and 40 minutes to Qingdao seaport.
The company is professional at researching & developing,producing and exporting various car lift,including 2 post lift,4 post lift,scissor lift,and parking lift.also we sell tire machine and wheel balancer,and all products with CE certificate.

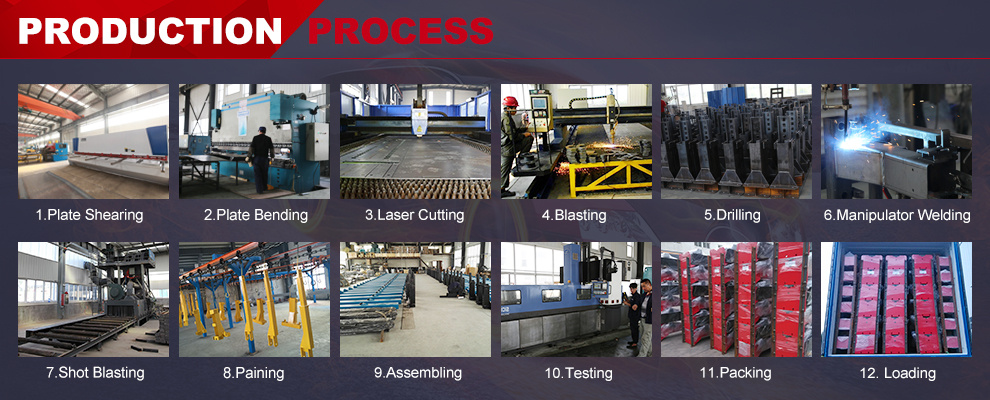

The company has most advanced production equipments,welding robot,germany laser cutting,full automatic bending machine,powder painting line,automatic drill machine.all these machine can keep the accuracy of all parts of the lifts,and and can make highest degree of adaptability during all parts.
The company sales team all woked in garage equipment business for many years and know what concern very much,easy to communicate and always think for customers.
JUNHV aims to become of of the best garage equipments manufacturer in the world and lead the Chinese garage equipments industry into modernized production and management system.Give us one chance,we will payback you more wealth and free time ! FAQ |
Q1 | What's the delivery term for making business with us? |
A | Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients. |
Q2 | What's the delivery time after placing the order? |
A | Usually it takes 3 weeks after receving your receipt payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item. |
Q3 | What's the payment? |
A | By T/T, 50% is paid in advance; balance befor delivery |
Q4 | What's the min order? |
A | 1 set. |
Q5 | What's the warranty? |
A | 1years for free |
