Name: USB Elm327 Obdii Auto Detector-B07
Brand: ibuyautoparts.com
SKU: 801131115
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 4.85/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

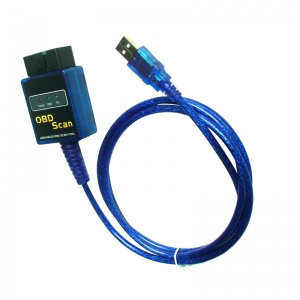

USB ELM327 OBDII auto detector
Elm327 USB is a multi-function, a full range of automotive high-tech electronic products, with the vehicle ECU computer interface and data synchronization, the implementation of the monitoring of electric control system of vehicle body electronic understanding;Can also through the vehicle ECU computer system set up the internal functions of the vehicle, make more human for drivers to use their car.
Is more than just an information display system, and is a very powerful fault detection equipment, understand the vehicle if there is a fault, system can be very clear to display fault information in the form of text, can eliminate hidden danger for vehicles through fault information, but also can ensure that during the warranty period of the vehicle to find fault as soon as possible, make timely make corresponding processing, safeguard the interests of the owners.
Product features: USB Elm327 is the latest scan tool based on personal computer (PC).It supports all OBD II protocols, and with a number of software compatibility.It outputs a deal with USB interface and computer (notebook) interconnection.
Software support platform: Windows XP, Windows 7/8, PC and other systems
A single weight: 96.2 g
Dimension: the 47 mm * 150 mm * 21.6 mm blue (optional)
Properties: support USB desktop computer, notebook, tablet
Output protocol: Rs232 serial port
Baud rate: 38400
Working voltage: 9-16 v
Working current: 45 ma
Support the OBD II agreement:
The SAE J1850 PWM (41.6 Kbaud)
The SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
KWP ISO14230-4 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11 bit ID, 500 Kbaud)
ISO15765-4 CAN (29 bit ID, 500 Kbaud)
ISO15765-4 CAN (11 bit ID, 250 Kbaud)
ISO15765-4 CAN (29 bit ID, 250 Kbaud)

Prod Model:	USB ELM327 OBDII
