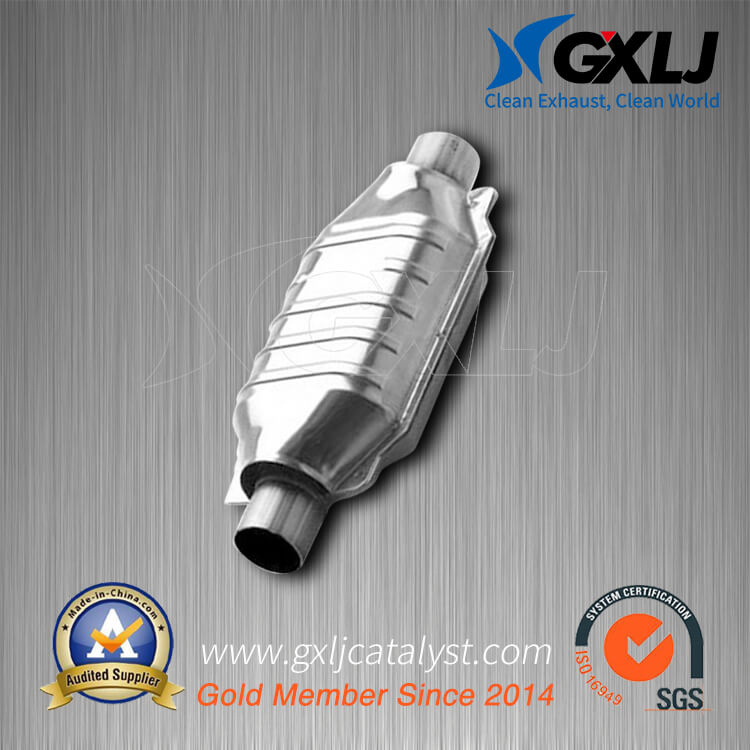

Universal Sports Car Stainless Steel Three Way Catalytic Converter with Metal Honeycomb Carrier

Name: Universal Sports Car Stainless Steel Three Way Catalytic Converter with Metal Honeycomb Carrier
Brand: ibuyautoparts.com
SKU: 724929512
Availability: InStock
Rating: 5 (132 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Product DescriptionWe mainly produce Metal Catalytics and Ceramic Catalytics for Auto and Motorcycle exhaust system, like Honeycomb metal substrate catalytic converter. Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. High strength complex substrate plus big surface area and active element of noble metal could lower down pollutant value of motorcycle exhaust efficiently, such as CO, HC, NOX etc...And such kind of catalyst is of excellent catalytic activity and durability that could reach Euro emission standard IV, meet requirement as per customers' requests. Metallic substrate should be pretreated in order to generate a transition layer which is required to solve the mismatched heat expansion between metallic substrate itself and the active layer. On the transition layer, it is coated with rare earth catalyst, while in active layer is coated with noble metal like PT, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body. It is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard.

Features:
*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure

Usage:
For exhaust system of auto engine, like Honda, Suzuki, Toyato, BMW, etc. And Diesel engine, like farm machinery and construction machinery: Tiller, Harvester, Rice transplanter, Planter, Rice mill, Weeder, Thresher, hoisting machinery, excavator, Reinforced concrete machinery.

Durability:
Metal catalyst: 100, 000 KM. However, Ceramic catalyst: 80, 000 KM

Specification:
*cylinder/round shape, Size: Dia 110mm~155mm, Hight: 40mm~150mm, Cell: 100~600CPSI
Like: Dia 110*110 (Inner hight 80)mm/ 200CPSI
Dia 120*130 (Inner hight120)mm/ 400CPSI

These sizes are part of our metal catalysts, more sizes and specifications can be customized as per your engine.

Test Result for EU- III		Emission Result, g/km
Test Result for EU- III		HC	CO	NOx
EU- III Standard		0.8	2	0.15
Displacement	Item
4 Stroke 150CC Scooter	Original Emission	1.8	10.68	0.24
4 Stroke 150CC Scooter	With Two Catalytics	0.19	1.74	0.09
4 Stroke 125CC Scooter	Original Emission	2.72	7.36	0.7
4 Stroke 125CC Scooter	With Two Catalytics	0.14	0.94	0.13
4 Stroke 110CC Cub	Original Emission	0.43	2.47	0.12
4 Stroke 110CC Cub	With One Catalytic ( without SAI )	0.21	1.16	0.04
4 Stroke 150CC EFI Engine	With One Catalytic ( without SAI )	0.23	1.08	0.1
4 Stroke 150CC EFI Engine	With One Catalytic ( without SAI )	0.23	1.08	0.1
4 Stroke 300CC EFI Engine	With One Catalytic ( without SAI )	0.19	1.4	0.11

Shape	Shell size(mm)	Core size(mm)	Cell density (CPSI)
Rotundity	Φ30x22	Φ28x20	100/200/300/400
Rotundity	Φ35x20	Φ33x20	100/200/300/400
Rotundity	Φ35x30	Φ33x30	100/200/300/400
Rotundity	Φ35x40	Φ33x40	100/200/300/400
Rotundity	Φ35x50	Φ33x50	100/200/300/400
Rotundity	Φ35x60	Φ33x60	100/200/300/400
Rotundity	Φ35x70/100/130	Φ33x60/90/120	100/200/300/400
Rotundity	Φ42x70/100/130	Φ40x60/90/120	100/200/300/400
Rotundity	Φ45x70/100/130	Φ43x60/90/120	100/200/300/400
Rotundity	Φ63,5x85/100/130	Φ60,5x74,5/90/120	200/300/400
Rotundity	Φ73x70/100/130L	Φ70x60/90/120	200/300/400
Rotundity	Φ93x70/100/130	Φ90x60/90/120	200/300/400
Rotundity	Φ100,3x100/130	Φ98,3x90/120	600
Rotundity	Φ144x150/152,4	Φ142x140/142,4	200/300/400
Rotundity	Φ190x200	Φ188x190	200/300/400
Rotundity	Φ420x100/130	Φ416x90/120	300/400
Race track	123x63x85	120x60x75	200/300
Race track	123x63x100	120x60x90	200/300
Race track	78,5x52x104	76,5x50x90	200/300

Prod Model:	GXLJ
Body Material:	Steel
Discharge Standard:	Euro V
Certification:	TS16949
Component:	Catalytic Converter

General Description

Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.

Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.

GXLJ Catalytic Converter

Advantage

Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.

By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.

GXLJ Catalyst for Exhaust emissions

Advantage

GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.

With our cores you'll also experience additional advantages:

1. They are more cost effective in larger diameters

2. They have a quicker "light off"

3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density

4. They provide more cost effective canning methods

5. Reduction of overall size of packaging

6. Can be produced to weld directly in exhaust system

7. They have higher thermal shock resistance
