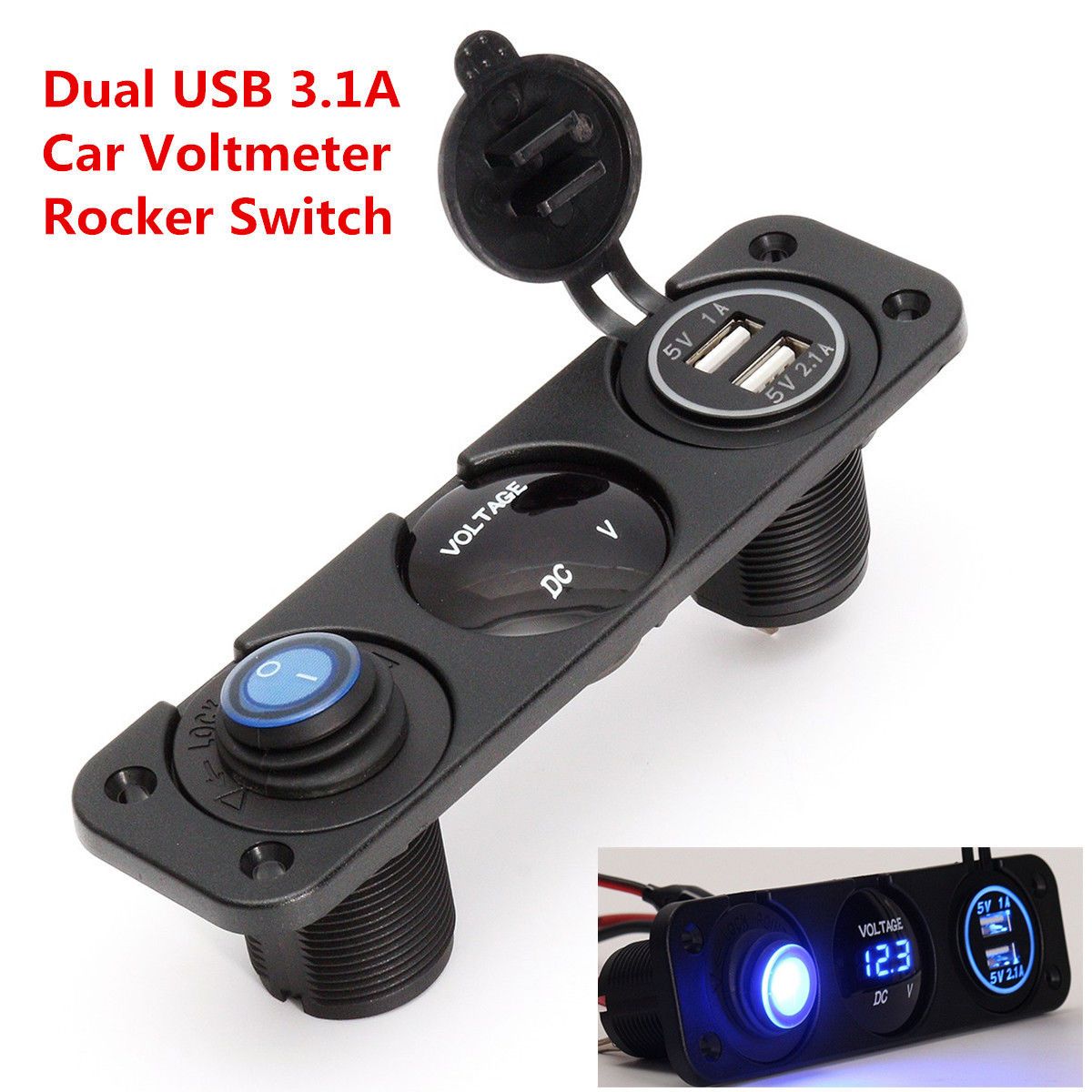

Universal 12V Voltmeter Blue LED Dual USB 3.1A Car Charger Rocker Switch Panel

Features:

 *Waterproof and dustproof material for interior and exterior application

*USB Charger widely used for electric equipment power supply, such as Vehicle, GPS, mobile phone, camera, mp3

*Fast charging at full speed for iPad, iPhone and iPod (2.1Amps for iPad, 1Amp for iPhone/iPod)

*Voltage Meter Wiring kit for cigarette lighters to install in any 12V-24V motorbike, Boat, Riding mower, tractor or car

*LED Voltmeter connects to your 12V system

*Rocker switch universal fits automobiles and devices with a 12V DC power source

*Short circuit/overheat protection

*Multifunctional product, perfect for travel use

*5 LED light colors for you to choose: Blue, Orange, Green, Red, White



Specifications:

 *Material: ABS + Metal

*Shell Color: Black (As Pictures Show)

*Optional LED Light Color: Blue (As Pictures Show)

*USB Charger:

Operating Voltage: DC 12V

Output: DC 5V 1A/2.1A

Indicator: LED

*Voltage Meter:

Operating Range: DC 6-30V

Display: Digital Display

*Rocker Switch: Indicator Light

*Dimension: 5.9*1.6*2 inches (Approx.)

USB Charger:
The USB dual charger socket with weatherproof cap. This cap unlike others cover the complete USB opening to prevent moisture intrusion.  Attaches to your 12 volt source and allows you to charge USB accessories. The charger body is a heavy nylon with all nickel plated parts. The weatherproof cap snaps over the front of the charger to keep moisture out when not in use. The socket has 0.250 male spade type terminals for easy wire connections.
Switch:
Splash proof front and back.    LED Illuminated  or non illuminated waterproof Rocker Switch -SPST.  Nylon threaded switch housing mount in a 1-1/8" hole. Can be
 mounted in panels or dashboards up to 1-1/4" thick with the retaining nut and in panels of unlimited thickness with the mounting plate. Rated for 16 amps at 12 volts. Has
 male ¼" crimp style disconnect terminals. Illumination is low intensity for easier night vision.
-Three wire connection:
         Black wire goes to negative 12 volt power source.
         Yellow wire goes to one side of the load being switched.
          Red wire goes the positive side of the load being switched.
Mount:
The charger and switch fit in a 1-1/8" holes in panels of unlimited thickness by placing the rectangular double compression plate over the front of the two devices  and securing it with four screws. The two holes are side by side on 1-3/4" centers.  The plate dimensions are 4.0" x 1.75" The mounting screw hole pattern is on I" centers for the two holes on the short side, and on 3-3/8" centers for the two holes on the long side.
