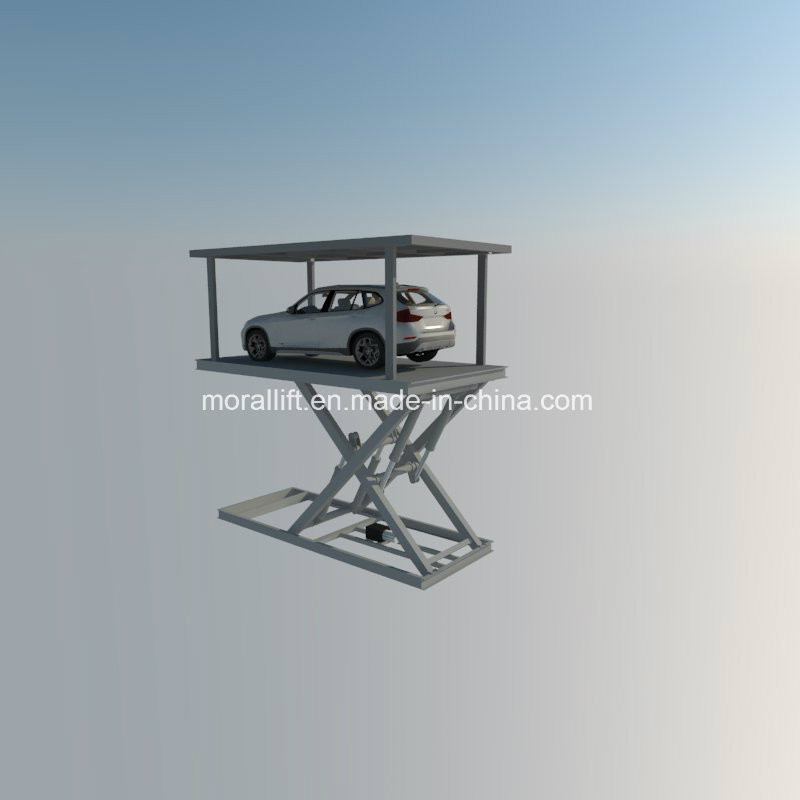

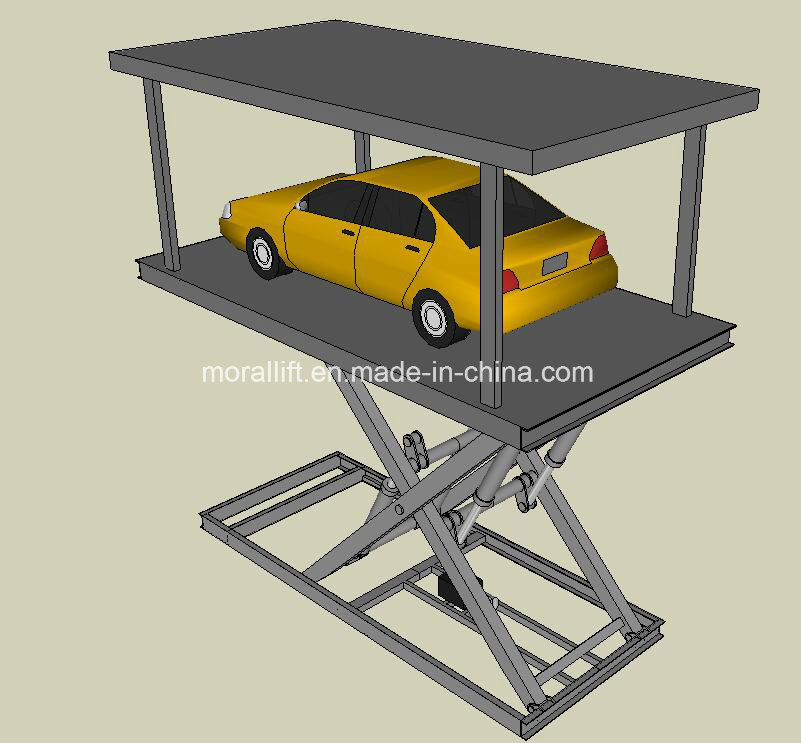

Underground Garage Car Parking Lift with Car Top Roof

A cost effective and smart solution for both commercial and residential parking applications.

Load : 3000kg. Other loads and sizes on application are available

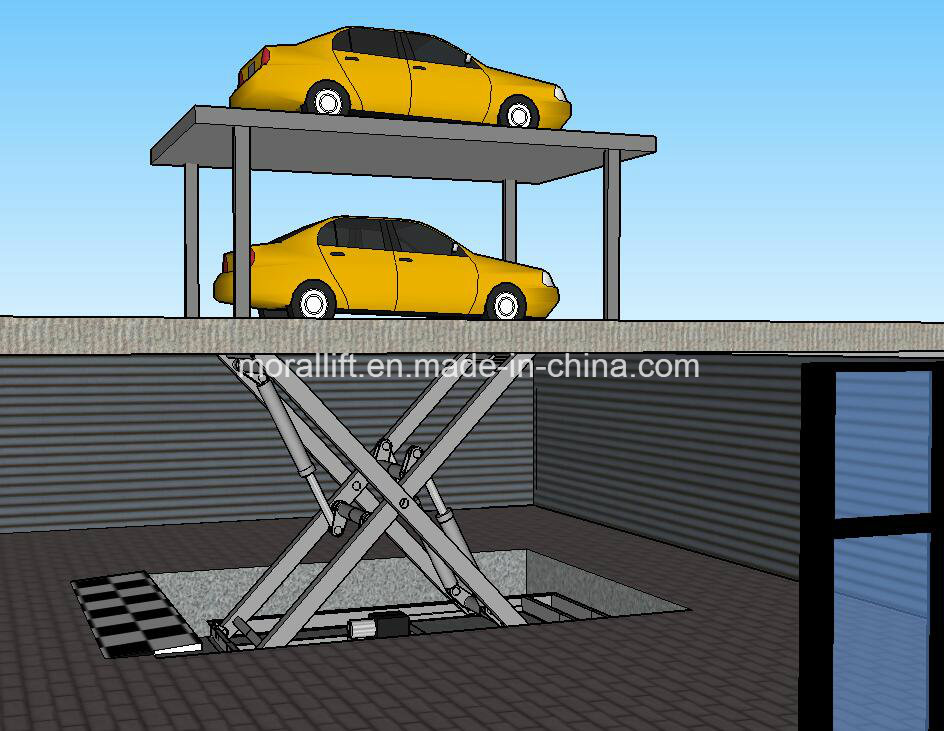

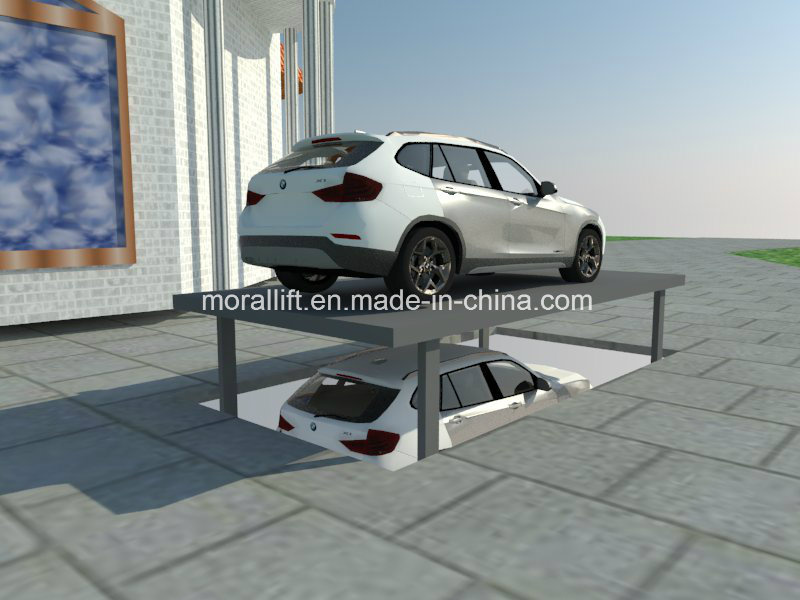

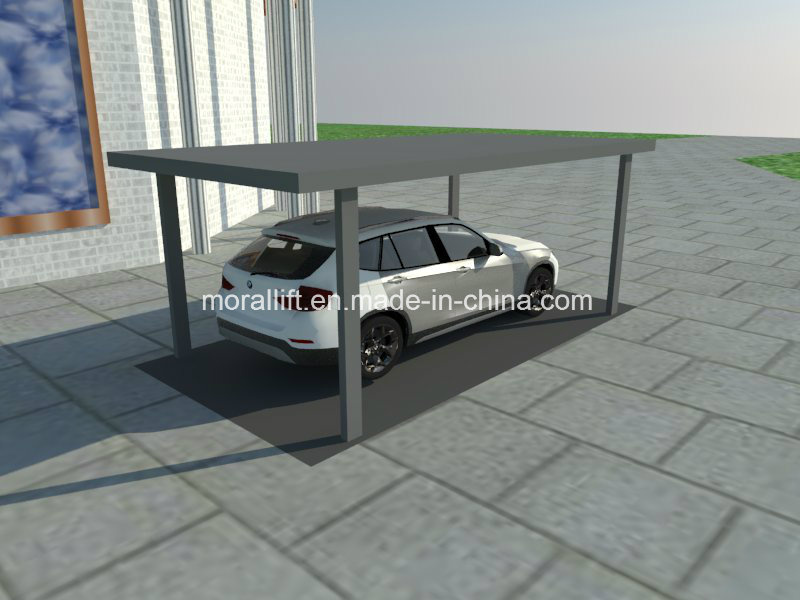

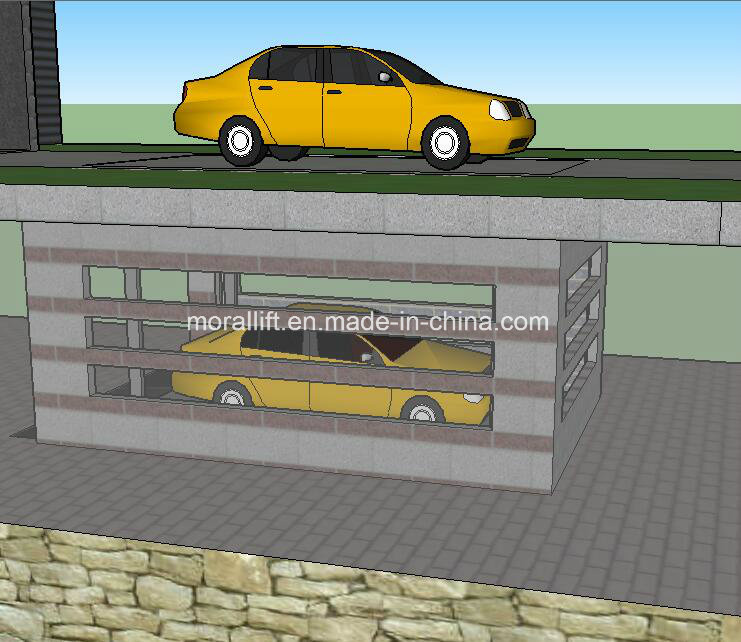

Ideal for outdoor installation such as in gardens or garage access zones, Duplo can double up parking spaces or hide vehicles completely underground, keeping the residential space free of clutter.

The platform can also be used for full size vehicles or those with a long wheel base.

The roof has an access hatch for maintenance, control and emergency access.This opening makes inspection easier, even during closed parking of unit.

Main Features:

Load capacity: 4000kg
Platform size: 5.5*2.5m
Lifting height: 5000mm/custom
Hydraulic drive system

Main Descriptions:

1) scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the lift to stop at accurate position.
3)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.
5)control system adopt elevator control system, very convenient and safety.
6)Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

Parameters:

Model	SJG4-5
Lifting capacity	4000kg
Lifting height	5000mm
Size of platform	5500 X 2500 mms. ( Diamond steel sheet metal )
Motor power	5.5kw
Power supply	AC 220V/380V 50HZ/60HZ
Speed	100mm/s
Weight	2950KG

Pictures:

Prod Model:	SJG
Load Capacity:	4000kg
Platform Size:	5500*2500mm
Lifting Height:	5000mm or Customized
Speed:	100mm/s
Control:	Button/Remote control
Platform:	Anti-skid steel top
Power:	5.5 Kw
Pit Depth:	560mm
After-Sale Service Provided:	Overseas Service Center Available
Warranty:	12 Months
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	4T
Certification:	CE
Design:	Scissor
Double Cylinder Lift Type:	Hydraulic Cylindar
Brand:	Moral
