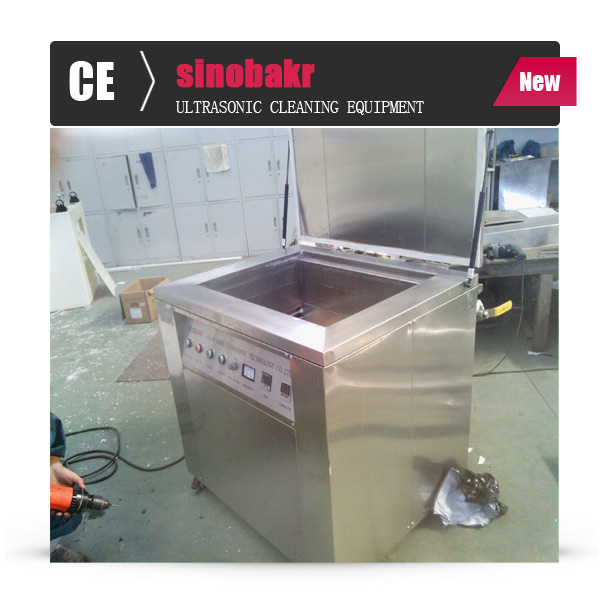

ultrasonic oil filter cleaning
Jinan Bakr Ultrasonic Technology Co.,Ltd.is a professional ultrasonic cleaning equipment R & D manufacturing, sales as one of the high-tech enterprises.We have engaged in ultrasonic cleaner manufacturing for ten years.The product include single-tank and multi-tank ultrasonic cleaning equipment with all kinds of specification and all kinds of semi-automatic and full-automatic ultrasonic cleaning line .ultrasonic oil filter cleaningadvantage
1. Bakr is the first one to use full-bridge IGBT high-power integration modules-Germany Siemens to control power source, good protection against high temperature, high pressure and overheating, makes the cleaner perfect.
2. Withstand high temperature. It can reach up to 80C, Siemens modules is of high pressure resistance, as transistor and filed effect tube can be easily be broken down by current under high voltage, not only affecting the normal function but also disturbing the transducer's frequency, Siemens can avoid this.
3. Siemens module control power is higher than other components; Bakr`s control circuit adopts the most advanced power adjustment according to different components.
4. Adopting original Germany CeramTec piezoelectric ceramic chip, high-precision CNC machine equipment and accurate test methods ensure Bakr high quality. And tank adopts expoted 2mmSUS304 stainless steel.
5. Good outlook, low defective rate, easy operation and professional style.
|
Model |
BK-120 |
BK-900 |
BKU-1800 |
BK-1800 |
BK-2400 |
BK3600 |
BK-4800 |
BK-6000 |
BK-7200 |
BK-10000
|
BK-12000 |
|
Ultrasonic Power |
120W |
900W |
1.8KW |
1.8KW |
2.8KW |
3.6KW |
5.2KW |
7.2KW |
8.0KW |
10.8KW |
21.6KW |
|
Heating Power |
none |
1KW |
4KW |
4KW |
6KW |
9KW |
12KW |
15KW |
18KW |
20KW or steam |
32KW or steam |
|
Voltage |
220V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
Tank Size(mm)
(length× width× height) |
240x140x100 |
400x300x300 |
700x400x350 |
600x480x450 |
750x550x480 |
1000x550x560 |
1200x650x650 |
1450x720x730 |
1500x800x800 |
1700x900x800 |
2200x1200x1000 |
Product Size(mm)
(length× width× height) |
400x300x350 |
560x460x600 |
1000x750x700 |
760x770x680 |
910x850x770 |
1160x850x870 |
1400x1030x980 |
1650x1190x1100 |
1700x1280x1150 |
1960x1450x1150 |
2500x1800x1350 |
|
Ultrasonic direction |
Down side |
Down side |
Down side |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
|
Dregs tank |
have |
have |
have |
have |
have |
have |
have |
have |
have |
have |
have |
|
Overflow device |
none |
none |
none |
have |
have |
have |
have |
have |
have |
have |
have |
Jinan Bakr Ultrasonic Technology Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of ultrasonic cleaning equipment. We are located in Jinan city, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering an area of 400, 000 square meters, we now have over 200 employees and an annual sales figure that exceeds USD8, 000, 000. We are currently exporting 60% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 & CE certifications.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Japan, Korea, Taiwan area, Thailand, Malaysia, Indonesia, Turkey, Syria, India, Pakistan, Brazil, Mexico, the USA, Europe, Canada, etc.
If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
