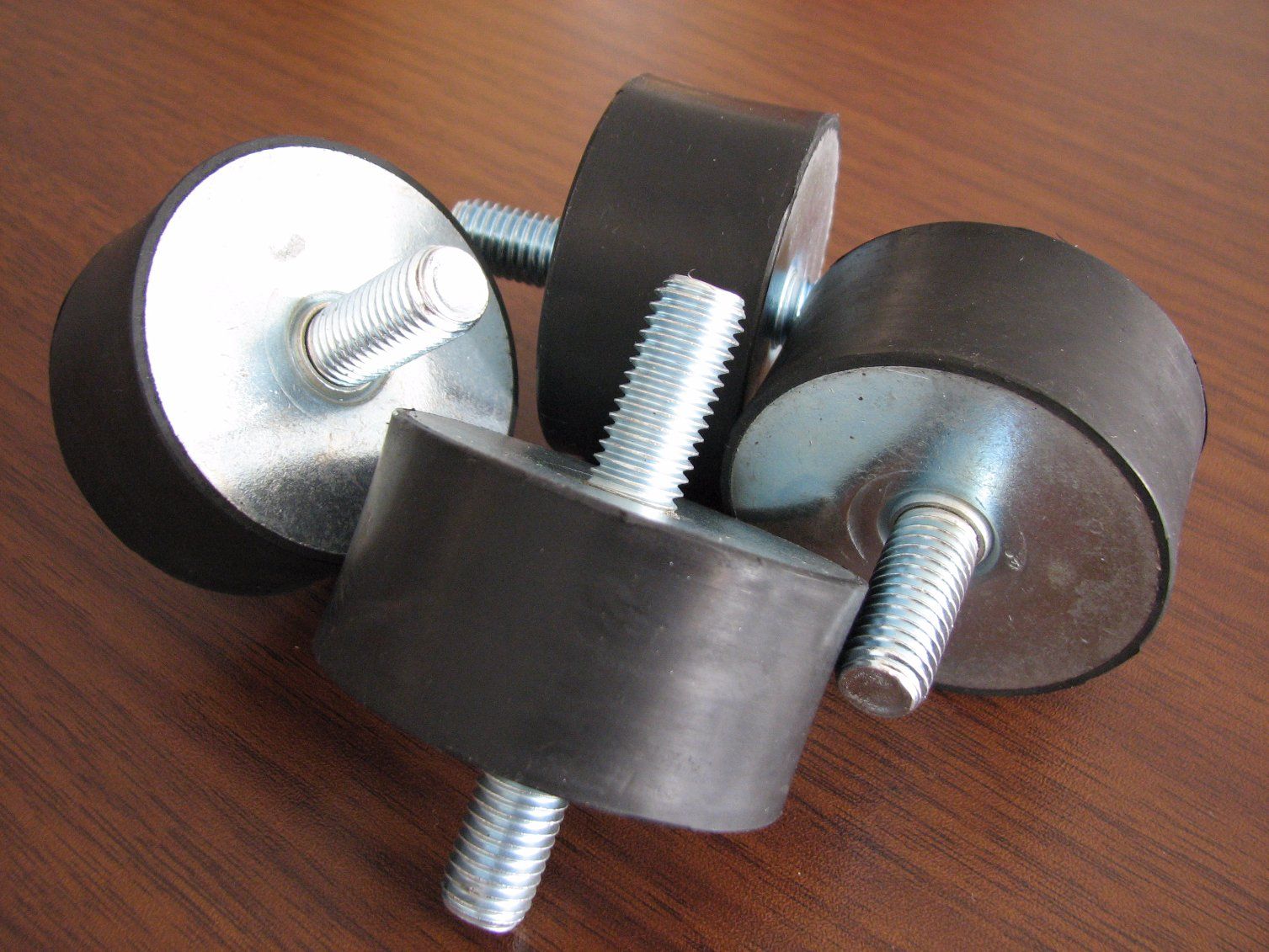

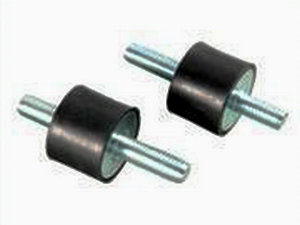

Physical character: the A-MM rubber mountings is one of shock absorber screw with professional technology, inimitable formulation and full set of moulds without mould cost. The two sides are male bolts made with high quality zinc coated metal and standard screwthread, the middle is high quality rubber of NR, NBR, EPDM, SBR etc.(currently rubber is NR). Apply to the anti-vibration and shock absorption for all kinds machinery, include mobile anti-vibration parts, health care equipment, machinery anti-vibration parts, computer parts.
Specifications:
Specifications:
material: galvanized metal + rubber
rubber: NR, NBR, EPDM, SBR etc.(default is NR)
quality: industrial grade
color: black
top: screw bolt
bottom: screw bolt
surface: smooth
tensile strength: 8Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***
Code |
A (mm) |
B (mm) |
M |
H / I (mm) |
A0607M3 |
6 |
7 |
M3 |
5 |
A0808M3 |
8 |
8 |
M3 |
4-6-10 |
A1008M4 |
10 |
8 |
M4 |
6.5-8-10 |
A1010M4 |
10 |
10 |
M4 |
6.5-8-10 |
A1015M4 |
10 |
15 |
M4 |
6.5-8-10 |
A1508M4 |
15 |
8 |
M4 |
6-8-10-14 |
A1510M4 |
15 |
10 |
M4 |
6-8-10-14 |
A1515M4 |
15 |
15 |
M4 |
6-8-10-14 |
A1520M4 |
15 |
20 |
M4 |
6-8-10-14 |
A1525M4 |
15 |
25 |
M4 |
8-10 |
A1508M5 |
15 |
8 |
M5 |
8-10 |
A1510M5 |
15 |
10 |
M5 |
8-10 |
A1520M5 |
15 |
20 |
M5 |
8-10 |
A1525M5 |
15 |
25 |
M5 |
8-10 |
A1610M4 |
16 |
10 |
M4 |
8-10-12 |
A1615M4 |
16 |
15 |
M4 |
8-10-12 |
A1620M4 |
16 |
20 |
M4 |
8-10-12 |
A1610M5 |
16 |
10 |
M5 |
8-10-12 |
A1615M5 |
16 |
15 |
M5 |
8-10-12 |
A1620M5 |
16 |
20 |
M5 |
8-10-12 |
A2010M6 |
20 |
10 |
M6 |
8-10-12-16-18-20 |
A2015M6 |
20 |
15 |
M6 |
8-10-12-16-18-20 |
A2020M6 |
20 |
20 |
M6 |
8-10-12-16-18-20 |
A2030M6 |
20 |
30 |
M6 |
8-10-12-16-18-20 |
A2510M6 |
25 |
10 |
M6 |
10-12-14-16-18-20 |
A2513M6 |
25 |
13 |
M6 |
10-12-14-16-18-20 |
A2515M6 |
25 |
15 |
M6 |
10-12-14-16-18-20 |
A2520M6 |
25 |
20 |
M6 |
10-12-14-16-18-20 |
A2522M6 |
25 |
22 |
M6 |
10-12-14-16-18-20 |
A2525M6 |
25 |
25 |
M6 |
8-10-12-16-18-20 |
A2530M6 |
25 |
30 |
M6 |
8-10-12-16-18-20 |
A2510M8 |
25 |
10 |
M8 |
8-12-14-18-20 |
A2513M8 |
25 |
13 |
M8 |
8-12-14-18-20 |
A2515M8 |
25 |
15 |
M8 |
8-12-14-18-20 |
A2520M8 |
25 |
20 |
M8 |
8-12-14-18-20 |
A2522M8 |
25 |
22 |
M8 |
8-12-14-18-20 |
A2525M8 |
25 |
25 |
M8 |
8-12-14-18-20 |
A2530M8 |
25 |
30 |
M8 |
8-12-14-18-20 |
A3010M6 |
30 |
10 |
M6 |
12-15-18 |
A3012M6 |
30 |
12 |
M6 |
12-15-18 |
A3015M6 |
30 |
15 |
M6 |
12-15-18 |
A3017M6 |
30 |
17 |
M6 |
12-15-18 |
A3020M6 |
30 |
20 |
M6 |
12-15-18 |
A3022M6 |
30 |
22 |
M6 |
12-15-18 |
A3025M6 |
30 |
25 |
M6 |
12-15-18 |
A3030M6 |
30 |
30 |
M6 |
12-15-18 |
A3035M6 |
30 |
35 |
M6 |
12-15-18 |
A3040M6 |
30 |
40 |
M6 |
12-15-18 |
A3010M8 |
30 |
10 |
M8 |
14-18-20-23-25-35 |
A3012M8 |
30 |
12 |
M8 |
14-18-20-23-25-35 |
A3015M8 |
30 |
15 |
M8 |
14-18-20-23-25-35 |
A3017M8 |
30 |
17 |
M8 |
14-18-20-23-25-35 |
A3020M8 |
30 |
20 |
M8 |
14-18-20-23-25-35 |
A3022M8 |
30 |
22 |
M8 |
14-18-20-23-25-35 |
A3025M8 |
30 |
25 |
M8 |
14-18-20-23-25-35 |
A3030M8 |
30 |
30 |
M8 |
14-18-20-23-25-35 |
A3040M8 |
30 |
40 |
M8 |
14-18-20-23-25-35 |
A4015M8 |
40 |
15 |
M8 |
14-18-20-23-25-35 |
A4020M8 |
40 |
20 |
M8 |
14-18-20-23-25-35 |
A4025M8 |
40 |
25 |
M8 |
14-18-20-23-25-35 |
A4028M8 |
40 |
28 |
M8 |
14-18-20-23-25-35 |
A4030M8 |
40 |
30 |
M8 |
14-18-20-23-25-35 |
A4035M8 |
40 |
35 |
M8 |
14-18-20-23-25-35 |
A4040M8 |
40 |
40 |
M8 |
14-18-20-23-25-35 |
A4045M8 |
40 |
45 |
M8 |
14-18-20-23-25-35 |
A4050M8 |
40 |
50 |
M8 |
14-18-20-23-25-35 |
A4015M10 |
40 |
15 |
M10 |
15-18.5-20-25-28-35 |
A4020M10 |
40 |
20 |
M10 |
15-18.5-20-25-28-35 |
A4025M10 |
40 |
25 |
M10 |
15-18.5-20-25-28-35 |
A4028M10 |
40 |
28 |
M10 |
15-18.5-20-25-28-35 |
A4030M10 |
40 |
30 |
M10 |
15-18.5-20-25-28-35 |
A4035M10 |
40 |
35 |
M10 |
15-18.5-20-25-28-35 |
A4040M10 |
40 |
40 |
M10 |
15-18.5-20-25-28-35 |
A4045M10 |
40 |
45 |
M10 |
15-18.5-20-25-28-35 |
A5015M10 |
50 |
15 |
M10 |
15-18.5-20-25-28-35 |
A5020M10 |
50 |
20 |
M10 |
15-18.5-20-25-28-35 |
A5025M10 |
50 |
25 |
M10 |
15-18.5-20-25-28-35 |
A5030M10 |
50 |
30 |
M10 |
15-18.5-20-25-28-35 |
A5040M10 |
50 |
40 |
M10 |
15-18.5-20-25-28-35 |
A5045M10 |
50 |
45 |
M10 |
15-18.5-20-25-28-35 |
A5050M10 |
50 |
50 |
M10 |
15-18.5-20-25-28-35 |
A6030M10 |
60 |
30 |
M10 |
15-18.5-20-25-28-35 |
A6035M10 |
60 |
35 |
M10 |
15-18.5-20-25-28-35 |
A6040M10 |
60 |
40 |
M10 |
15-18.5-20-25-28-35 |
A6045M10 |
60 |
45 |
M10 |
15-18.5-20-25-28-35 |
A6050M10 |
60 |
50 |
M10 |
15-18.5-20-25-28-35 |
A6030M12 |
60 |
30 |
M12 |
28-37 |
A6035M12 |
60 |
35 |
M12 |
28-37 |
A6040M12 |
60 |
40 |
M12 |
28-37 |
A6045M12 |
60 |
45 |
M12 |
28-37 |
A6050M12 |
60 |
50 |
M12 |
28-37 |
A7030M12 |
70 |
30 |
M12 |
28-37 |
A7040M12 |
70 |
40 |
M12 |
28-37 |
A7050M12 |
70 |
50 |
M12 |
28-37 |
A7525M12 |
75 |
25 |
M12 |
28-37 |
A7530M12 |
75 |
30 |
M12 |
28-37 |
A7540M12 |
75 |
40 |
M12 |
28-37 |
A7545M12 |
75 |
45 |
M12 |
28-37 |
A7550M12 |
75 |
50 |
M12 |
28-37 |
A8080M12 |
80 |
80 |
M12 |
35-45-57 |
A8080M16 |
80 |
80 |
M16 |
35-45-57 |
A10040M16 |
100 |
40 |
M16 |
35-45-57 |
A10050M16 |
100 |
50 |
M16 |
35-45-57 |
A10055M16 |
100 |
55 |
M16 |
35-45-57 |
A10060M16 |
100 |
60 |
M16 |
35-45-57 |
A100100M16 |
100 |
100 |
M16 |
35-45-57
|
