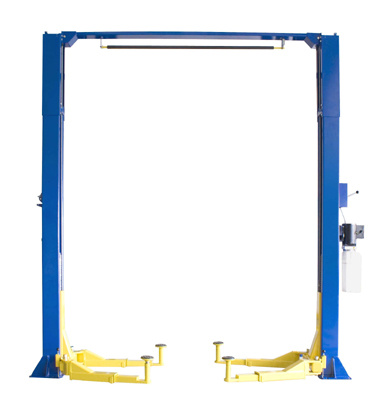

Two-Post Hydraulic Lift Car Lift (QL)

Two-Post Hydraulic Lift Car Lift (QL)
Price: US $ 600/Piece
Trade Terms: FOB
Min Order: 4/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Dual cylinders with low friction chain rollers.
Automatic arm restraints.
Electric override. Auto safety shut-off.
The lift is also equipped with dual cylinders with large lifting chain.
Great home Lift, reliable, safe, and tough built making it ideal for Homeowners.
Powder coated paint finish.
Model QL40 QL4L QL4W QL4M QL5M QL5E
Lifting Capacity 9000LBS 9000LBS 9000LBS 9000LBS 10000LBS 10000LBS
Lifting Height 1930-2090mm 1930-2090mm 1930-2090mm 1930-2090mm 1930-2190mm 1930-2190mm
Lifting Range 1820mm 1820mm 1820mm 1730mm 1730mm 1730mm
Lowest Height 110mm 110mm 110mm 110mm 110mm 110mm
Overall Height 2826mm 3604mm 3604mm 3604mm 3604mm 3604mm
Overall Width 3420mm 3420mm 3420mm 3420mm 3420mm 3420mm
Width Between Post 2799mm 2799mm 2799mm 2799mm 2799mm 2799mm
Drive Through 2400mm 2400mm 2400mm 2400mm 2500mm 2400mm
Lifting Time 50s 50s 50s 50s 50s 50s
Arm Reach: Min. 718mm 718mm 718mm 718mm 710mm 700mm
(Front) Max. 1055mm 1055mm 1055mm 1055mm 1392mm(3stages) 1078mm
Arm Reach: Min. 797mm 797mm 797mm 797mm 878mm 771mm
(Rear) Max. 1137mm 1137mm 1137mm 1137mm 1460mm 1235mm
Long Reach Arm 990---1460mm / / / / /
Cylinder Height(Full Rise) 2113mm 2113mm 2113mm 3603mm 3603mm 3603mm
Adapt Height: Low 33mm 33mm 33mm 33mm 33mm 33mm
Middle / / / / 76mm 76mm
High 127mm 127mm 127mm 127mm 152mm 152mm
Net Weight 590kg 630kg 630kg 655kg 684kg 654kg
Gross Weight 606kg 646kg 646kg 669kg 698kg 670kg
Gross Weight(Power Unit) 23.5kg 23.5kg 23.5kg 23.5kg 23.5kg 23.5kg
Prod Model: QL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function: Anti-Freeze
Type: Car Wax
"NU-LIFT" which is one of the best names in the market for more than 18 years, specializes in material handling & lifting equipment. We manufacture and represent more than 300 kinds of products. We have been striving to bring you high quality products at the competitive prices in the industry sectors.

Our advantages in material handling and lifting equipment line:

1. Our largest selection - offers you one-stop shopping

NU-LIFT can offer the most popular MHE products and lifting products used in industrial sectors, including engineering, manufacturing, logistic, packaging, and agricultural, and other commercial applications around the world.

2. More and more new items

Our R&D team is always concentrating in material handing and lifting equipment, and always launches 5~10 new products per year to meets customers' General and special requirements.

3. Best quality control

Our trained QA professionals are consistently working with our manufacturers to ensure that each product is factory inspected for quality, tolerance and performance. We sell top quality equipment at the best prices.

4. The Nu-Lift team - at your service

Any request regarding technical information, pricing and shipping information and quality claims will be always answered in 24 hours.

We truly appreciate your business and hearing your feedback. Your comments and suggestions help us continually serve you better.
