| Prod Model: |
K04-2275ECD5.82KCAXH |
| Part Number: |
53049880023 |
| OE Numbe: |
06A145704q, 06A145704qx, 06A145704qv |
| Shipping Way: |
TNT, DHL, FedEx, UPS, by Sea, by Air |
| Size: |
Standard Size |
| Balancing: |
High Than 150000 Rpm by Schenck Balancing Machine |
| Fuel: |
Diesel |
| Delivery Time: |
7-15 Days |
| Warrantly: |
12 Months |
| Engine Type: |
Bam, Bam Bfv |
| Displacement: |
1.8L, 1781 CCM V5 Quer, Transverse |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
CE |
Product Description

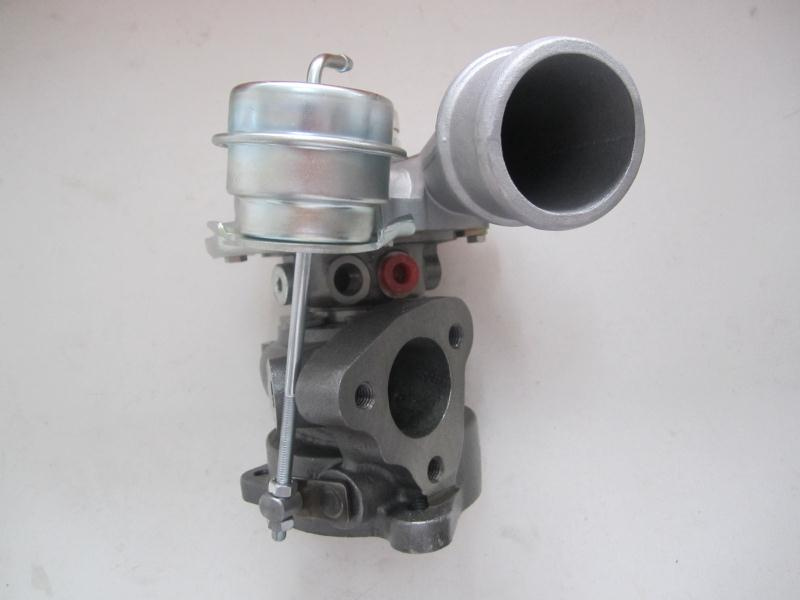

2000-09 Audi TT / S3 K04-023 Turbocharger 53049880023
Products Descreption:
| Part Number | 53049880023 |
| Previous Version | 5304-988-0023, 5304 988 0023 |
| OE number | 06A145704Q, 06A145704QX, 06A145704QV |
| Year | Sep-00 |
| Description | Audi TT, Audi S3 |
| Manufacturer Part Number | 53049700023, 5304-970-0023 |
| CHRA | 53047100507 (5304-710-0507, 1302004907) |
| Turbo Model | K04-2275ECD5.82KCAXH |
| Turbine Wheel | 53041205015/53041205010 (Ind. 50. mm, Exd. 42. mm, 12 Blades) (1302004437) |
| Comp. Wheel(milled titanium) | 53041232015/53041232013/53041232203 (1302003411)(Ind. 41.86 mm, Exd. 56.06 mm, 4+4) |
| Back plate | 53041515708 (1302003306) |
| Heat Shield | 53041652000 (1302003341) |
| Repair Kit | 53037110000 (1302003752) |
| Turbine Housing | 53041008003 |
| Compressor Cover | 53041015030 |
| Turbine Housing AR | 5 |
| Actuator | 58251104082 |
| Settings Waste gate (pressure) | 0.50 bar |
| Settings Waste gate (lift shaft) | 5.50 mm |
| Gasket (turbine inlet) | 210646 (INOX Steel) $13.34 |
| Gasket (turbine outlet) | 210676 (INOX Steel) $13.34 |
| Gasket (oil outlet) | 210317 (Paper) $2.89 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
| Condition | Rebuilt |
Application:
2000-09 Audi S3, TT BAM, BAM BFV
2000- Audi S3 1.8L T Engine BAM
2000- Audi TT 1.8L T (8N) Engine BAM BFV
2004- Audi TT 1.8L T (8N) Engine BAM BFV
2003-05 Seat Leon 1.8L T Cupra R Engine BAM
Package:
1. Mold foam
2. Plastic bag
3. Strong Canton Pallet
Please don't worry about package, we promise that our turbocharger reach you intactly.
Shipping:
1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
Company Introduction:
Refone AUTO POWER is committed to delivering the highest standard of quality and safe products and services to our customers.
Refone auto power is an outstanding corporation manufacturing and selling all kinds of high quality turbocharger and spare parts, such as Shaft & wheel, Compressor wheel, Cartridge (CHRA), Repair kits, Thrust collar & spacer, Journal bearing, Thrust bearing, Piston ring, Compressor housing, Compressor housing, Bearing housing, Turbine housing, Turbine housing adapter, Back plate (seal plate, insert), Heat shield, Actuator, Oil deflector, V-band, Shaft nut, Gasket and so on.
Advantages:
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Provide customized service.
After-sales Service:
1. Take photos, sending back for testing.
2. Send new turbo to customer.
