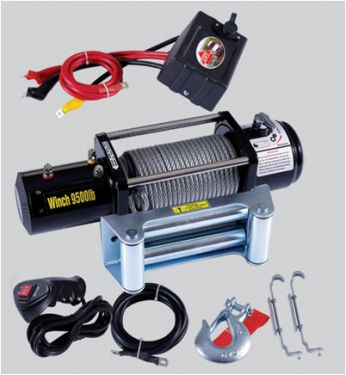

Car & Truck Winch
High quality Car & Truck Winch.
Rated line pull: 9500LBS(4300kgs) single line.
Motor: 5.5HP/4.0kw, Series Wound.
Control: Remote switch, 12ft (3.7m)lead.
Gear train: 3 Stage Planetary.
Gear reduction ratio: 195.4: 1.
Clutch: Sliding Ring Gear.
Braking Action: Automatic In-The-Drum.
Drum Size: Φ 2.5X8.8" (Φ 63.5mmx224mm).
Cable: 94ft of 5/16 diameter (28m of 8.3mm diameter).
Fairlead: 4-Way Roller Fairlead.
Remote Control: Included.
Battery: Recommended: 650CCA minimum for winching.
Battery Leads: 2 gauge, 72(183mm).
Finish: Black powder coat.
Overall Dimension: 21.1X6.3X8.6".
(537mmx160mmx218mm).
Mounting Bolt Pattern: 254mmx114.3mm.
Weight: N. W. 36kgs G. W. 38Kgs.
Packing size: 57X19X34.5cm 1PC/CTN.
.Automatic load holding break for safety.The clutch allows you to release winch rope by hand.
Aircraft grade wire rope, or synthetic rope is optional
Remote switch + wireless remote controlproof.Sealed aluminum body, waterproof winch
We have 100% testing on winch pulling capacity and function. Our products are of well-designed, beautiful appearance and easy to install.
Company Information:
Arch Auto Equipment is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable. Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment's equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate. Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' cooperation. Arch Auto Equipment is willing to join hands with any partner for a bright future.
Our company website:http://www.ArchAutoEquipment.com
|
Modle |
AAE-S95 |
|
N.W |
36kg |
|
G.W |
38kg |
|
Packing Size |
57*19*34.5cm 1PC/CTN |
|
Funciton |
Car&Truck winch |
|
Motor |
5.5HP/4.0KW |
|
Drum Size |
2.5"*8.8" |
|
Overall Dimension |
537mm*160mm*218mm |
