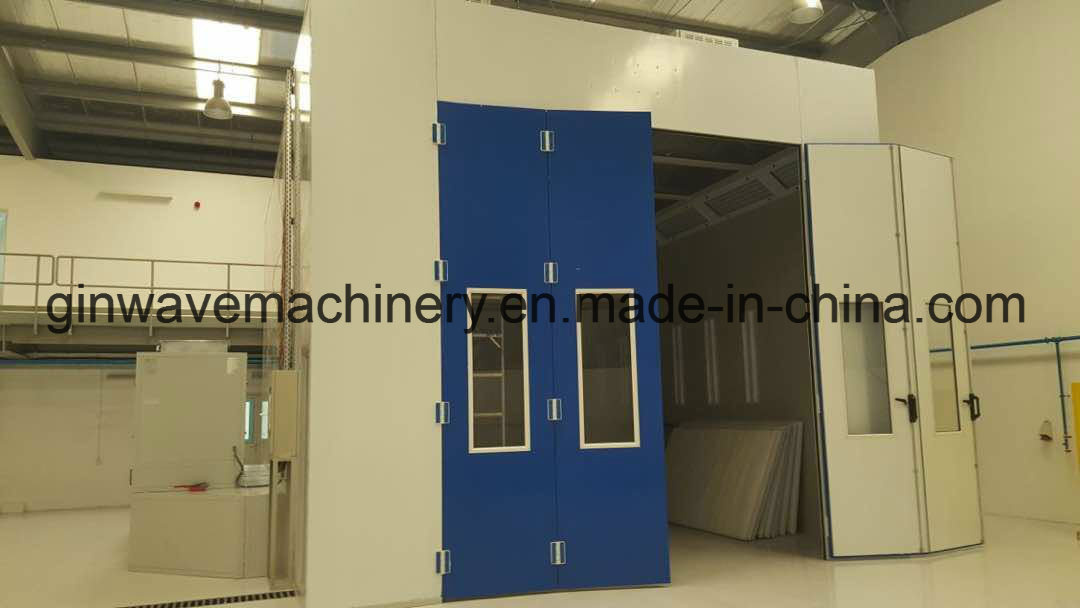

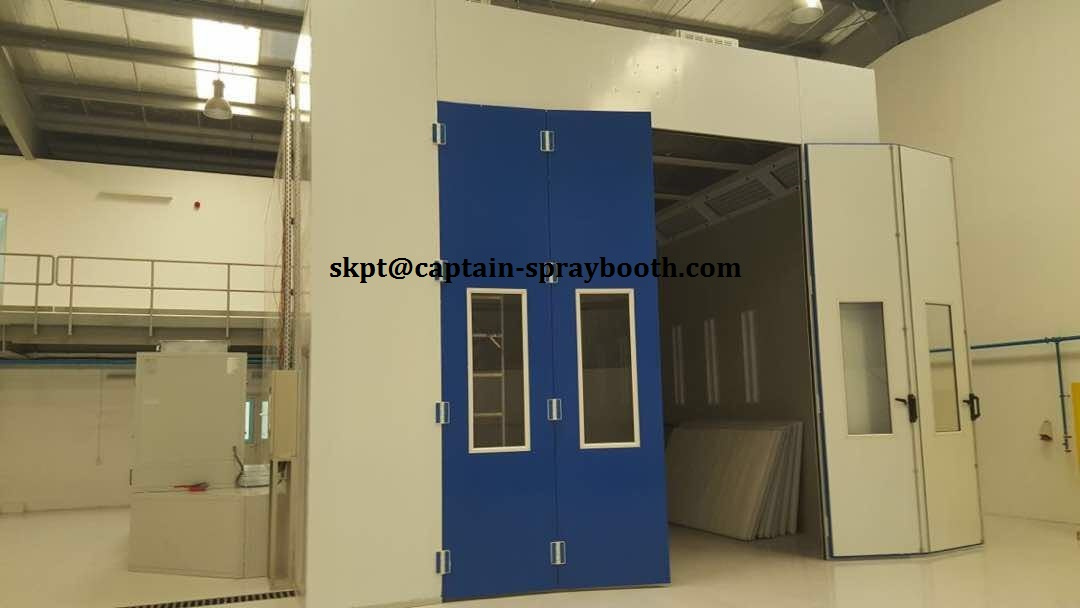

Truck/Bus Paint Booth Spray Booth with Factory Price
Price: |
US $ 25600/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Outside Size(mm) | 15150x6850x3300 | Inside Size(mm) | 15000x4000x2700 | Front Door(mm) | 3000x1600(WxH) | Total Power | 62 kw |
Ventilation System | Intake fan:2X7.5KW intake centrifugal fan, , air capacity:84000m3/h;Exhaust fan: 2Pcs 11KW intake centrifugal fan, air capacity:15000m3 /h; equipped with ventilation pressure controller, Pneumatic damper. The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with 30mm rock wool inside. |
Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. Joint by hinge, so it's convineit for changing filter. Sliding dolly is on the top for painting and baking small workpieces. |
Lighting System | tubes x 16 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle,to ensure no double image and blind area, illuminance>=1200Lux. Outside structure for conveniet maintenance. 40pcsx30w side lights in vertically embedded into the wall. The protection glass is 5mm tempered glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
Heating System | Italy RIELLO G20 diesel burner, 200000Kcal/h. Heating exchanger is made of δ=2.0mm sus304 stainless steel by argon arc welding, total 4 sets, 800000Kcal/h. |
Residual heat recovery system(optional) | frame is soldered by 40mmx60mm square tube, The surface sealing plate is made of δ=0.8mm galvanized steel and with 30mm rockwool inside.Residual heat saver is made of δ=2.0mm sus304 stainless steel by argon arc welding. It saves the energy by secondary utilization of residual heat recovery. |
Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist.And active carbon for the waste gas. |
Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & bakin switch, light switch, emergency stop, breakdown alarm, etc. |
the same price higher quality, the same quality lower prices.
*2 years quality warranty!!!
*Fast and stable supply ability!!!
*Personalized design to meet customer various needs!!!
Over 14 years big spray booth factory;
Powder coating technology treatment;
Factory price and best quality;
OEM available.
Prod Model: |
150427006RCA |
Inside Size: |
15000X4000X2700 |
Outside Size: |
15150X6850X3300 |
Front Door(mm): |
3000X1600(Wxh) |
Intake Fan: |
2X7.5kw Intake Centrifugal Fan |
Exhaust Fan: |
2PCS 11kw Intake Centrifugal Fan |
Lighting System: |
Tubes X 16 Teams X 36W Famous Brand Lights with E |
Heating System: |
Italy Riello G20 Diesel Burner,4 Sets |
Certification: |
CCC |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Brand: |
Captain |
