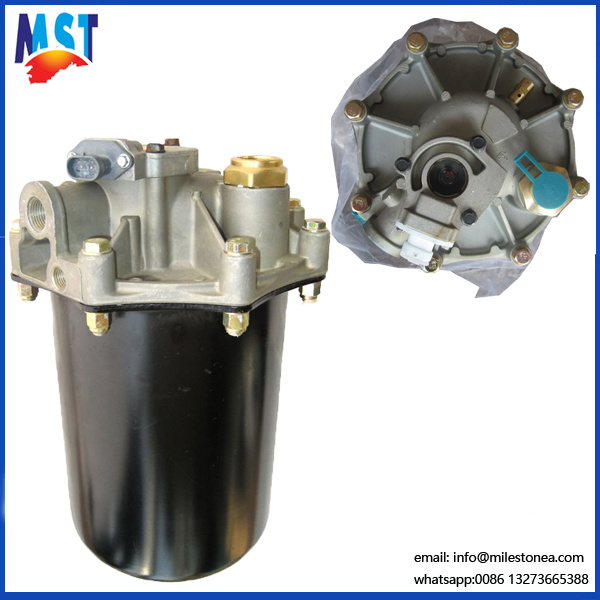

Truck Air Pressure Air Dryer Unit AD-9 With Mounting Bracket
| Product name | air filter air dryer assembly 4324102412 for Steyr Iveco |
| Description | Air Dryer |
| OEM No. | AD-9
PAI Part No. LAD-5586,
Bendix Part No : 065225,
MAK26QE377 |
| SIZE | 7.20" X 16.50" |
| truck model | Mack & Freightliner, Kenworth, Ineternational |
| Cross Reference No.(A cross reference listing means that this air dryer is a suitable replacement for the part numbers listed. Some changes in plumbing and/or installation may be required) | 065226, 107953, 107953X, 109685, 109685X, 65226, R1096859002783, 23880305, F0HZ2A131A, FOHZ2A131A, 4317715, 681410115, BW065225, 15665475, 26QE377, 26QE377P4, 26QE377P5, 26QE377P6, 745065225, 1673737C91, BX065225, ZAC065225, 1091606, 2FS82, 917352 |
| reference standard | 1. Supply port(1): 1/2in P.T
2. Delivery Port(1): 1/2in P.T
3-Desiccant: Molecular Sieve
4-Application: For use in standard air-brake applications on truck, tractors, and buses
5-Including mounting bracket kit and wire harness kit;
6-12 Volt DC heater
7-Hard seat purge valve |
| Material | mounting Bracket and Wire Harness Alloy |
| Brand | MST |
| Sample/Stock | Available |
| Feature | 100% New |
| Packing | 1. Customized
2. Neutral packing
3. MST packing |
| Payment | T/T L/C Money Gram Western Union |
| Trade Terms: | FOB CIF EXW |
| Delivery time | 20-25working days or according to the order quantity |
| Shipping port | TIANJIN SHANGHAI NINGBO or GUANGZHOU |
| MOQ |
| AIR FILTER | OIL FILTER
FUEL FILTER |
| CAR | 500-1000 | 1000 |
| HEAVY TRUCK | 100 | 100 |
The function of the AD-9 air dryer is to collect and remove air system contaminants in solid, liquid and vapor form before they enter the brake system. It provides clean, dry air to the components of the brake system which increases the life of the system and reduces maintenance costs. Daily manual draining of the reservoirs is eliminated.
The AD-9 air dryer consists of a desiccant cartridge and a die cast aluminum end cover secured to a cylindrical steel outer shell with eight cap screws and nuts. The end cover contains a check valve assembly, a safety valve, three threaded air connections and the purge valve housing assembly. The removable purge valve housing assembly incorporates a purge valve mechanism and a turbo charger cut-off feature that is designed to prevent loss of engine "turbo" boost pressure during the purge cycle of the AD-9 air dryer. For ease of serviceability, the desiccant cartridge and discharge check valve assembly are screw in type. The purge valve housing assembly, which includes the heater and thermostat assembly, and the discharge check valve assembly, is serviceable from the exterior of the air dryer, while servicing the screw-in desiccant cartridge requires removal of the air dryer assembly from the vehicle.
Company Information
Established in 1990, Xingtai Milestone is a professional manufacturer and exporter that is concerned with the design, development and production of auto filter, industrial filter etc.Our products comply with international quality standards, so that they are greatly appreciated in most markets around the world.
We have over 100 employees and more than 0.5 million USD. Among the auto parts, 65% were exported worldwide. Their well-equipped facilities and excellent quality control throughout all stages of production have won customers' satisfaction. As a result of high quality and outstanding customer service, we have gained a global sales network reaching America, European, South America, Middle East and Asia etc. If you are interestedwelcome to visit www.milestonea.com.
Looking forward to forming deep business relationships with you.
Packaging & Delivery &
Packaging Detail:
1. Acquiescently neutral packing
2. According to the customers' request
Delivery Detail: Within 20days after deposit
Specifications
1. Made of high quality material
2. Used to prevent against leakage
3. High efficiency and reasona
4. Lubrication system
A)Good resistance of high or low temperature
B)Good resistance of corrosion
C)We can provide various types
D)Apply to car/trucks/heavy machine/power station/acoating powder/heavy duty engine
Oil filters can help minimize the the friction generated during working between components, reduce energyconsumption and parts damages.
At the same time, they will also remove dust, prills and other impurities to protect engines from breakdown.
Quality Certificate:
ISO 9001 , TS 16949
Main products:
oil filter
fuel filter
air filter
air dryer cartridge
fuel pump
Oil-water separator assembly
filter element(Eco-friendly)
and so on.
Advantage of MST Filters:
1.High filtration efficiency
2.Long life
3.Less engine wear, reduce fuel consumption
3.Easy to install
4.Product & service innovations.
Applicable For:
1. Great filtering power, durability, single or double effected. Manufacturer, favorable and honest price, quality and service come first.
2. Keep dust and particle out of combustor, change the air in cumbustor, ensure sufficient burning.
Air filter reduce engine parts dissipation, avoid dark smoke and make engine aprts work normally.
Our Service
1. Your inquiry will be responded within 24 hours.
2. The best team are to answer all your inquiries.
3. Working time: 8:30am - 6: 00pm, Monday to Saturday (UTC+8).
4. Good after-sale service offered, please get back if you got any question.
5. Free samples as required.
6. Welcome to our company and factory!
FAQ:
1. What's Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What's kind of your packaging?
A:MST packaging or customer's requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
welcome to imquiry : Ms Happy Zhang + 0086 18131921669
BOSSA GROUP is one group company that produce various of casting &machining parts, Engine filters for trucks and tractors etc. The head office is in Xingtai city.
Xingtai Bossa Machinery Manufacturing Co., Ltd. is one branch factory of Bossa Group for casting and machining, that located in Xingtai high-tech development zone, is a manufacturer that specializes in supplying OEM and ODM casting and machining spare parts for customers since 1991. It covers an area of over 40000 square meters and an architectural area of 12000 square meters,
Bossa Machinery mainly produce the casting & machining products for heavy duty trucks, agricultural machinery and construction machinery. The leading products: Axles, wheel hub, brake drum, brake shoe, leaf spring bracket, transmission box, cylinder block, cylinder head etc casting goods. Some times we help customer make the Axle assemble etc.
Xingtai Milestone Import & Export Trading Co., Ltd is one branch company of Bossa Group, That specialized in designing, developing producing and selling all kinds of engine filters for generators, construction machines, commercial vehicles, buses, agricultural machinery, heavy-duty trucks etc.
For our filter quality are good and instead of original ones used in the after-sales market. Such as Fleetguard Perkins, Deutz, Caterpillar, Komatsu etc.
BOSSA GROUP use advanced technology and a quality management system to guarantee the quality of products. According to ISO9001 system standard, We formulate perfect quality inspection standards and establish a scientific and strict quality guarantee system. 30% our products according to customer's drawing or sample.
BOSSA and MST are our Logo used for overseas market. All of our goods import and export through our Milestone company. We will use about 10 years and make as famous brand in the word.
We believe that quality is a life of one enterprise and service creates future.
Welcome customers all over the word to contact us.
