The Detial of Our Rims
____________________________________________________
SIZE inch | INOFFSET mm | OUTOFFSET mm | max load kg | Thickness mm | bolt hole | center hole mm | PCD mm | dia for bolt hole mm |
|
22.5*7.5 | 136 | 159 | 3550 | 23 | 10 | ø281.2 | ø335 | ø24 |
ø26 |
ø26.75 |
ø32 |
ø32.5 |
136 | 159 | 3550 | 23 | 10 | ø220 | ø285.75 | ø24 |
ø26 |
ø26.75 |
ø32 |
ø32.5 |
136 | 159 | 3450 | 23 | 8 | ø221 | ø285 | ø24 |
ø26 |
ø26.75 |
ø32 |
ø32.5 |
136 | 159 | 3310 | 23 | 8 | ø221 | ø275 | ø24 |
ø26 |
ø26.75 |
ø32 |
ø32.5 |
139 | 162 | 3550 | 23 | 10 | 281.2 | 335 | 26 |
139 | 162 | 3450 | 23 | 8 | 221 | 285 | 32.5R22 |
22.5*8.25 | 145 | 168 | 3650 | 23 | 10 | ø281.2 | ø335 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
145 | 168 | 3650 | 23 | 10 | ø220 | ø285.75 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
144.5 | 169 | 3650 | 24.5 | 10 | ø220 | ø285.75 | ø26 |
145 | 168 | 3650 | 23 | 10 | ø221 | ø285.75 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
145 | 168 | 3356 | 23 | 8 | ø221 | ø275 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
145 | 168 | 3356 | 23 | 8 | ø221 | ø285 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
ø32R22 |
ø32.5R22 |
144 | 167.5 | 3650 | 23.5 | 10 | ø281.2 | ø335 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
144 | 167.5 | 3650 | 23.5 | 10 | ø220 | ø285.75 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
144 | 168 | 3650 | 23.5 | 10 | ø221 | ø285.75 | ø26 |
ø281.2 | ø335 | ø26 |
144 | 167.5 | 3356 | 23.5 | 8 | ø221 | ø275 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
144 | 167.5 | 3356 | 23.5 | 8 | ø221 | ø285 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
ø32R22 |
ø32.5R22 |
22.5*9 | 152 | 176 | 4125 | 24 | 10 | ø221 | ø285.75 | ø26 |
ø26.75 |
ø32R22 |
ø32 |
ø32.5 |
152 | 176 | 4125 | 24 | 10 | ø281.2 | ø335 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
151.75 | 176.75 | 4700 | 25 | 10 | ø281.2 | ø335 | ø26.75 |
151.75 | 176.75 | 4700 | 25 | 10 | ø281.2 | ø335 | 32.5 |
151.75 | 176.75 | 4700 | 25 | 10 | ø281.2 | ø335 | 26 |
22.5*11.75 | 0 | 23 | 4500 | 23 | 10 | ø281.2 | ø335 | ø26 |
ø26.75 |
0 | 25 | 4500 | 25 | 10 | ø281.2 | ø335 | ø26 |
0 | 23 | 4500 | 23 | 10 | ø220 | ø285.75 | ø26 |
ø26.75 |
0 | 23 | 4500 | 23 | 10 | ø281.2 | ø335 | ø26 |
0 | 24 | 4500 | 24 | 10 | ø281.2 | ø335 | ø26 |
0 | 23 | 4500 | 23 | 10 | 281.2 | 335 | 32 |
0 | 23 | 4500 | 23 | 10 | 281.2 | 335 | 32.5 |
120 | 143.5 | 4750 | 23.5 | 10 | ø281.2 | ø335 | ø26 |
ø26.75 |
120 | 143.5 | 4750 | 23.5 | 10 | ø220 | ø285.75 | ø26 |
120 | 143.5 | 4750 | 23.5 | 10 | ø220 | ø285.75 | ø26.75 |
120 | 143.5 | 4750 | 23.5 | 10 | ø281.2 | ø335 | ø26 |
120 | 143.5 | 4750 | 24 | 10 | ø281.2 | ø335 | ø32 |
120 | 143.5 | 4750 | 24.5 | 10 | ø281.2 | ø335 | 32.5 |
22.5*13 | -14 | 14 | 5300 | 28 | 10 | ø221 | ø285.75 | ø26 |
ø26.75 |
-14 | 14 | 5300 | 28 | 10 | ø281.2 | ø335 | ø26 |
ø26.75 |
-14 | 14 | 5300 | 28 | 10 | ø220 | ø285.75 | ø26 |
ø26.75 |
-14.5 | 14.5 | 5300 | 29 | 10 | 281.2 | ø335 | 26 |
-14 | 14 | 5300 | 28 | 10 | 281.2 | 335 | 32.5 |
24.5*8.25 | 144 | 167 | 3650 | 23 | 10 | ø281.2 | ø335 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
ø32R22 |
144 | 167 | 3650 | 23 | 10 | ø220 | ø285.75 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
ø32R22 |
144 | 167 | 3650 | 23 | 10 | ø221 | ø285.75 | ø26 |
ø26.75 |
ø32 |
ø32.5 |
ø32R22 |
143.5 | 167.75 | 3650 | 24.5 | 10 | 220 | 285.75 | 26 |
143.5 | 168 | 3650 | 24.5 | 10 | 220 | 285.75 | 26.75 |
144 | 168 | 3650 | 24.5 | 10 | 220 | 285.75 | 26.75 |
HIGH STRENGTH ,SAFE AND RELIABLE
____________________________________________________

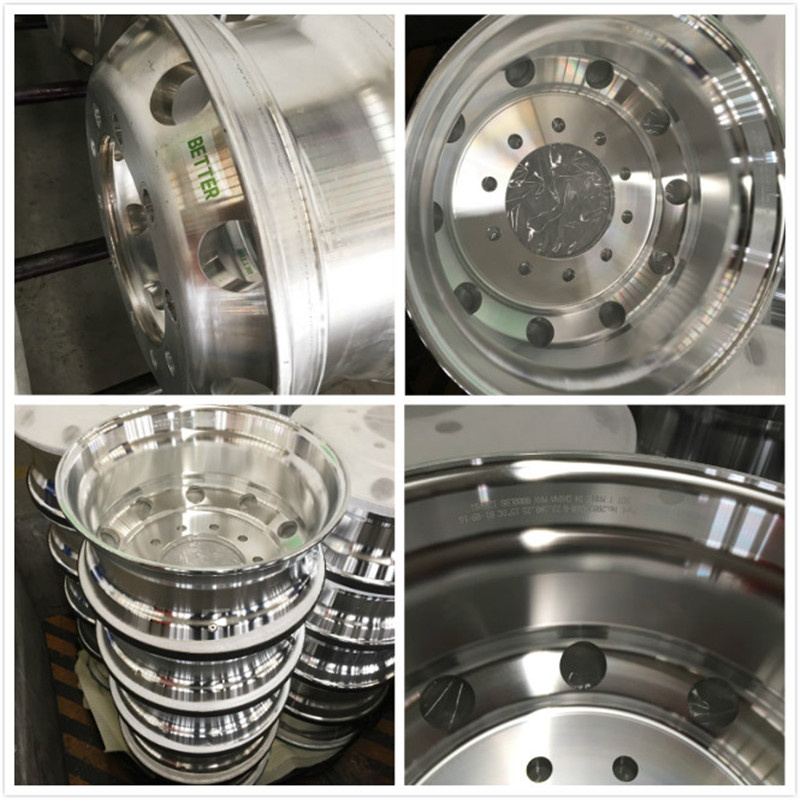

a)High loading
Loading capacity of forged alloy wheel is 5 times than common iron wheel.forged wheels has a deformation of 5cm when carrying 71200kg while comon iron wheel just carrying 13600kg .In other words ,strength of forged alumium wheel is 5 times than iron wheel
b)Impact test
we simulated a lorry crashed into a curb stone at over 50km/h,equivalent to a weight of 910kg falling from a height crashing into the tire and wheel.Jananese VIA certificated the analog test result of test equipment :Forged alloy wheels just got minor damage ,but the iron wheel is very serious .

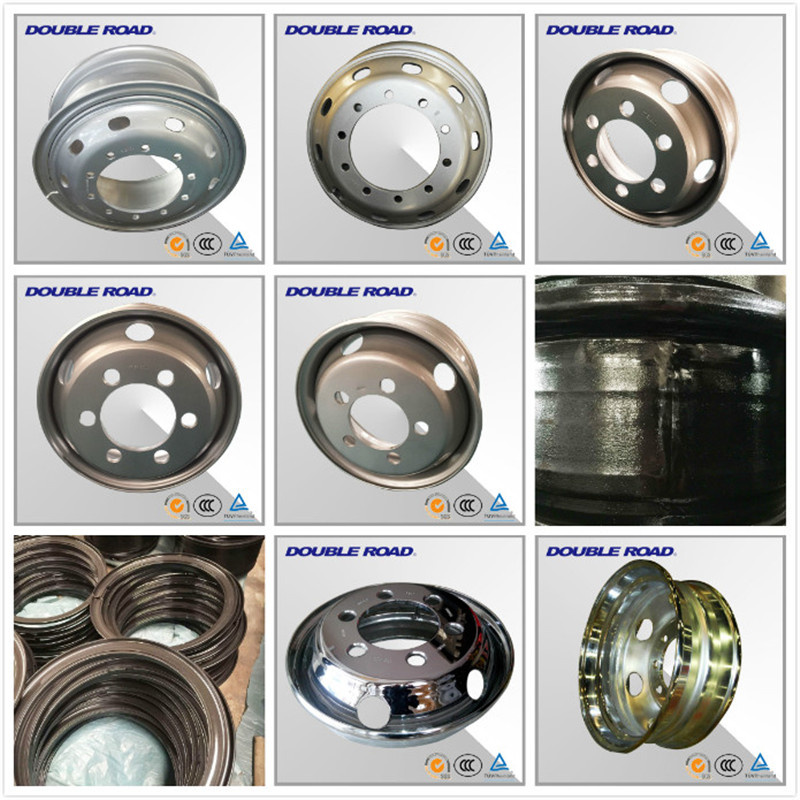

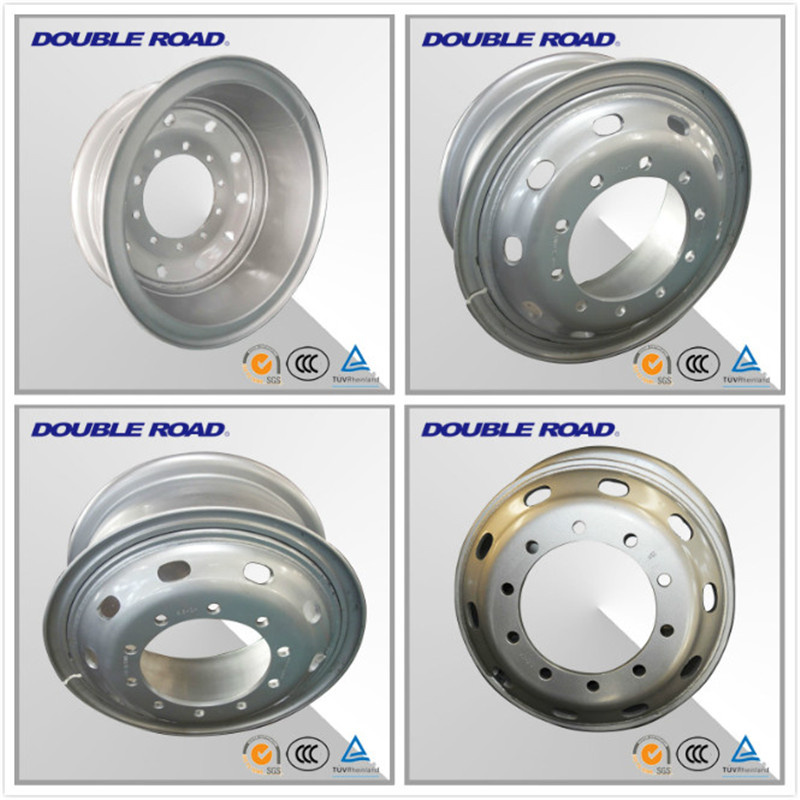

Other Rims
____________________________________________________ why choose us?
1.We are Gold Supplier of Made-in-China since 2005.
2.Full certificates guarantee the quality of our products. 3.regular pattern daily stock: about 200,000 pieces
delivery time for truck tire:in 7 days after receiving your deposit
delivery time for car tire :in 15 days after receiving your deposit
4.Free Ad.Gift:DOUBLE ROAD T-shirts/clocks/bags/caps/USB-disk/pen/posters...
FAQ:
____________________________________________________ Q:Can I load several sizes and patterns in a container?
A:Sure!
Q:what is the payment term?
A:30% as deposit in advance and 70% against bl copy; LC at sight
Q:What is the delivery time for my order?
A:7 days delivery for truck an bus tires; 15 days delivery for passenger car tires
Q:What is the benefit for the exclusive agency ?
A:1. Special price or discount in some months;
2. Market Protection ;
3. Priority delivery;
4. Free promotion materials: caps, T-shirt, Shops decoration
Established in 1984, Q&J TIRES GROUP is one of the most professional and the largest tire manufacturers in China. One of its tire brands--DOUBLE ROAD is very popular among clients at home and abroad.
Through continuous efforts and progress over the past decades, Q&J TIRES GROUP has possessed the advanced equipments and employed senior technicians. The moulding machine and other main production equipments were introduced from PIRELLI in Italy, VMI in Holland, and SUNGWOO HITECH in South Korea. Some technicians are from the world top-grade factories, such as Michelin, Pirelli and Hankook.
Nowadays Q&J TIRES GROUP has a very strict test and management process from the selection of raw materials to the inspection of the finished tires products, which offers a powerful warranty for our tyres to win customers' Preference.
Q&J TIRES GROUP has the annual production: 2.2 millions sets of all steel radial tyres, 5 million sets of semi-steel tyres, 5.5 million sets of motorcycle tyres, 10 million sets of bicycle tyres, and 0.5 million sets of industrial tyres. Q&J TIRES Group passed and got certificates of DOT, ECE, REACH, SONCAP, GCC, BIS, etc. Now the company is supplying tires to the main auto factories in China, such as Sinotruck, FAW, SGMW etc. Meanwhile, the company are exporting great volume tires to Europe, America, Latin America, Africa and Middle East countries.
Q&J TIRES Group will keep the philosophy of "Honesty based, Quality and Customer first, creating a harmonious society" to make itself more competitive, and create a better future!
Q&J TIRES Group is willing to build a long term business relationship with any companies from all over the world.
