Prod Model: |
CH-200 |
Fuel: |
Electric |
Certification: |
CE |
Material: |
Metal |
Condition: |
New |
Product Description
Features:1. this is a no brush machine,so don't worry about the brush hurting cars.
2. also it is small,just 3.95m*4.1m*2.86m,so need small space to install.save space.
3. lower price than other models,fashion appearance.rich bubble.will attract many people to wash.
4. swing arm move in 360 round,can clean any where of cars.
6. 80% key parts from japan,guarantee the best quality
7. use japanese technology by MK company who is the largest car wash machine manufacture in japan,so the most advanced technology in same area.
8. washing speed:12-15 sets per hour.

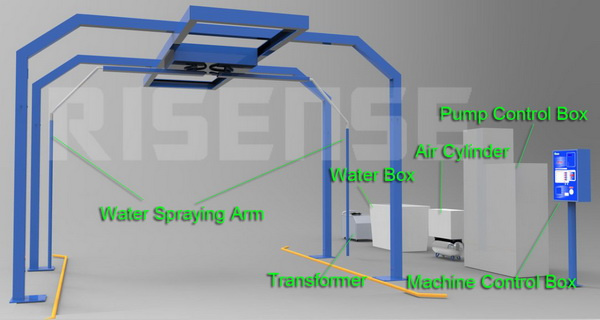

| item | touchless car wash machine CH-200 |
| model no. | CH-200A | CH-200B |
technical parameter | machine size | L3.95m×W4.1m×H2.86m | L3.95m×W4.1m×H2.86m |
(the narrowest width:3.45m) | (the narrowest width:3.45m) |
assembling range | L6300mm×W4500mm | L6300mm×W4500mm |
move range | L6200mm×W4500mm | L6200mm×W4500mm |
power required | AC380V50Hz 10KVA | AC380V50Hz 10KVA |
water required | pump DN25 f≥100L/min | pump DN25 f≥100L/min |
gas required | 0.75~0.9Mpa/flow≥0.1m³/min | 0.75~0.9Mpa/flow≥0.1m³/min |
Surface roughness | error≤10mm | error≤10mm |
wash type | car,jeep,or coach within 10 seats | car,jeep,or coach within 10 seats |
car size | L5.2m×W2.3m×H2.3m | L5.2m×W2.3m×H2.3m |
washing time | 1.5minute(2 roll over) | 1.5minute(2 roll over) |
functional configure | the water jet system | 1 set | 1 set |
shampoo spraying system | 1 set | 1 set |
wax spraying system | none | 1 set |
bottom wash | optional | optional |
high pressure water gun | optional | none |
Hydrophobic bright coating | optional | optional |
voice system | none | have |
key component | galvanized coating frame | 1 set | 1 set |

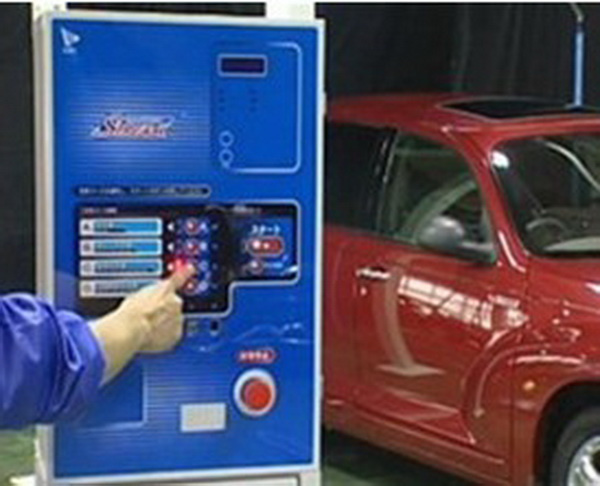

electronic control system | CPU control system(MK in japan) | CPU control system(MK in japan) |
trolley system | 1set | 1 set |
pump | 35KG high pressure plunger pump | 25kg vertical centrifugal pump from Grundfos(denmark) |
frequency transformer | Mitsubishi(japan) | Mitsubishi(japan) |
air cylinder | kojanei(japan) | Kojanei(japan) |
liquid metering pump | Three Peace(japan) | Three Peace(japan) |
reducer Motor | TSUBAKI(japan) | TSUBAKI(japan) |
Built in 900VA transformer | 1 pc | 1 pc |
cost consumption | water consumption | 120L/set | 120L/set |
Power consumption | 0.15kwh/set | 0.15kwh/set |
shampoo consumption | 7ml/set | 7ml/set |
wax consumption | 12ml/set | 12ml/set |
Risense Automated Car Wash Machine have a proven, time-tested track record in providing solutions for:
1. Car wash center
2. Motor beauty shop
3. Car service and repair center
4. Auto 4S shops
5. Gas station
6. Parking lot
7. Hotel and Hospital
8. Community services center
9. The construction industry
10. Industrial wash down
