Top 7 reansons to get Original Autel DS708:
1. Support over 40 car brands
2. Updates online for free within 1 year
3. With big touchscreen,Wi-Fi
4. Authorized distributor
5. Powerful Function
6. Support multi-language: English, French, Spainish, Italian, German, Janpanese, Pourtugse, Russian
7. Honda car model updated to 2011.12, Kia updated to 2011.06! if necessary you can update it directly on line
Special service for Original Autel Maxidas ds708
1.Update from Autel official website for free within 3years;
2.Free maintenance for 3 years.
Description:

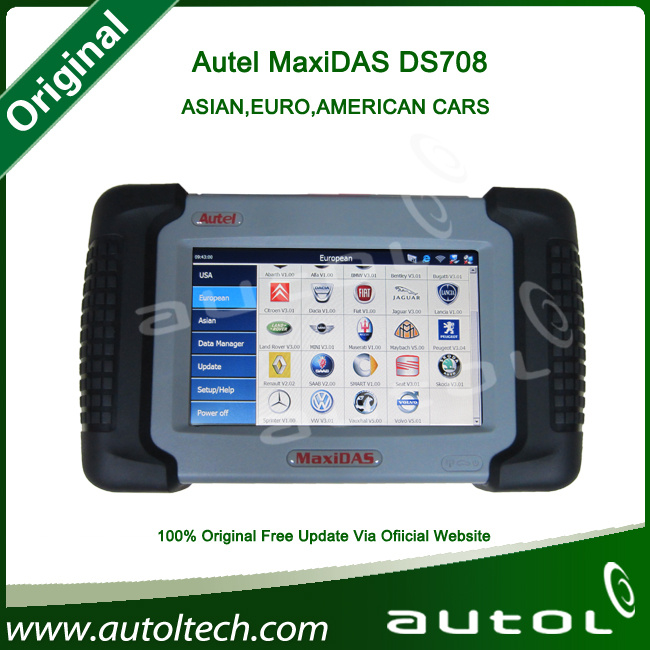

The MaxiDAS® DS708 is a state-of-art diagnostic system that delivers more accurate, more stable, more comprehensive, easier and faster diagnosis. The new platform stands out in a variety of tools by providing incredibly high performance with intuitive operation. Right for the first time, workshops and technicians could find an OE-level diagnostic solution designed for the aftermarket. The DS708 is the key to gain customer confidence and boost your bottom-line.
New DS708 package cancel USB cable, please pay attention.
Feature and Function:
1.Extensive vehicle coverage for more than 30 domestic, Asian and European vehicle makes
2.Deep vehicle system coverage for ALL electronic systems
3.Complete function capability including live data, ECU programming and so many others
4.Unparalleled OBDII functionalities supports ALL 5 OBDII protocols and ALL 9 test modes
5.Automatic Wi-Fi updates available in new software releases
6.Innovative dual-processor technology for quicker diagnostics and boot-up
7.The genuine Windows CE operating system allows for more stable performances, better compatibility and expandability
8.Internet explorer brings internet resource of your choice at your fingertips
9.WIFI internet capability allows for wireless access throughout the workshop
10.Advanced USB communication for faster operation and more accurate diagnostics
11.Extremely easy-to-us with touch-screen operation and intuitive operation
12.Unique shop tough ergonomic design features multi-layered rubber protection and strong housing
13.Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles
14.Captures, saves and prints screenshots for convenient troubleshooting
15.Displays live data in text, graph and analog for easy data review and analysis
16.Records and playbacks live data to pinpoint troubles of sensors and components
17.Innovative graph merging for easy and quick detection of intermittent problems
18.Automatic WIFI Data Logging for quick and accurate technical support and troubleshooting
19.Built-in overvoltage protection keeps the instrument and vehicle from unwanted damages
20.Creative remote diagnosis for convenient demonstrationand training
21.Powered by Autel® Uni-SCANTM technology with no need for extra adaptors or "keys"
22.Prints out recorded data any time and anywhere with Wi-Fi printing capability
Specifications:
Operating System: Windows CE
CPU: ARM9+ARM7 dual processor
Memory: Max. 4 Gigabyte SD card
Communication Interface: OBD,USB Ethernet
Input Voltage: 8.0-32.0V power provided via vehicle battery
Power Consumption: 8W
Operating Current: 500mA
Display: Backlit, 7" TFT (800*480 dpi) color display with touchscreen
Operating Temperature: 0 to 60°C
Storage Temperature: -10 to 70°C
Operation: Touchscreen and one rubber key (ON/OFF)
Printer Interface: Wi-Fi, USB, Ethernet
Housing: Strong plastic housing with protective rubber boot
Protocols: ISO 9141-2, K/L lins, flashing code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898
ISO15765-4, High-speed, Middle-speed, Low-speed and Single-wire CAN
Software Descriptions:
This section shows the software which is currently used for the tool.
The MaxiDAS software is provided on a SD Memory card and can be updated. Free
software updates are available periodically on the Internet at www. maxidas.com.
Software Applications Overview:
The software has two main features: perform vehicle component test and provide information that may assist you in understanding the component.
Scan Diagnostic Applications:
To perform scan diagnostic tests, identify a vehicle you wish to test from the main screen.
Following the instruction on each screen that appear to access to the function test. The diagnostic functions varies depend on the type of vehicle.
Playback:
The Playback function is used for reviewing saved data files. The data files are saved to the Maxidas's
memory card with the data stream saving function, DTC saving function,freeze frame saving function and
the automated testing and diagnostic system.

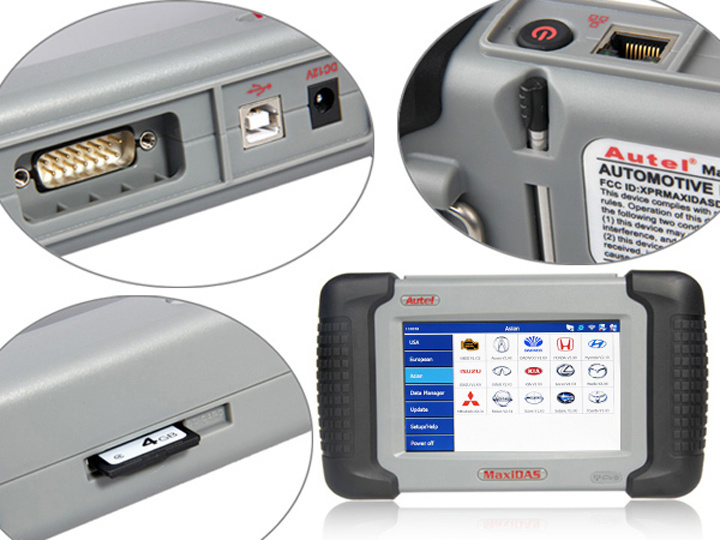

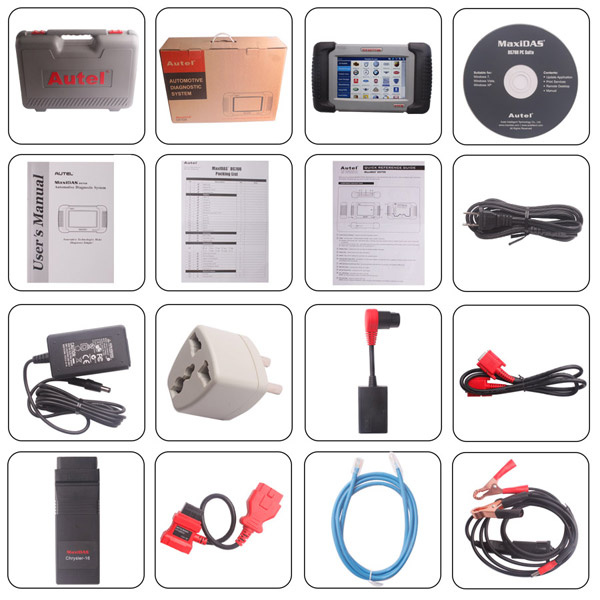

Items pictures:
