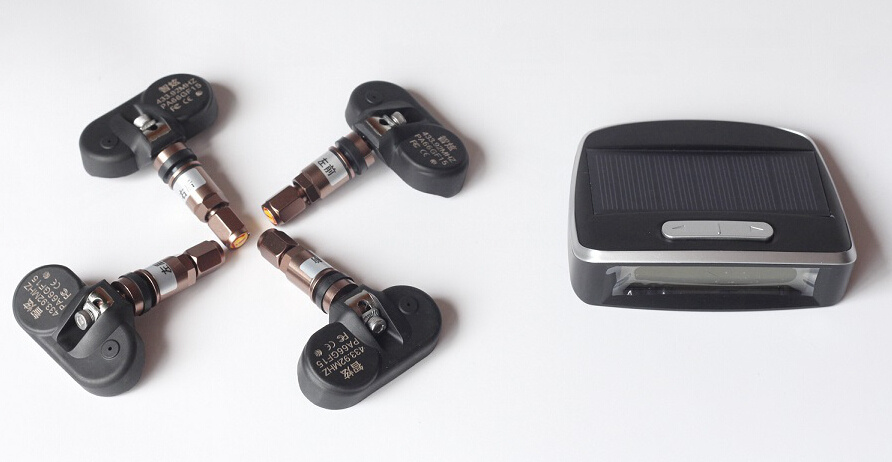

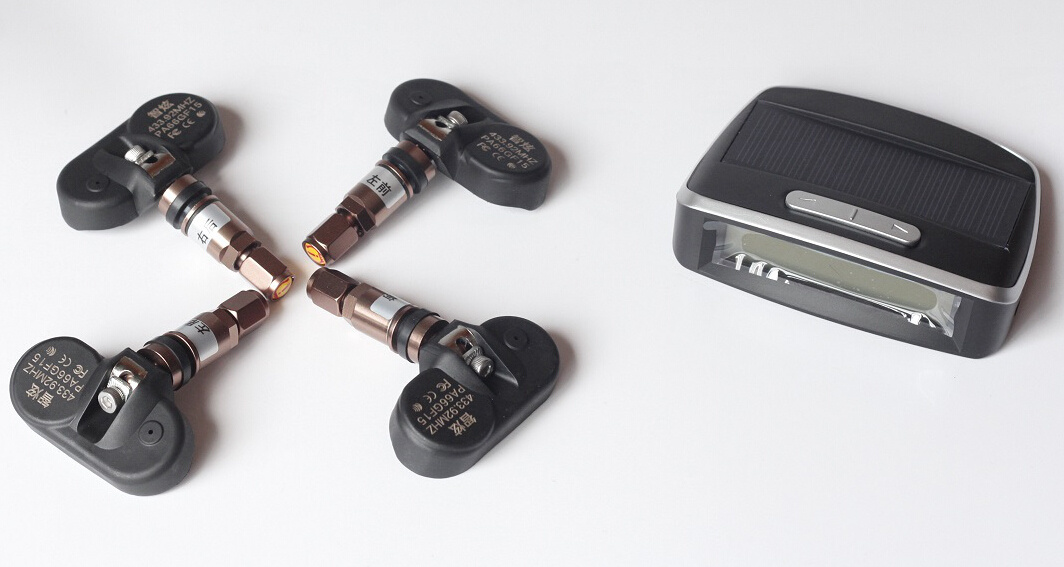

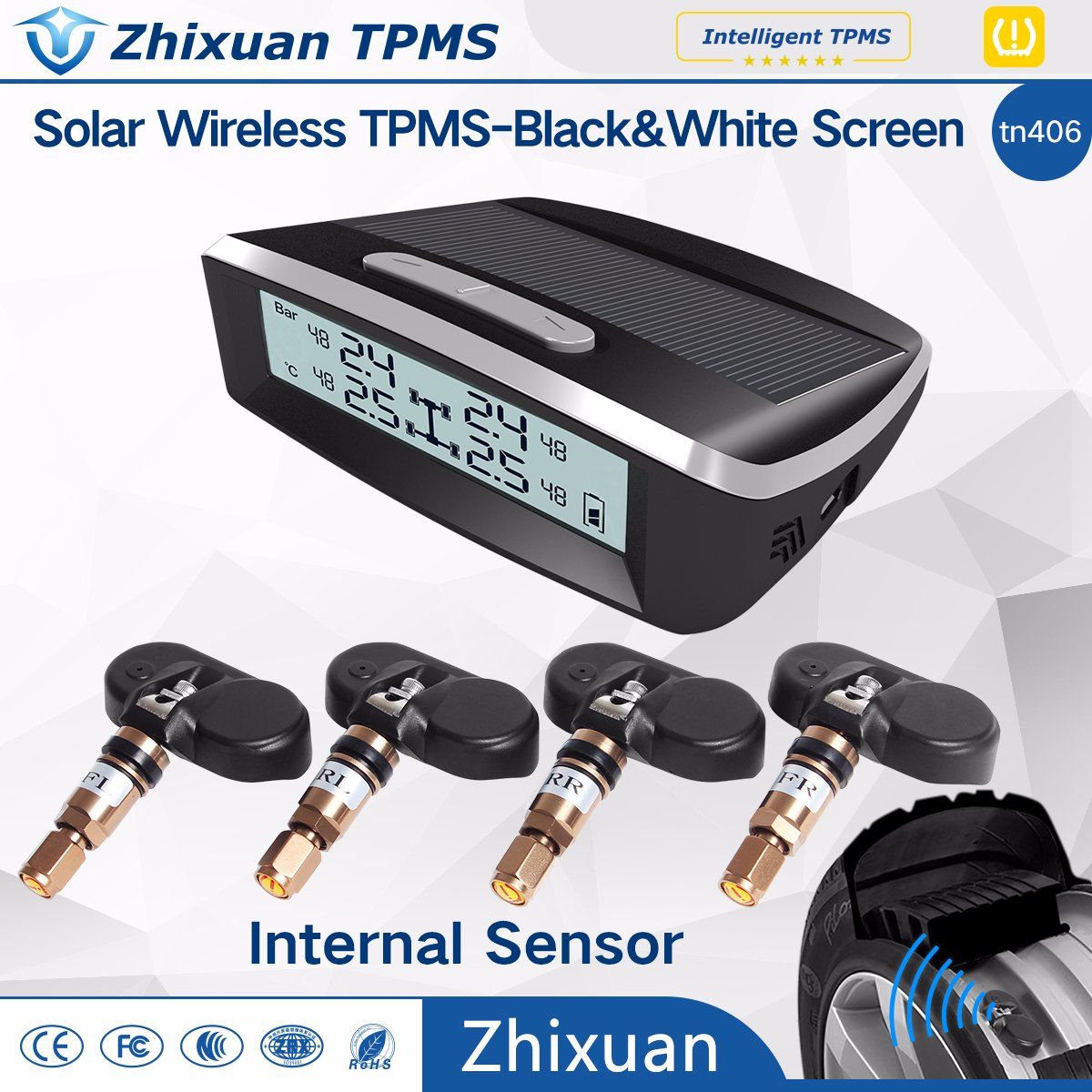

Tn406 Tire Pressure Monitor System TPMS Solar Power New Models Internal Sensors

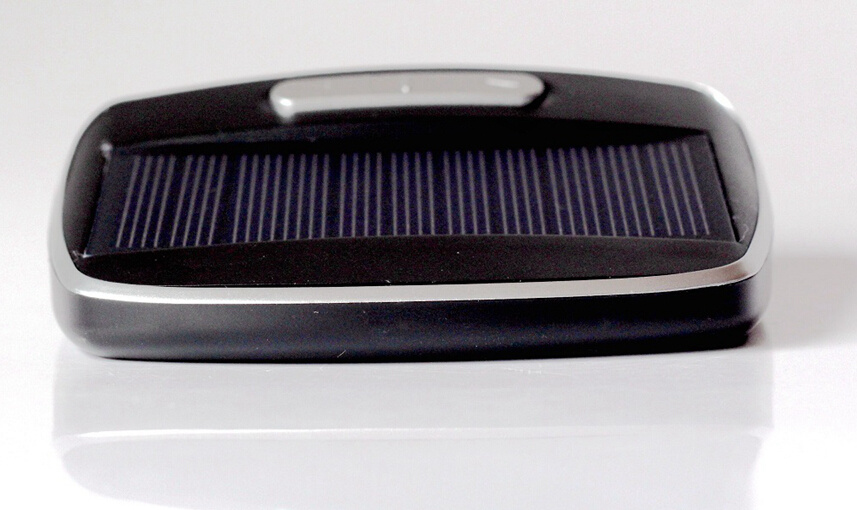

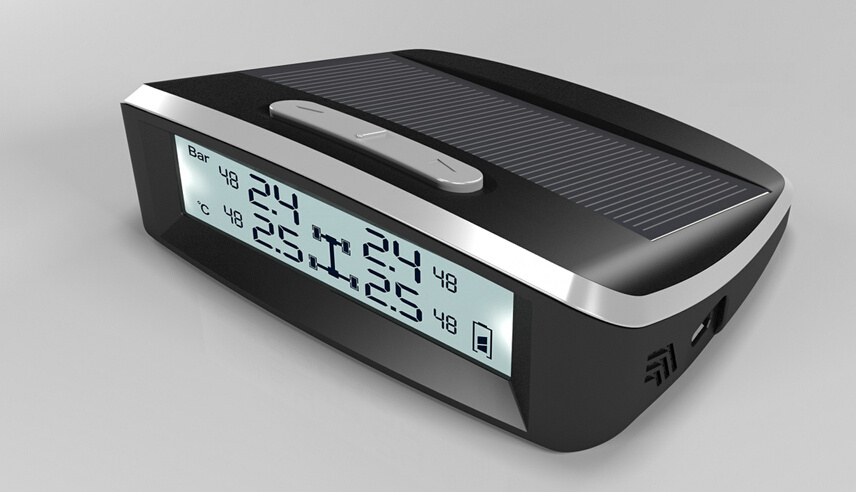

Internal Wireless Solar Power Displayer
1.Germany Infineon Sensor Chip
2.Japan Panasonic Li-battery
1.With 4 internal sensor
2.Automatically solar power battery recharger
3.Pressure amd temperature alarm
4.Selectable pressure unit(Psi,BAR)
5.With USB port for recharging by the power adaptor
6.Display temperature & pressure simultaneously
7.Configurable tire pressure and temprature alert setting      8.colorful screen display 4color:white,yellow,blue,red

Internal Sensor Parameters
*Operating temperature: -40 to 120ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 73*63*10mm (Length*Width*Height)
*Battery life: 5 years (Non-replaceable battery)
*Weight: 38 grams

External Sensor Parameters
*Operating temperature: -20 to 80ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 20mm*17mm (Diameter*Height)
*Battery life: 2 year
*Battery model: CR1632(Replaceable battery)
*Weight: 10 grams

Remarks:
1. 36 sets external type/carton; 20 sets internal type/carton
2. MOQ: 50 sets. Mix order avaliable. Sample test order accept. The unit price is more 5USD than 100 sets rate.
3. Quality Certification: CE, FCC, RoHS, NCC, ISO9001
4. Warranty: 1 years
5. Delivery Time: Depends on quantity. about 6 workdays
6. Payment Terms: 30% deposit, 70% balance before shipment
7. OEM and ODM are available and you are welcome to be our agent or distributor in your country.
