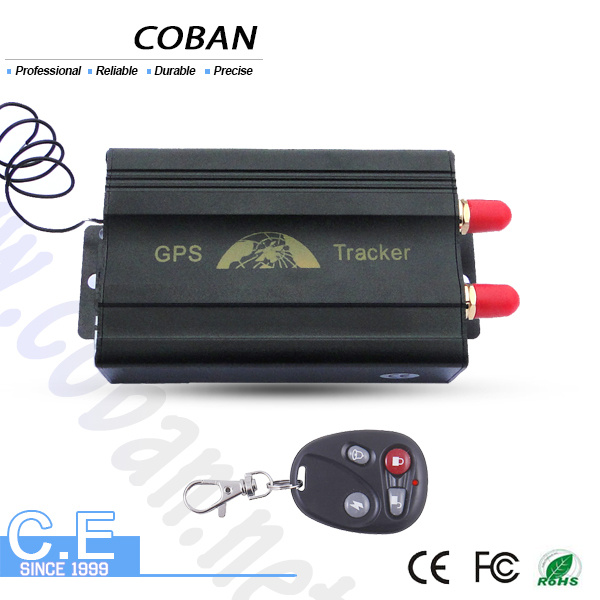

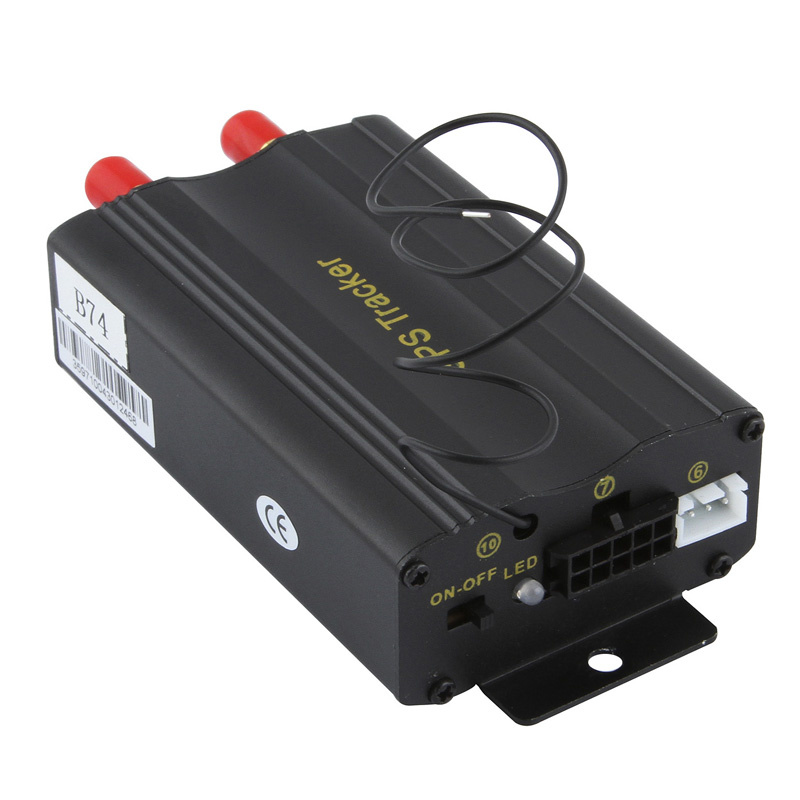

TK103B Car GPS Tracker Remote Control Car Alarm Vehicle GPS Crawler GPS tracking System Google Map
Top quality, fast delivery in 3 days and one year warranty.
Features:
Automatic Tracking - GPS Tracking Device can be programmed to automatically send a location update in various time Intervals.
Manual Locate - Allows you to manually request the current location of the GPS Device at any time.
Speeding Alert - Automatically marks the date, time, and location if the vehicle travels over the pre-set Speed Limit.
Internal Backup Battery-Power Interrupt Alarm - Automatically sends notification if the main power is cut or disconnected.
Store and Forward - When the GPS Device cannot lock onto a cellular signal, it will store update GPS information and forward the data when it reconnects. The device can store 2000 messages with its internal memory.
Movement Alert- Send all the authorized phone number TXT alerts when the vehicle moves out of the preset area(ie.200m radio).
Stop and resume the vehicle- If your car has any unexpected movement, you can stop the car remotely with your phone and resume it when threats is solved.
Fuel Monitoring- Support normal fuel sensor(drilling needed) and Ultra-sonic fuel sensor( no drilling), prevent any kind of fuel theft or abnormal fuel comsumption(fuel leak).
Voice monitoring- With standard microphone for the GPS tracker, you can voice monitor your vehicle whenever you want, keep your car safe.
LBS Tracking- When the device can not lock up to the GPS signal, for example, entered an underground parking lot, it can track with LBS(local based service) automatically and reconnect to GPS singal when it's found.
ACC working alert- Have a clue when your vehicle is on the move and take action to stop it if it's unexpected.
Door open alarm Five tracking solutions:
-Manual tracking
By calling the device, it will return a message back with Latitude and longitude data, you can enter this data on Google map or on our web tracking platform.
-PDA cell phone map tracking
The information that the message contains after you called the device has a map link, use a PDA smart phone you can open this link directly and see the location on your phone.
-Physical address tracking
By sending command "address+password", you will get a SMS return with the real street name like "zhiheng industries park, nantou guankou 2nd Rd, nanshan, shenzhen, guangdong, china."
-Web server online tracking www.gpstrackerxy.com
You can add the imei number of the device to the platform and after all the configuration, you can start real time online tracking on the platform.
we also supply multi-language(English,Spain,German,Italian.Portuguese,etc) web tracking platform for our customer to realize real-time tracking.
-Local based service(LBS) tracking

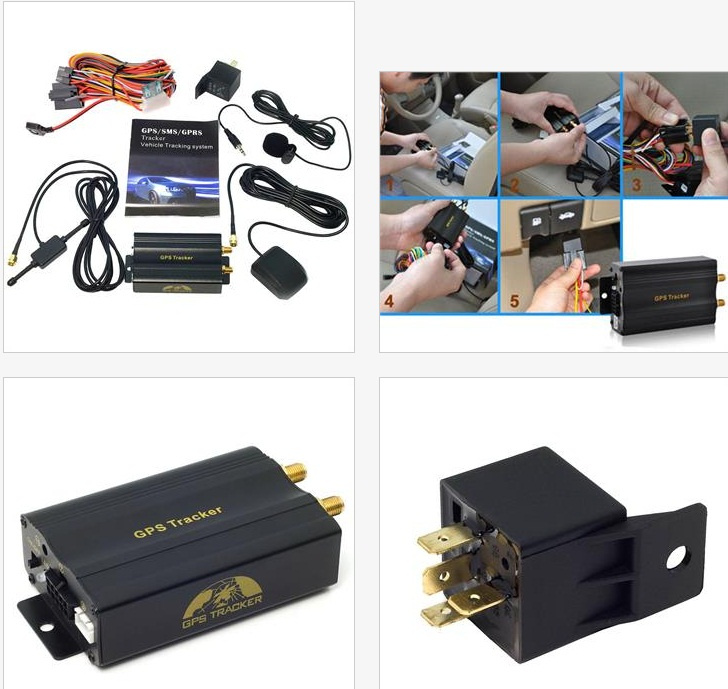

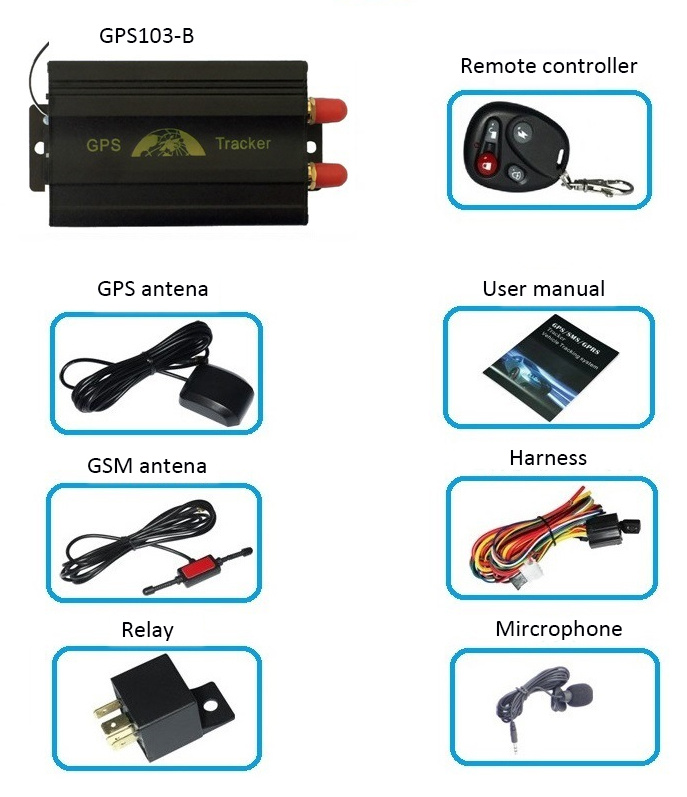

Standard package:
GPS Unit
Remote controller(one)
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual | Box
Optional accessories
One more remote controller
Shock sensor
alarm siren
Microsd memory card
fuel sensor
How to tracking ?
The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A: SMS + Map software;
B: PDA Cell Phone;
C: Real time tracking, and track via your computer(PC Software);
D: simple & useful real time web tracking via our website www.gpstrackerxy.com
E : IOS and Android APP
DIM | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp | -20°C to +65°C |
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
