Thermal Relay (LR2-D)

Thermal Relay (LR2-D)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 500/Piece
Pay Type: L/C,T/T

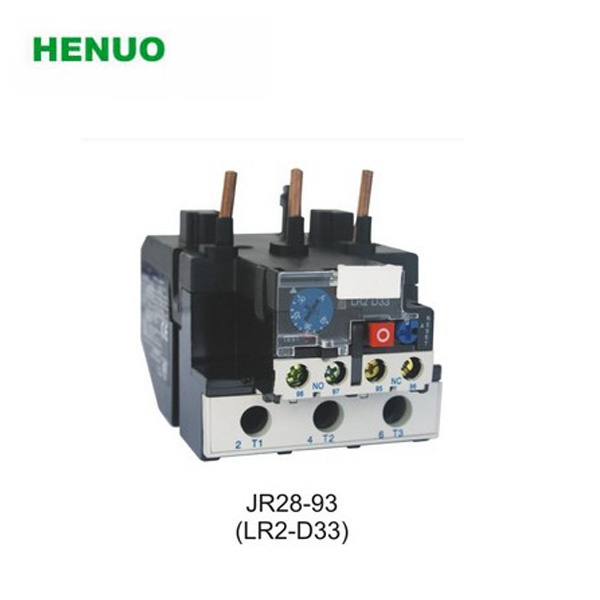

LR2-D Thermal Relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1~93A for protecting the phase failure when the electric motor is overload. The relay has different mechanism and temperature compensation and can be plugged in the LC1-D series AC contactor.
Type

Frame
(A)

Code

Rated operating
current  Ie (A)

Setting current
range (A)

LR2-D13

25

LR2-D1301

0.16

0.1~0.16

LR2-D1302

0.25

0.16~0.25

LR2-D1303

0.4

0.25~0.4

LR2-D1304

0.63

0.4~0.63

LR2-D1305

1.0

0.63~1

LR2-D1306

1.6

1~1.6

LR2-D13X6

2.0

1.25~2.0

LR2-D1307

2.5

1.6~2.5

LR2-D1308

4

2.5~4

LR2-D1310

6

4~6

LR2-D1312

8

5.5~8

LR2-D1314

10

7~10

LR2-D1316

13

9~13

LR2-D1321

18

12~18

LR2-D1322

25

17~25

LR2-D23

36

LR2-D2353

32

23~32

LR2-D2355

40

30~40

LR2-D33

93

LR2-D3353

32

23~32

LR2-D3355

40

30~40

LR2-D3357

50

37~50

LR2-D3359

65

48~65

LR2-D3361

70

55~70

LR2-D3363

80

63~80

LR2-D3365

93

80~93

Prod Model: LR2-D
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.

From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:

1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.

2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.

3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.

4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on

5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on

Internationalization standard quality guarantee system:

The product quality of Tengen Group has been strictly controlled in each working procedure,

Many kinds of internationalization standard quality guaranteed system can be highly effective

Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently

Make sure of our product quality.

"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American

FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management

System authentication, CCC authentication, European Union CE safe Authentication, American UL

Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first

Side laboratory -- low voltage electric appliance test center which is the first connected with

International in China.

We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
