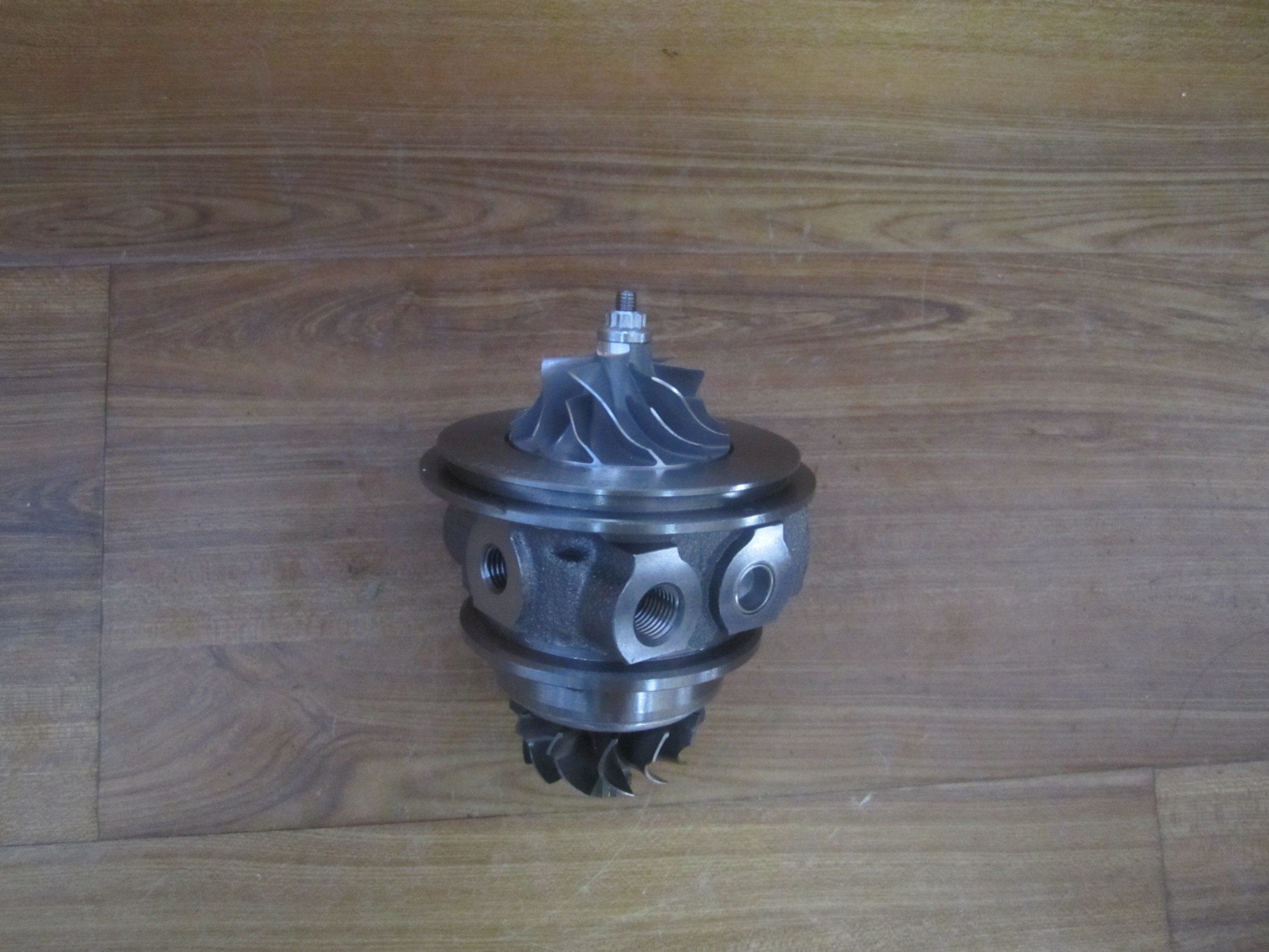

Tfo35hm-12t/4 49135-02110 Turbocharger Cartridge for Mitsubishi L 200 Pajero II Hyundai H-1

Δ TFO35HM-12T/4 49135-02110 turbocharger cartridge for Mitsubishi L 200 Pajero II Hyundai H-1


Part Number	49135-02110
Previous Part Number	4913502110, 49135-02100
OE number	MR212759, MR224978
Year	1998-01
Description	Mitsubishi L 200 Pajero II Hyundai H-1
CHRA	49135-08000 (1401635906)
Turbo Model	TFO35HM-12T/4
Engine	4D56, 4D56QEC
Capacity	2.5L TD, 2477 ccm
KW	73
Bearing Housing	49377-25200 (1401635460, 1401404470)
Turbine Wheel	49135-30100 (Ind. 36.25 mm, Exd. 43.1 mm, 11 Blades) (1401635435, 1100016197)
Comp. Wheel	49135-00016 (Ind. 56. mm, Exd. 43.25 mm, Trm 60, 6+6 Blades)(1401635426, 1200016262)
Back plate	49135-00044 (49135-15405, 49173-22500) (1401635300)
Heat shield Number	49135-19100 (49135-00020)(1401404342, 1401404340)
Repair Kit	49177-80410 (1401404755)
Turbine Housing	49135-17700
Compressor Cover	49135-00085
Turbine Housing AR	4.0
Actuator	49135-18010
Gasket (turbine inlet)	210501 (Inox Steel)
Gasket (turbine outlet)	210571 (Stainless Steel)
Gasket (oil outlet)	210243 (Gasket Paper)
Manufacturer	Mitsubishi

Applications
2000- Hyundai H-1 2.5L TD Engine 4D56TD
1998- Mitsubishi L 200 2.5L TD 4x4 (K6_T) Engine 4D56TD
1997-00 Mitsubishi Pajero II 2.5L TD Engine 4D56TD
1998- Mitsubishi Pajero II 2.5 TD Engine 4D56TD
Pajero Sport / L200 4x4 2.5L 4D56

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
