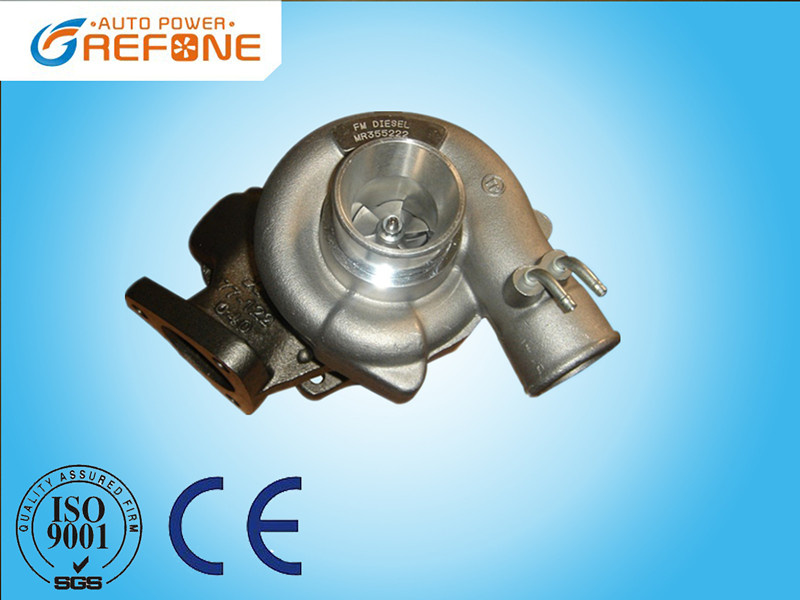

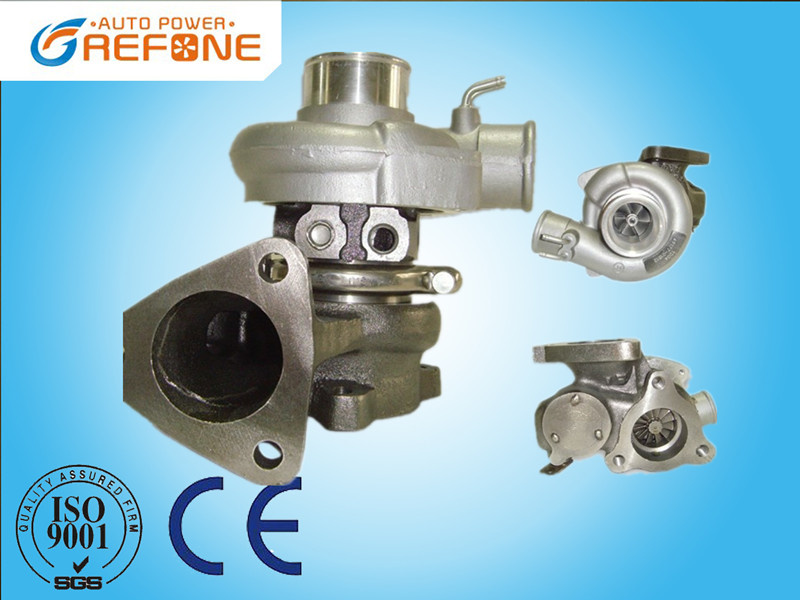

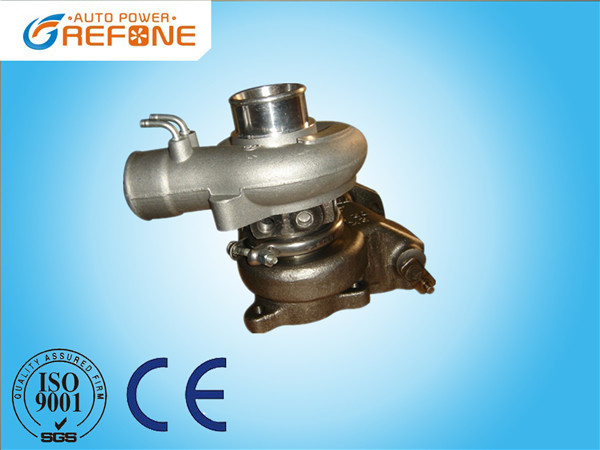

TD04 4D56 Engine Mitsubishi Pajero Turbocharger 49177-01511 Diesel 2.5LDetails| Part Number | 49177-01511 |
| Previous Version | 4917701511 |
| OE Number | MD168054 |
| Year | 1992-96 |
| Description | Pajero, L300, L200 |
| CHRA | 49177-08020 |
| Turbo Model | TDO4-09B/4, TD04 |
| Engine | 4D56 |
| Engine Manufacturer | Mitsubishi |
| KW | 87 |
| Fuel | Diesel |
| Displacement | 2.5L, 2500 ccm, 4 Cylinders |
| Bearing Housing | 49177-25100 |
| Turbine Wheel | 49177-30120 |
| Comp. Wheel | 49171-41410 |
| Back plate | 49173-22500 |
| Heat shield Number | 49170-19100 |
| Repair Kit | 49177-80400/49177-80410 |
| Turbine Housing | 49377-15300 |
| Compressor Cover | 49177-55880 |
| Turbine Housing AR | 4.0 |
| Gasket (turbine inlet) | 210501 |
| Gasket (turbine outlet) | 210502 |
| Gasket (oil outlet) | 210243 |
Applications
1992-1996 Mitsubishi Colt, Delicia, L300, Montero, Pajero with 4D56 Engine
Product Images
Factory Introduction
Refone Auto Power Co., Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading. It imports samples and technology from Europe, Japan and other countries, also exports turbochargers, turbo parts, turbocharger accessory parts to Europe, Japan, America etc...Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
Contact us
Gavin Wang
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658726| TD025S2 | 49173-07506 ,
49173-07508 | 9682881380, 0375N5 | Commercial, Volvo Fiat Citroen Ford Peugeot |
| TD025M | 49173-02662,
701729-0003, | 49173-02610, 49173-02612, | Kia Rio, Cerato, Hyundai Lavita, Verna, Getz |
| TD025L | 49173-01400 | MD181384 | Mitsubishi Galant VR4 4WD |
| TD025MR | 49180-02030 | 2881002400 / 28810-02400 , | Hyundai |
| TF035HM | 49135-06037 ,
49135-06035 | 3C1Q6K682EB, 1355059 | Ford Transit |
| TD03 | 49131-05101 ,
49131-05111 | 9471564 - 8601455 | Volvo |
| TD04-09B-4 | 49177-01501,
49177-01510 | MD168053, MD094740 | Mitsubishi Pajero |
| TD04 | 49177-01512 | MD194841 | Mitsubishi |
| TF035HM | 49135-03100 | ME201593 | Mitsubishi Delicia |
| TD04L | 49377-01610 | 8208818100, 6208-81-8100,, | Komatsu Excavator |
| TDO4-11G | 49177-08110 | 49177-08110 | Mitsubishi |
| TD04 | 49377-04000 | 14412AA100, 14412-AA100 | Subaru Impreza |
| TD04L | 49377-07000 | 500372214 | Iveco Daily Commercial |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
