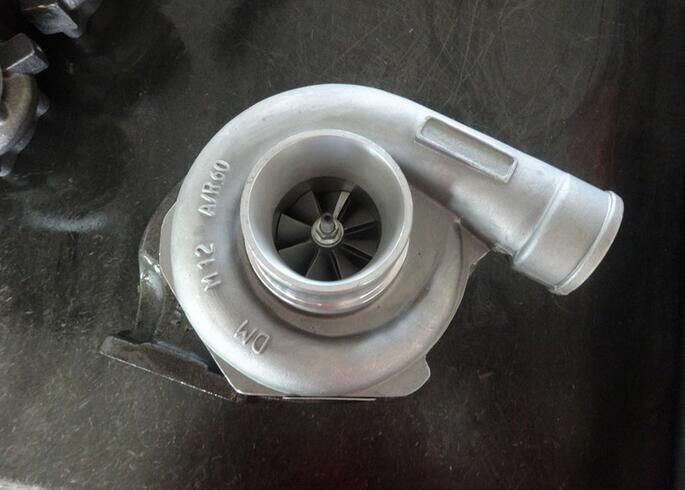

℗ T04B91 409410--5006S turbocharger Spec.
| Part Number | 409410--5006S |
| Previous Version | 409410-0004, 409410-0005, 409410-0007, 409410-0008, 409410-0010, 409410-0012, 409410-4, 409410-5, 409410-7, 409410-8, 409410-10, 409410-12, 409410-5006S , 409410-5004S, 409410-5005S, 409410-5007S, 409410-5008S, 409410-5010S, 409410-5012S |
| OE number | 7N4651, 4N6858, 4N6859, OR5796, 7N1709, 7N2342, 1W5160, 2W8139, 7C2175, 0R5796 |
| Year | 1973- |
| Description | Earth Moving |
| CHRA | 408077-0102 (408077-5102S, 4N6860, 4N4780, 0R5888) |
| Turbo Model | T04B91 |
| Fitted To Model | 35146 DITAJWAC GS |
| Engine | 3304, 3304DIT, 3304-Industrial, 3304T DITAJWAC GS |
| Displacement | 7.0L, 7000 ccm, 4 Cylinders |
| KW | 127 |
| Fuel | Diesel |
| Paving Compactor | CP-643, CP-653, CS-643, CS-653 |
| Machine Engine | 3304 |
| Generator Set Engine | 3304, 3304B, SR4 |
| Generator | SR4 |
| Excavator | 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229, E240, EL240 |
| Industrial Engine | SR4, 3304, 3304B, D330C |
| Motor Grader | 120G, 130G, 12G, 130G, 140G |
| Track-type Skidder | D4HTSK III, D5HTSK II, 54H |
| Track-type Loader | 963, 963 |
| Track-type Tractor | 4S, 5A, 5P, 5S, 140, 141, 143, 5, D4E, D4H, D4H III, D4H XL, D5H, D5H XL, 55 |
| Wheel-type Skidder | FB518, 518, 518C |
| Wheel-Type Loader | 936, 936E, 936F, 950B, 950B/950E, 950E, G936 |
| Angle α (compressor housing) | 150 |
| Angle β (turbine housing) | 15 |
| Bearing Housing | 430027-0051 (430027-0035, 430027-0031) |
| Turbine Wheel | 451309-0003 |
| Comp. Wheel | 409179-0018 |
| Back plate | 408045-0051 |
| Heat shield Number | 409299-0001 |
| Repair Kit | 468100-0000 |
| Turbine Housing | 408667-0022 (7N1687) |
| Compressor Cover | 408173-0008 (4N6862) |
| Turbine Housing AR | 1.52 |
| Gasket oil inlet | 210023 (55739, 147837, 3500681, 3519762, 3709737, 3755739, 409026-0001, 409036-0000, 409266-0001, 210023-0000) (1900000037) |
| Gasket (turbine inlet) | 407294-0001 (312617) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 409037-0000, 413671-0000)(1900000027) |
| Manufacturer | Honeywell-Garrett |
Applications
1973- Caterpillar 963, 950B with 3304-Industrial, 3304T DITAJWAC GSS Engine
1973- Caterpillar 120G-Grader with 3304-Industrial, 3304T DITAJWAC GSS Engine
1973- Caterpillar Generating Set with 35146 DITAJWAC GS Engine
