Switch-Pros 8 Switch Flush 8100 Bluetooth Panel Power System for Jeep Rzr UTV

Switch-Pros 8 Switch FLUSH 8100 Bluetooth Panel Power System for Jeep RZR UTV

The 100 amp power module is built with solid-state, automotive components, and uses no mechanical relays or fuses.  It is COMPLETELY SEALED, allowing you to mount it under the hood of your rig. The module monitors ignition and lights input, features built-in, over-temperature and over-current protection, allows you to choose Ignition or Battery input for any/all of your accessories, and allows for a designated Master Switch.

All Systems now Include:
-Dimming for lighting outputs
-External trigger to activate up to 2 outputs
-Battery Voltage display on app screen

• Eight user-programmable switches
• User-selectable switch legends
• Illuminated switches with user-adjustable brightness
• Programming and control via panel or smart phone
• Bluetooth interface
• 100A solid state power module, engine compartment rated
• Automatic shutdown for overcurrent and low voltage
  Programming options are: On/Off or Momentary, Ign. or Batt., Flash and Strobe functions, Low Voltage Disconnect, and Switch Memory
• Plug and play installation

Switch Panel Specs:

• 4"L x 2"W x .5"H (excluding tabs)
• Enclosure:  Anodized Aluminum
• Orange LED switch indicators
• Green backlighting

Power Module Specs:

• 6"L x 3"W x .5"H (excluding connectors)
• Enclosure: Anodized aluminum
• 8 Outputs, 7 rated @ 18A, 1 rated @ 30A
• 100A maximum rating 125°C to -40°C

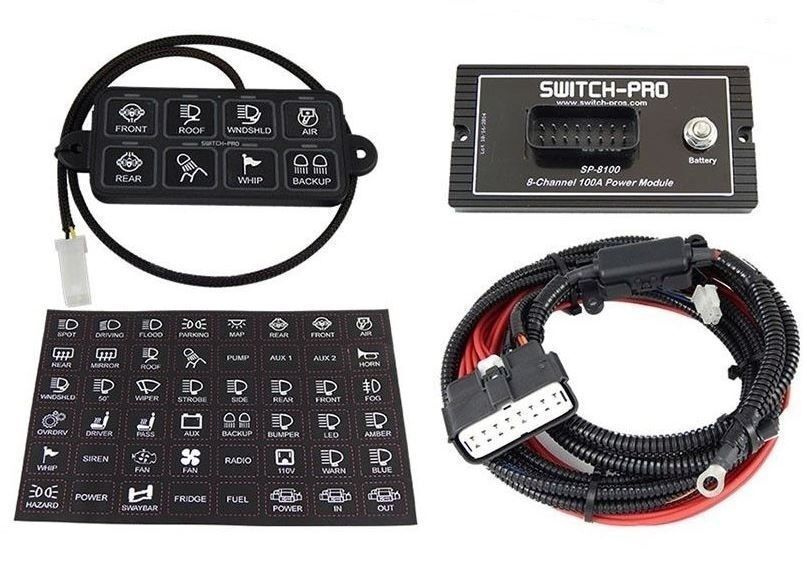

• 16-pin, sealed automotive connector, wire harness w/100A fused power cable,
  light and ignition input wires, and eight 3'long output wires
• 11' of communication cable between switch panel and power module
