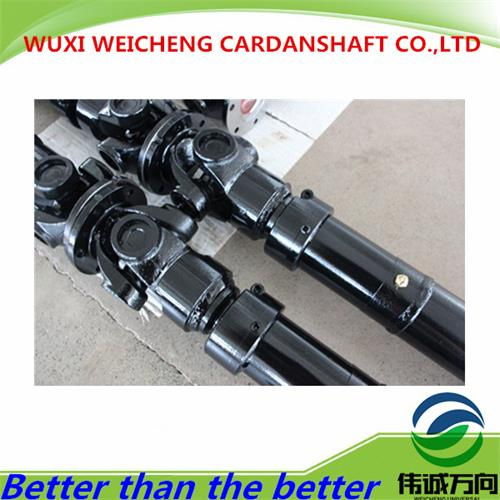

SWC Flexible Shaft/Cardan Shaft/Crank Shaft

Name: SWC Flexible Shaft/Cardan Shaft/Crank Shaft
Brand: ibuyautoparts.com
SKU: 800353225
Availability: InStock
Rating: 5 (114 reviews)

Price:	US $ 650-680/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

SWC-I Series-Light-Duty Designs Cardan shaft
Designs

Data and Size of SWC-I Series Universal Joint Couplings

Type	Desian Data Item	SWC-I 58	SWC-I 65	SWC-I 75	SWC-I 90	SWC-I 100	SWC-I 120	SWC-I 150	SWC-I 180	SWC-I 200	SWC-I 225

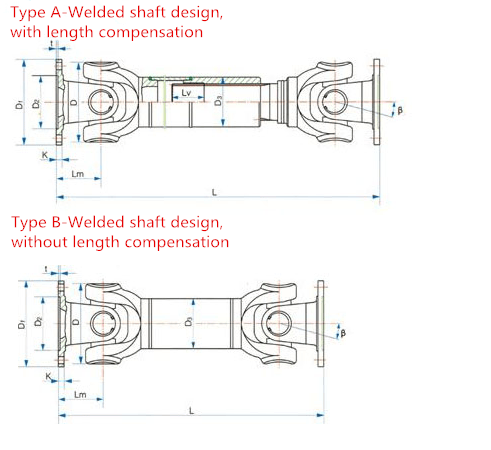

A	L	255	285	335	385	445	500	590	640	775	860
	Lv	35	40	40	45	55	80	80	80	100	120
	m(kg)	2.2	3.0	5.0	6.6	9.5	17	32	40	76	128
B	L	150	175	200	240	260	295	370	430	530	600
B	m(kg)	1.7	2.4	3.8	5.7	7.7	13.1	23	28	55	98

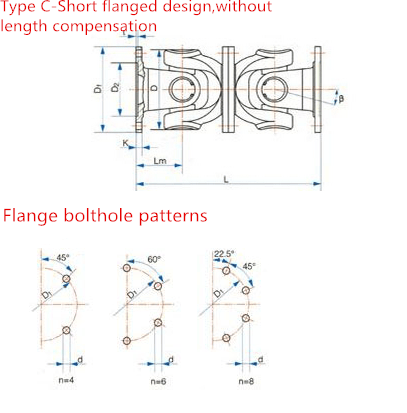

C	L	128	156	180	208	220	252	340	348	440	480
C	m(kg)	1.3	1.95	3.1	5.0	7.0	12.3	22	30	56	96
	Tn(N·m)	150	200	400	750	1250	2500	4500	8400	16000	22000
	Tf(N·m)	75	100	200	375	630	1250	2250	4200	8000	11000
	β(°)	35	35	35	35	35	35	35	25	25	25
	D	52	63	72	92	100	112	142	154	187	204
	Df	58	65	75	90	100	120	150	180	200	225
	D1	47	52	62	74.5	84	101.5	130	155.5	170	196
	D2(H9)	30	35	42	47	57	75	90	110	125	140
	D3	38	38	4	50	60	70	89	102	114	140
	Lm	32	39	45	52	55	63	85	87	110	120
	k	3.5	4.5	5.5	6.0	8.0	8.0	10.0	12.0	14.0	15.0
	t	1.5	1.7	2.0	2.5	2.5	2.5	3.0	4.0	4.0	5.0
	n	4	4	6	4	6	8	8	8	8	8
	d	5.1	6.5	6.5	8.5	8.5	10.5	13	15	17	17
	MI(kg)	0.14	0.16	0.38	0.38	0.53	0.53	0.87	0.87	1.65	2.14
Flange bolt	size	M5	M6	M6	M8	M8	M10	M12	M14	M16	M16
Flange bolt	Tightening torque(N·m)	7	13	13	32	32	64	110	180	270	270

1. Notations:
L=Standard length, or compressed length for designs with length compensation;
LV=Length compensation;
M=Weight;
Tn=Nominal torque(Yield torque 50% over Tn);
TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strength
Under reversing loads;
β=Maximum deflection angle;
MI=weight per 100mm tube
2. Millimeters are used as measurement units except where noted;

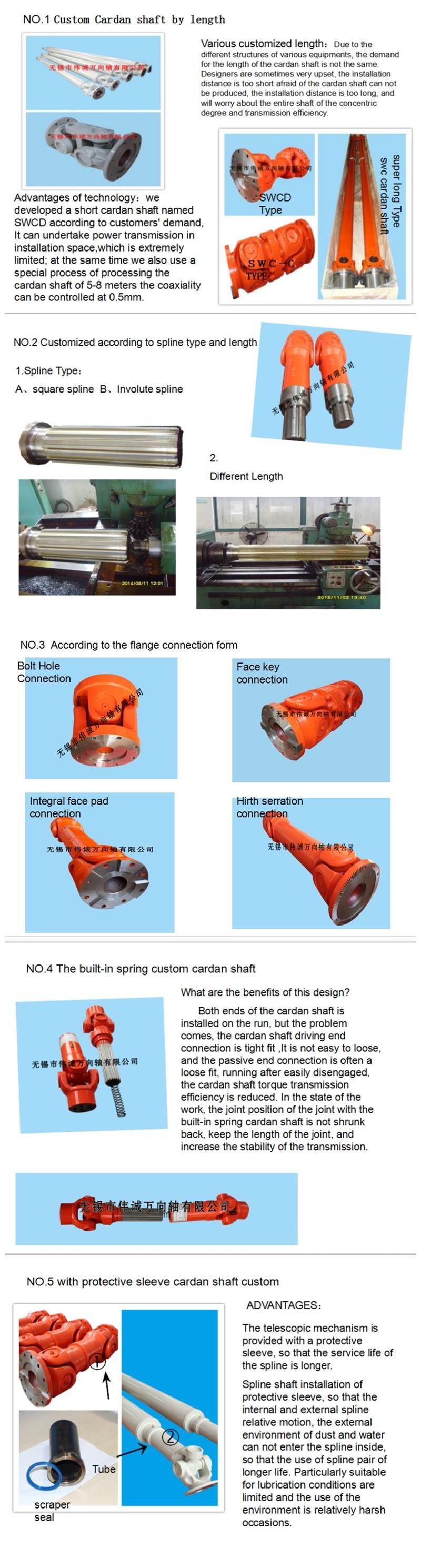

3. Please consult us for customizations regarding length, length compensation and
Flange connections.

Prod Model:	Crank shaft
OEM/ODM:	Available

Wuxi Wei Cheng driveshaft Co., Ltd. Has been focused on the research and development, production and sales of the universal shaft 15 years. Annual production of 15000 sets of universal shaft.

Company independent research and development of light, medium, short, heavy universal shaft are to achieve the leading domestic level, the product is not only supporting the domestic large and medium-sized enterprises, but also exported to India, Vietnam, Laos, Ukraine, Russia, Germany, the United Kingdom and other countries.

In the fifteen years, the company has accumulated rich experience, learning foreign advanced technology, and to absorb and use, the universal shaft for many times to improve, so as to improve the structure, performance is significantly improved. Firm belief: "innovation, optimize the structure, persevere" creating a high quality universal shaft excellent production enterprises. We always adhere to the quality of ISO9001 system management and control quality, from the details of the process, and to achieve processing equipment, special machine, CNC product quality is rapidly increased, not only won the majority of customers reputation, but also get peer recognition.

We continue to strive for: "to create the greatest value for customers, to build the best platform for employees", we must realize the mutual benefit and win-win between customers and enterprises.
