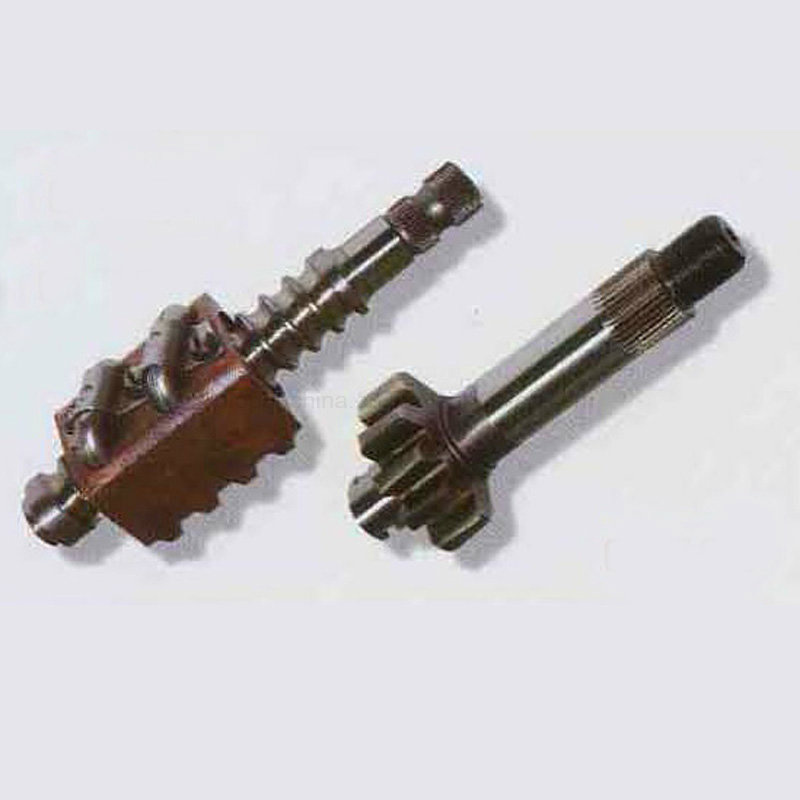

Steering worm nut with pitman shaft for Chrysler gear boxThe static properties of the screw and nut assembly itself are determined by multiple, often conflicting factors: Minimal flank backlash between the nut and screw means optimum reproducibility but at the same time places increased demands on the screw thread geometry. A higher bearing percentage on the screw flanks improves axial load-bearing capacity and service life on the one hand, but is reflected on the other hand by greater sensitivity of the screw-nut system to production tolerances.
And it is the correct and accurate operation of the transmission system which is usually decisive in determining the quality of the end product, which is why the production of a screw and nut assembly is something best left to the experts
The production of nuts for your screw and nut assembly poses equally stringent quality requirements. Our own toolbuilding shop is evidence of our flexibility and commitment in the service of our customers - lead screw taps even in special forms are no obstacle, at least not for us. Complicated forms on screws or nuts in conjunction with a high accuracy requirement present as little of a problem as galvanization
The ball screw assembly steering gears consists of a screw and a nut, each with matching helical grooves, and balls which roll between these grooves between the nut and the screw when the nut or screw is rotating. The balls are deflected by the deflector into the ball return system of the nut and they travel through the return system to the opposite end of the ball nut in a continuous path, and exit from the ball return system into the ball screw and nut thread raceways continuously to recirculate in a closed circuit.The ball nut assembly: Ball nut determines the load and life of the ball screw assembly.
The ratio of the number of threads in the ball nut circuit to the number Of threads on the ball screw determines how much sooner the ball nut will reach Fatigue failure (wear out) than the ball screw will. Ball nuts are manufactured With two types of return systems.
We can produce it according to your drawing,even with old samples! mainly for racing teams

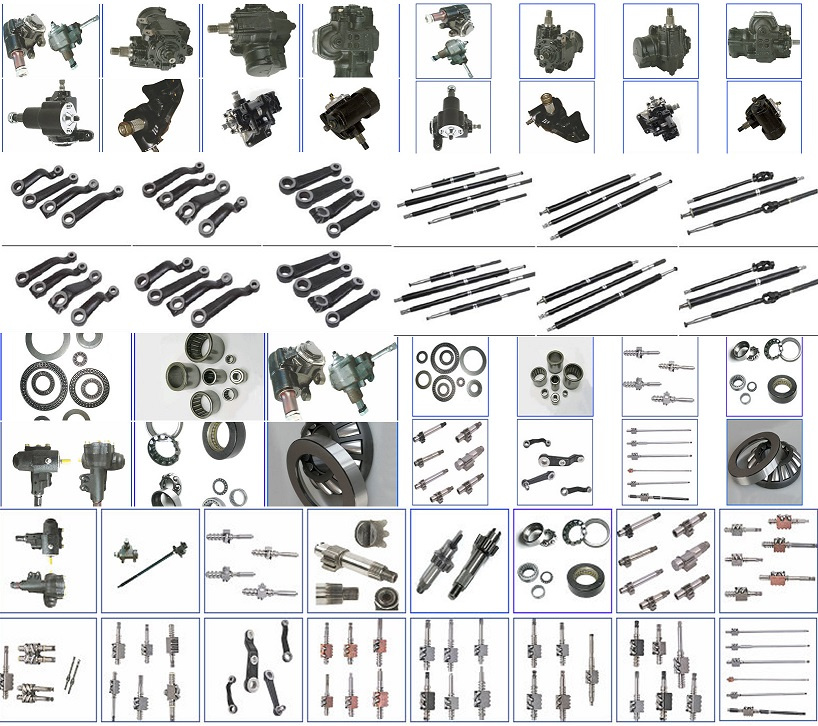

Other Relative series:

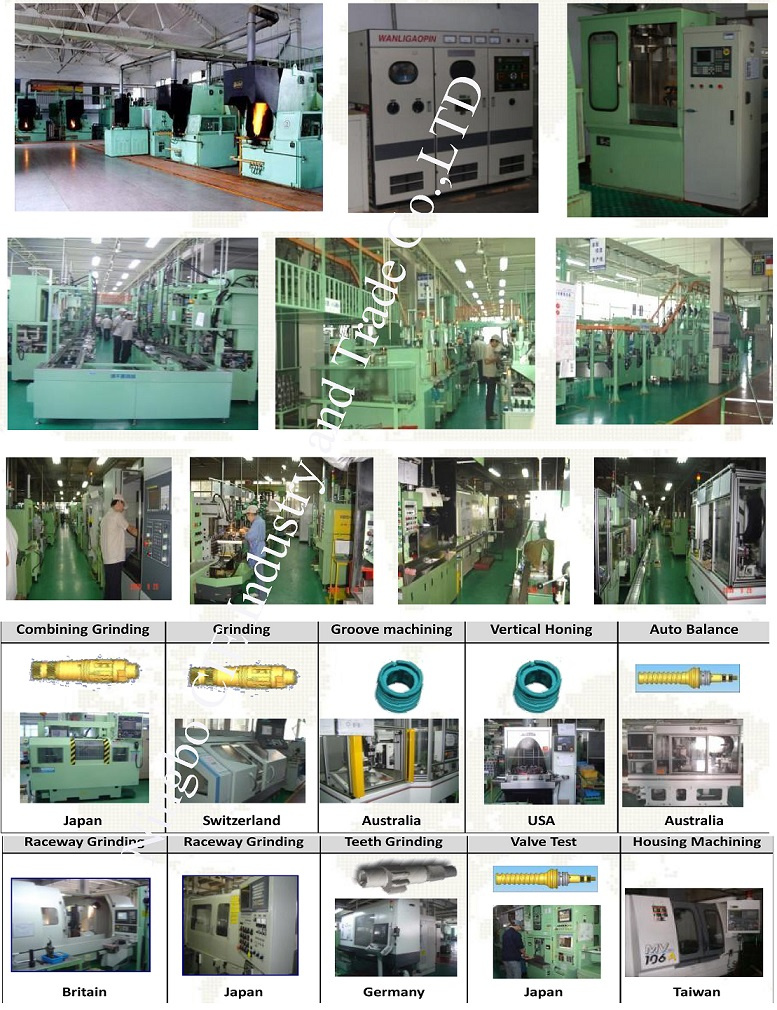

Our workroom at a glance:
We attend some professional fair and abroad.
INGBO CIE INDUSTRY AND TRADE Co., Ltd was established from 1988 in China and export more than 30 years old mainly for Industrial bearing Our Head Company registered capital is USD1, 500, 000, and we have 1, 200 employees contributing to the turnover of more than 0.8 billion US dollars.
We have passed the evaluations of ISO9001: 2001 quality management system, ISO14001: 2004 environment management system and OHSAS18001: 1999 certification. We possess more than ten subsidiary companies, an industrial zone named CIE Industry occupying 25, 000 square meters, and more than ten manufacturing factories respectively engaged in high quality automotive parts and bearings, including automotive wheel bearings and kits, auto bearings, automotive bearings, wheel-hub units and kits, air-conditioner compressor bearings, steering-gear bearings, deep groove ball bearings, tapered roller bearings, needle roller bearings and special non-standard bearings, ball screw, linear guide rail and block assembly, steering systems with power steering gear, manual steering gears like recirculating balls and nut steering gears, racks and pinion steering gears, steering columns, steering linkages, as well as steering gearbox parts like gear sector shafts, worm assemblies and ball screws, linear guide rails and block systems. You can find our products installed as OEM equipment in automobiles from Europe, Asia and the U. S. A.
Our subsidiary company-CIE Auto Source Industry Co., Ltd. Was established in 1996, and is strong at the production of bearings, Power Transmission Parts and Steering System, of which the details focus on the following issues:
Design strength:
Our in-house team of approximately 60 experienced engineers is constantly developing newer and better bearing models, and auto parts mainly for steering systems. The most advanced computer aided design (CAD) systems and Germany-imported grinder machines are utilized to incorporate your specific requirements. Our ratio of R&D investment is much higher than the average in domestic industry.
Quality control:
Some of our QC instruments and meters are imported from Japan and Germany. We inspect every item with Talyrond roundness testing instruments before packaging. Our team also performs noise and vibration tests as well as radial and axial clearance inspection. Steering system parts are inspected on fatigue test bench, metering inspection center, 3D measuring apparatus, performance test bench and alignment test bench.
Services:
We are committed to providing first class services and top quality products through:
1)Developing trading relationships of mutual trust with customers and suppliers;
2)Training and development of all our employees to enable them to release their full potentials and provide career progression;
3)Supporting objectives which safeguard the environment, leading to better working practices and safety running of machine and operation;
4)Improving efficiency by incorporating technological solutions
5)Exceeding customer's expectation for service, quality and value for money\
6)Improving communications with our customers, suppliers and staff to keep them up to date with industrial development and news
Constantly contacting customers for product's further development is given higher priority at NINGBO CIE INDUSTRY AND TRADE Co., Ltd., and serious development work relies on knowing the demands and requirements of the market.
