Steel Wire Rope 6X7+FC 7X7
| Price: |
US $ 0.5/Meter |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T |
ITEM:

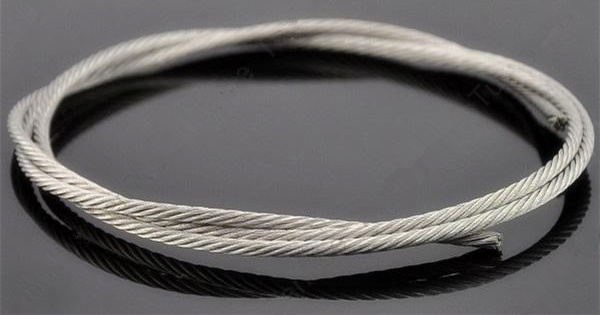

STAINLESS STEEL AIRCRAFT CABLE / WIRE ROPE / STRAND
SPECIFICATION:(1) Material: AISI304; AISI316 stainless steel etc.
(2) Construction: 7*7; 6*7+WSC; 6*7+FC
(3) Diameter: 0.8/1.0/1.2/1.5/1.6/1.8/2.0/2.5/3.0/4/5mm & 1/32" 3/64" 3/32" 1/8" 3/16" etc.
(4) Tensile Strength: 1570N/mm2; 1670N/mm2; 1770N/mm2; 1870N/mm2

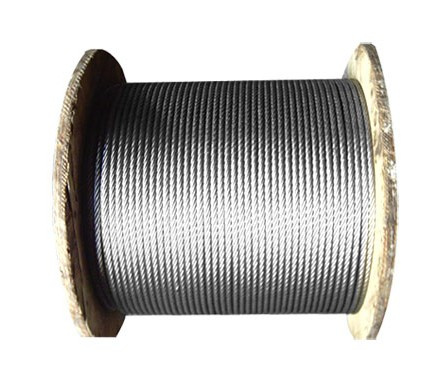

(5) Packing: 200m/plastic reel; 1000m/reel; 2000m/reel or as the customer requests
(6) The wire rope can be coated by PVC & NylonOthers: Technical Standard: GB/T9944-2015.
FOR YOUR REFERENCE:7*7| Material | Diameter
(mm) | Lay pitch
(mm) | Weight
(kg/100M) | T.S.
(N/mm2) | M.B.L.
(KN) |
| 304/316 | 0.45 | 2.7 | 0.08 | 1960 | 0.138 |
| 304/316 | 0.5 | 3 | 0.10 | 1960 | 0.171 |
| 304/316 | 0.6 | 3.6 | 0.14 | 1960 | 0.246 |
| 304/316 | 0.8 | 4.8 | 0.26 | 1870 | 0.418 |
| 304/316 | 1.0 | 6 | 0.40 | 1870 | 0.65 |
| 201/304/316 | 1.2 | 7.2 | 0.58 | 1870 | 0.94 |
| 201/304/316 | 1.5 | 9 | 0.91 | 1870 | 1.47 |
| 201/304/316 | 2.0 | 12 | 1.62 | 1770 | 2.47 |
| 201/304/316 | 3.0 | 18 | 3.64 | 1770 | 5.57 |
| 201/304/316 | 4.0 | 24 | 6.48 | 1770 | 9.91 |
| 201/304/316 | 5.0 | 30 | 10.1 | 1770 | 15.4 |
| 201/304/316 | 6.0 | 36 | 14.5 | 1770 | 22.3 |
| 201/304/316 | 8.0 | 48 | 25.9 | 1670 | 37.4 |
| 201/304/316 | 10.0 | 60 | 40.5 | 1670 | 58.4 |
| 304/316 | 12.0 | 72 | 58.3 | 1670 | 84.1 |
| 304/316 | 14.0 | 84 | 79.3 | 1570 | 107.7 |
| 304/316 | 16.0 | 96 | 103.6 | 1570 | 140.6 |
| 304/316 | 18.0 | 108 | 131.2 | 1470 | 166.6 |
| 304/316 | 20.0 | 120 | 162.0 | 1470 | 205.8 |
| 304/316 | 22.0 | 132 | 196.0 | 1470 | 249.0 |
| 304/316 | 24.0 | 144 | 233.2 | 1470 | 296.3 |
| 304/316 | 26.0 | 156 | 273.7 | 1370 | 324.1 |
| 304/316 | 28.0 | 168 | 317.5 | 1370 | 375.9 |
| Nominal Diameter of the Rope(mm) | Approx .WT.of the rope kg/100m | Nominal Tensile Strength of the Rope (Mpa) |
| 1470 | 1570 | 1670 | 1770 | 1870 |
Minimum Breaking load of Rope (KN) |
| Dia. | Tolerance | NFC | SF | WC | FC | WC | FC | WC | FC | WC | FC | WC | FC | WC |
| mm | % | Kg/100m | KN |
| 0.45 | +90 | 0.074 | 0.073 | 0.082 | 0.096 | 0.112 | 0.103 | 0.120 | 0.110 | 0.128 | 0.116 | 0.136 | 0.123 | 0.143 |
| 0.50 | 0.092 | 0.090 | 0.102 | 0.119 | 0.139 | 0.127 | 0.149 | 0.135 | 0.158 | 0.144 | 0.168 | 0.152 | 0.177 |
| 0.60 | 0.133 | 0.130 | 0.146 | 0.172 | 0.201 | 0.184 | 0.214 | 0.195 | 0.228 | 0.207 | 0.242 | 0.219 | 0.255 |
| 0.70 | 0.180 | 0.176 | 0.199 | 0.234 | 0.273 | 0.250 | 0.292 | 0.266 | 0.310 | 0.282 | 0.329 | 0.298 | 0.348 |
| 0.80 | 0.235 | 0.230 | 0.260 | 0.306 | 0.357 | 0.327 | 0.381 | 0.348 | 0.406 | 0.368 | 0.430 | 0.389 | 0.454 |
| 1.0 | +85 | 0.367 | 0.360 | 0.406 | 0.478 | 0.558 | 0.511 | 0.596 | 0.543 | 0.634 | 0.576 | 0.672 | 0.608 | 0.710 |
| 1.2 | 0.528 | 0.518 | 0.585 | 0.689 | 0.804 | 0.736 | 0.858 | 0.783 | 0.913 | 0.829 | 0.968 | 0.876 | 1.020 |
| 1.5 | 0.826 | 0.810 | 0.913 | 1.07 | 1.25 | 1.15 | 1.34 | 1.22 | 1.42 | 1.29 | 1.51 | 1.37 | 1.59 |
| 1.8 | 1.189 | 1.166 | 1.315 | 1.55 | 1.80 | 1.65 | 1.93 | 1.76 | 2.05 | 1.86 | 2.17 | 1.97 | 2.30 |
| 2.0 | +80 | 1.47 | 1.44 | 1.62 | 1.95 | 2.11 | 2.08 | 2.25 | 2.21 | 2.39 | 2.35 | 2.54 | 2.48 | 2.68 |
| 3.0 | 3.30 | 3.24 | 3.65 | 4.39 | 4.74 | 4.69 | 5.07 | 4.98 | 5.39 | 5.28 | 5.71 | 5.58 | 6.04 |
| 4.0 | +70 | 5.88 | 5.76 | 6.50 | 7.80 | 8.44 | 8.33 | 9.01 | 8.87 | 9.59 | 9.40 | 10.1 | 9.93 | 10.7 |
| 5.0 | 9.18 | 9.00 | 10.15 | 12.2 | 13.1 | 13.0 | 14.0 | 13.8 | 14.9 | 14.6 | 15.8 | 15.5 | 16.7 |
| 6.0 | +60 | 13.22 | 12.96 | 14.62 | 17.5 | 18.9 | 18.7 | 20.2 | 19.9 | 21.5 | 21.1 | 22.8 | 22.3 | 24.1 |
| 8.0 | 23.50 | 23.04 | 25.98 | 31.2 | 33.7 | 33.3 | 36.0 | 35.4 | 38.3 | 37.6 | 40.6 | 39.7 | 42.9 |
| 10.0 | 36.72 | 36.00 | 40.60 | 48.8 | 52.7 | 52.1 | 56.3 | 55.4 | 59.9 | 58.7 | 63.5 | 62.0 | 67.1 |
| 12.0 | 52.88 | 51.84 | 58.46 | 70.2 | 75.9 | 75.0 | 81.1 | 79.8 | 86.3 | 84.6 | 91.5 | 89.4 | 96.6 |
| 14.0 | 71.97 | 70.56 | 79.58 | 95.6 | 103.0 | 102.0 | 110.0 | 108.0 | 117.0 | 115.0 | 124.0 | 121.0 | 131.0 |
| 16.0 | 94 | 92.16 | 103.9 | 124.0 | 135.0 | 133.0 | 144.0 | 141.0 | 153.0 | 150.0 | 162.0 | 158.0 | 171.0 |
* Price terms: FOB Shanghai, or CIF&CNF discharging port.
* Packing: plastic reel or plywood reel; then onto pallet or into crate.
* Payment: 30% T/T deposit, 70% T/T against copy of B/L.
* Shipment: by sea; by airway or by courrier; it depends on quantity & urgency of the customer's order.
* Mill Test Certificate issued by our factory will be provided if needed; Third Part Inspection is acceptable.
| Prod Model: |
7*7-1.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spec.: |
304 7*19 1.5 2.0 2.5 |
| Type: |
Brake System |
| Material: |
Steel |
| Certification: |
SGS |
Xinghua Kailong Stainless Steel Products Co., Ltd. is professionally engaged in stainless steel wire rope design and manufacture. The monthly output is nearly 120 tons, which makes kailong's annual sales figure exceed USD 6 million.
We have exported wire ropes more than 10 years and our markets cover Italy, Germany, Spain, Australia, Argentina, South Korea, India and some other Asian countries. Our wire ropes are used widely in automotive cable industry, fishing industry, oil industry, decoration, and many other industries. With strict quality control, timely delivery and prompt reply, we will be your trusted supplier.
Our strength & brief as below:
1. Founded in 2006, with 11, 000 SQM production area.
2. Products Scope:
Stainless steel wire;
Stainless steel wire rope;
Wire rope slings;
Rigging hardware;
Stainless steel link chain.
3. Top supplier in realm of Lifting Solution in China.
4. Service covers design, manufacture and OEM.
5. Total assets is over USD 5 million.
6. One of biggest stainless steel wire rope manufacturer in southeast China.
7. ISO9001: 2008 certificated.
8. Exported to more than 20 countries, with more than 4, 000 tons.
We also supply wire rope accessories, such as clips, shackles, turnbuckles, link chains etc.
