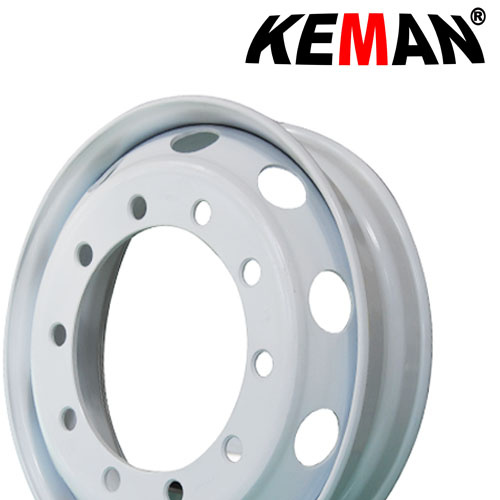

Steel Wheel
| Price: |
US $ 17-40/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
30/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
22.5*8.25/22.5*9.00/22.5*11.75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.25X22.5 |
| Material: |
Steel |
| Type: |
Rim |
| Drive Wheel: |
4WD |
| Wheel Accessories: |
Wheel Spoke |
| Certification: |
TUV |
| Wheel Hub Diameter: |
21-24" |
| Finishing: |
Chrome |
| Spoke Type: |
Equal Diameter Spoke |
| Wheel Hub Brand: |
Keman |
Product Description
Steel rim, steel wheel, truck wheel, truck rim, tubeless steel, wheel
Supplying high quality truck rims/steel wheels with good price.
Available size:
17.5X6.00 17.5X6.75 19.5X6.00 19.5X6.75 19.5X7.50 22.5X6.75 22.5X7.50 22.5X8.25 22.5X9.00 22.5X9.75 22.5X11.75 22.5X13.00 22.5X14.00 24.5X7.50 24.5X8.25 24.5X9.00
DEMOUNTABLE: 22.5X8.25 22.5X9.00 24.5X9.00
Using for: Bus, heavy duty truck, light duty truck
March for tires size: 11R22.5 11R24.5 285/75R24.5 295/75R22.5 295/80R22.5 315/80R22.5 385/65R22.5 425/65R22.5 etc.
Coating type: E-coating, Powder, Hot-galv| 22.5x11.75 |
| NO. | bolt hole | bolt dia | PCD | Center hole | rim (mm) | disc(mm) | bolt hole type | offset | weight | tyre |
| 1 | 8 | φ32 | φ275 | φ214 | 7 | 14 | SR22 | 120 | 51.7 | 15R22.5, 385/65R22.5 |
| 2 | 8 | φ24 | φ275 | φ221 | 7 | 14 | straight | 120 |
|
| 3 | 8 | φ32 | φ285 | φ221 | 7 | 14 | SR22 | 120 |
|
| 4 | 10 | φ26 | φ285.75 | φ220 | 7 | 14 | straight | 120 | 51 |
| 5 | 10 | φ32 | φ285.75 | φ222 | 7 | 14 | SR22 | 120 |
|
| 6 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 120 | 49.1 |
| 7 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 0 | 49.1 |
| 8 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 0 | 49 |
| 9 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 120 | 49 |
| 10 | 10 | φ26 | φ335 | φ281 | 7 | 12 | straight | 0 | 44.7 | 20vent hole |
| 11 | 10 | φ27 | φ335 | φ281 | 7 | 12 | SR18 | 0 | 44.6 | 20 vent hole |
| 12 | 10 | φ26 | φ335 | φ281 | 7 | 12 | straight | 0 | 44.7 | valve in the well bottom |
| 13 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 0 |
| valve in the well bottom |
| 14 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 120 |
| vavel in the flat rim |
| 22.5x13.00 |
| 1 | 10 | φ26 | φ335 | φ281 | 7 | 16 | straight | 75 |
|
|
| 2 | 10 | φ26 | φ335 | φ281 | 7 | 16 | straight | 0 |
|
|
| 3 | 10 | φ27 | φ335 | φ281 | 7 | 16 | SR18 | 0 |
|
| 22.5X14.00 |
| 1 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 0 |
|
|
| 2 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 0 |
|
|
| 24.5x7.50 |
| NO. | bolt hole | bolt dia | PCD | Center hole | rim (mm) | disc(mm) | bolt hole type | offset | weight | tyre |
| 78 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 165 | 47.3 |
|
| 79 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 165 | 47.2 |
| 24.5x8.25 |
| NO. | bolt hole | bolt dia | PCD | Center hole | rim (mm) | disc(mm) | bolt hole type | offset | weight | tyre |
| 80 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 168 | 50.2 | 11R24.5,285/75R24.5 |
| 81 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 168 | 50.1 |
| 82 | 10 | φ32 | φ285.75 | φ222 | 6 | 11 | SR22 | 168 |
|
| 24.5x9.00 |
| NO. | bolt hole | bolt dia | PCD | Center hole | rim (mm) | disc(mm) | bolt hole type | offset | weight | tyre |
| 83 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 175 | 52.6 |
|
| 84 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 175 | 52.5 |
| DEMOUNTABLE |
| NO. | Demountalbe type | center hole | high |
|
|
|
|
| tyre |
| 85 | American type |
| 22.5x8.25 |
|
|
|
|
|
|
| 86 | Australia type |
| 22.5x9.00 |
|
|
|
|
|
| 87 | Europe type |
| 22.5x9.00 |
|
|
|
|
|
| 88 | Paraguay type |
| 24.5x9.00 |
|
|
|
|
|

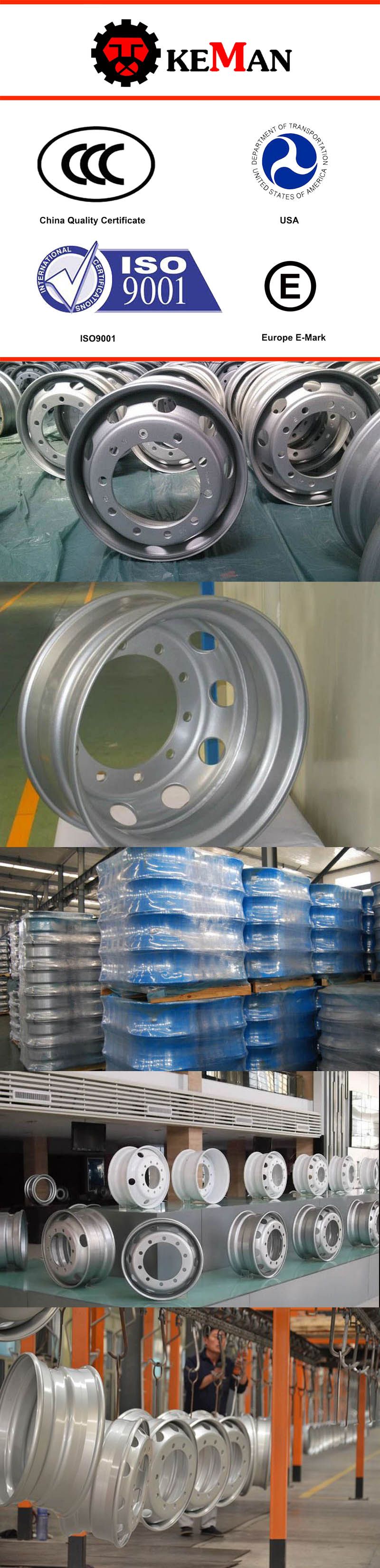

Keman commits itself to be a professional and competitive tyre company.
It invests in the top of the range research and production equipments from Netherlands, Germany,
Italy, United State and Japan. The company also implements advanced technology for its tyre
Production and management. The company dedicates itself in research and development,
Manufacturing facilities, as well as the sales and marketing. The company believes in its customers
And takes the after sales service very seriously. Customers'satisfaction is its most important goal.
The company has passed CCC(China), EMARK(Europe), DOT(USA), GCC(Mideast), ISO9001,
ISO/TS16949: 2002, ISO14001: 2004, G/T28001-2001 certification.
The company's mission is to bring high-quality and competitive products to our customers with Integrity, Honesty and Creativity through extensive planning and teamwork.
