Stationary Hydraulic Scissor Design Garage Car Elevator
| Price: |
US $ 3500-8000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SJG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
3000kg |
| Platform Size: |
5000*2500mm |
| Lifting Height: |
Customized |
| Drive: |
Hydraulic |
| Power: |
5.5KW |
| Speed: |
6m/Min |
| Structure: |
Scissor Type |
| Installation: |
Pit-Installation |
| Control: |
Button/Remote Control |
| Warranty: |
12 Months |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
CE |
| Design: |
Scissor |
| Brand: |
Moral |
Product Description
Stationary Hydraulic Scissor Design Garage Car Elevator
Main Features:1) The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
2) The limit switch system ensure the lift to stop at accurate position.
3) Hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4) Control system adopt elevator control system,very convenient and safety.
5) Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.
6) Emergency Descending: When there is no power or malfunctions, manually descend the device.
7) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.Advantages:Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.The main parts:Platform: Checked steel plate reinforced by high strength channel steel.
Scissor structure: Manganese steel rectangular tube, I-iron sealed by steel plate, or Manganese steel plate.
Control apparatus Brand Dexill, Siemens or Schneider.
Pump station: Brand Italy Hydrappp or homemade brands.
Bearing: SF-self lubricating bearing
Hydro cylinder: Both way high precision wear-resisting hydrocylinder with locking device for fall protection.
Hydraulic Pipe: High pressure pipe with double expanded metal protected.
Hydraulic Oil: 32# anti-wear hydraulic oil. ( according to the local temperature).
Obturating ring: Brand German Seal (made in German) or Valqua Seal (imported from Japan)Applications:It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck; It is installed in the pit or the ground floor to convey the goods from one working level to another.
The control panels are available at the designated floors and one the lift platforms.Loading capacity:Lifting height: 1.65-20m; Load capacity: 0.1-150t (custom-made)Warranty:12 months from delivery apart from artificial damage. Free lifelong technical service. | Model | SJG3-5 |
| Lifting capacity | 3000kg |
| Lifting height | 5000mm |
| Platform size |
5000 X 2500 mms.
( Diamond steel sheet metal ) |
Motor power | 5.5kw |
| Power supply | AC 220V/380V 50HZ/60HZ |
| Speed | 100mm/s |
| Weight | 1850KG |

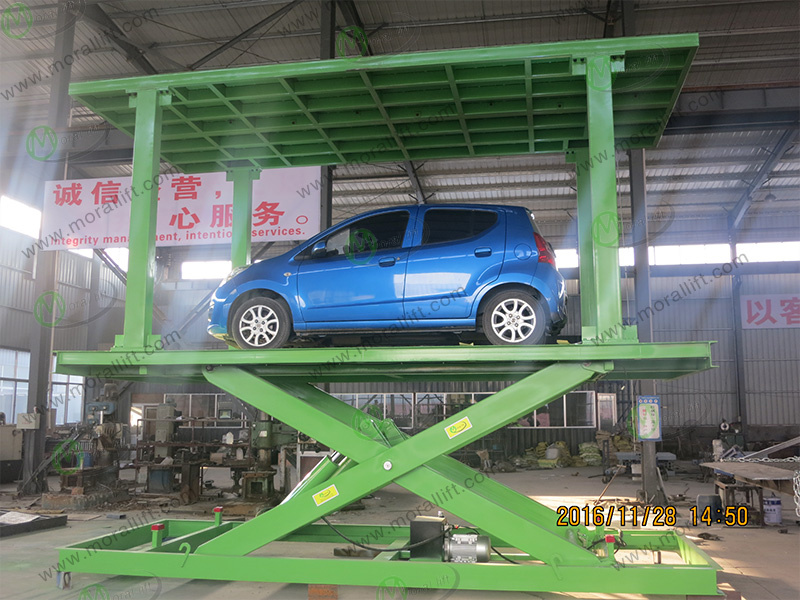

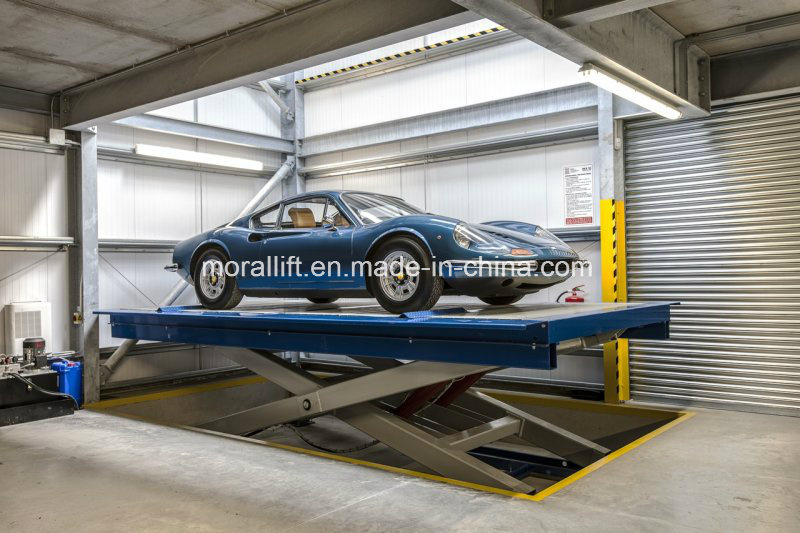

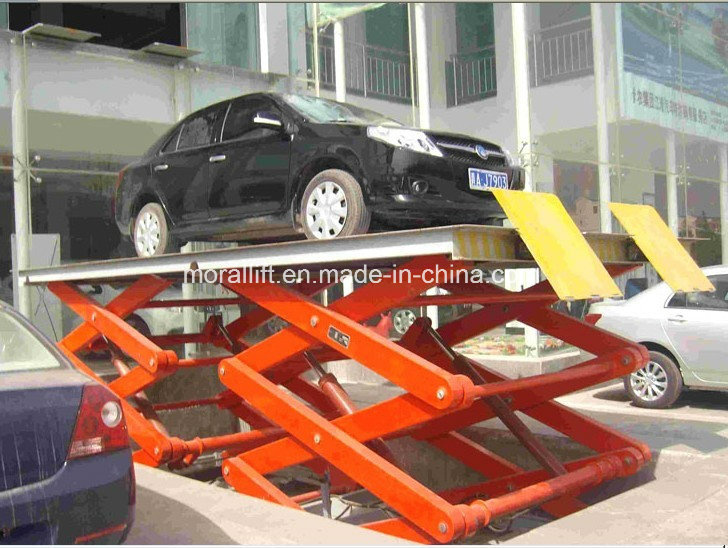

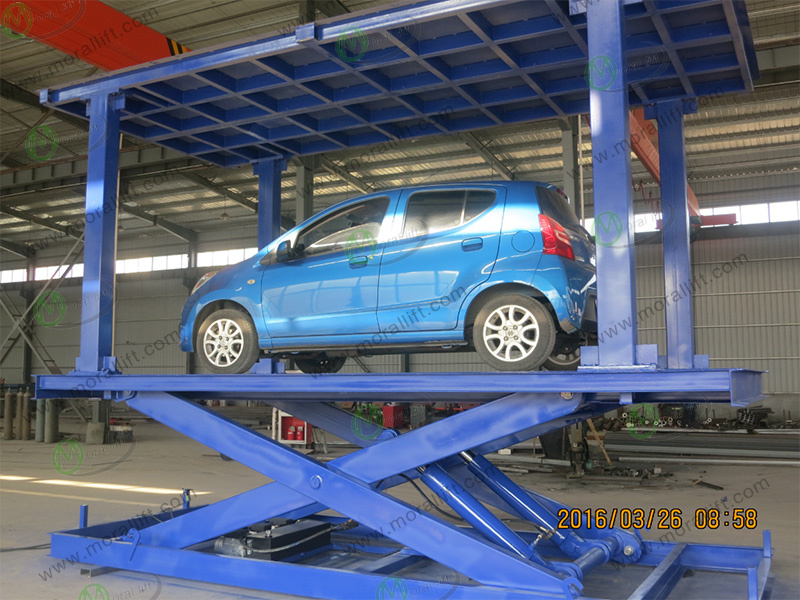

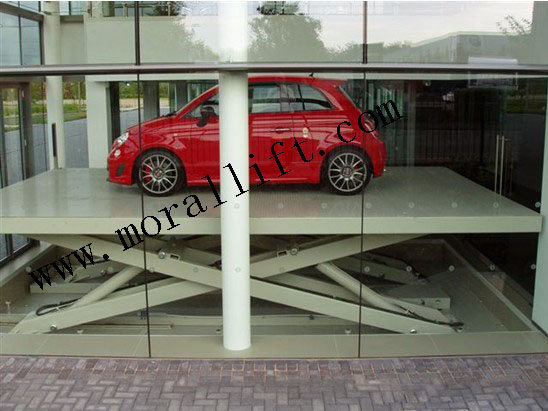

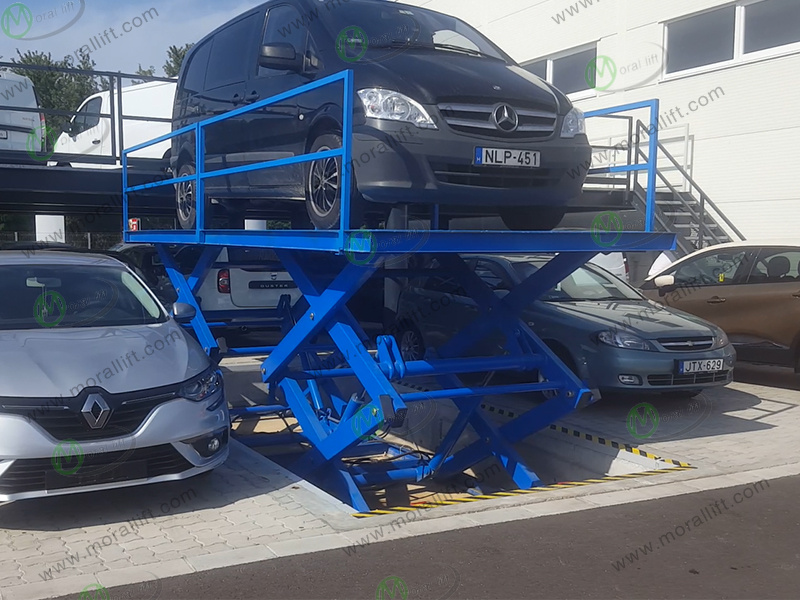

Pictures:
