Starter Grar Wai: 54-8241

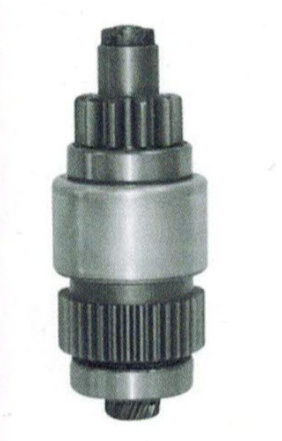

Name: Starter Grar Wai: 54-8241
Brand: ibuyautoparts.com
SKU: 694961272
Availability: InStock
Rating: 4.7 (44 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

OEM NO
54-8241
132942
028300-4550
028300-4551
28011-54010
28300-2011
28300-2012
Application
For: Nippondenso 3.0kW, 4.5kW, 5.5kW OSGR Starters
Used On: (1991-81) Chevrolet, GMC, Toyota; Isuzu Truck, Toyota Lift Truck
Unit Nos: Nippondenso 028000-530, -549, -553, -555, -556, -557, -586, -620, -634, -656, -664, -687, -688, -724, -781, -807, -849, -884, -977; 128000-049, -097, -100, -157, -245, -247, -274, -410, -509, -530, -551, -760, -775; 228000-371
Lester Nos: 16614, 16830, 16881, 16896, 16967, 17286, 17292, 17301, 17302, 17304, 17306, 17311, 17313, 17376, 18155, 18156, 18181, 18190
WAI Ref. Nos: 2-1037-ND, 2-1730-ND, 2-1745-ND, 2-1753-ND, 2-1754-ND, 2-2104-ND, 2-2105-ND, 2-2106-ND
Dim: 40.7mm Gear OD, 146.5mm L
Components:
54-82212 Pinion
54-82400 Clutch Assy.
54-82600 Shaft Spring
76-82811 Retaining Ring
76-82813 Stop Collar
Features:
- Best Value

specification
WAI No	No Of Teeth	Rotation	Length(mm)	Pinion O.D.(mm)	No OF Splines	Pinion I.D.(mm)	Drive O.D.(mm)
WAI:54-8241	11	CW	146.5	40.7	16		57

Prod Model:	TLA---Starter Gear Series---026
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
